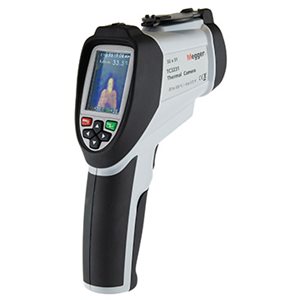

Megger TC3231 Thermal Imaging Camera in a case 9Hz

Megger TC3231 Thermal Imaging Camera in a case 9Hz

The Megger TC3231 offers a professional infrared 32 x 31 pixels image thermometer with a 2.2 inch (55.88 mm) colour TFT LCD display.

Quick, accurate readings are possible; covering a wide range of surface temperature measurements. The product combines the convenience of an infrared thermometer with the visual advantage of a thermal imager providing a troubleshooting camera with infrared heat map. The TC3231 features a range of selectable thermal image colour palette display options along with high / low user preset temperature alarms.

For convenience, background temperature is also user selectable.

Features:

• Combined infrared imaging camera and infrared thermometer
• Ideal for basic troubleshooting and qualitative hot/ cold spot detection
• Detect faulty electrical components
• Identify exposed blocked pipes
• FOV: 38° x 38°
• Fixed focus
• Automatic level and span
• Frame rate: 9Hz
• Thermal sensitivity (NETD): ≤150mK
• Temperature range: -20°C to +300°C
• IR resolution: 31 x 32px
• 992 measurement points
• Compensates for reflected temperature
• Provides on-screen emissivity correction
• View centre-spot temperature
• Programmable temperature alarms
• Visual camera
• Digital images can be overlaid onto thermal images to enhance details
• Date/ time setup controls
• Save up to 6000 images to the microSD card
• Download pictures to a PC as .BMP files
• USB interface for downloading and charging
• Li-Ion battery
• Auto Power Off: switches the IR imager off after ten minutes of inactivity
• Provides a simple, efficient and effective solution to troubleshooting and hot and cold spot tracking

Included Items:

• USB Mains Charger
• Charger Adapters (UK, Schuko, US, AUS)
• USB Lead
• MicroSD Card
• SD Card Adapter
