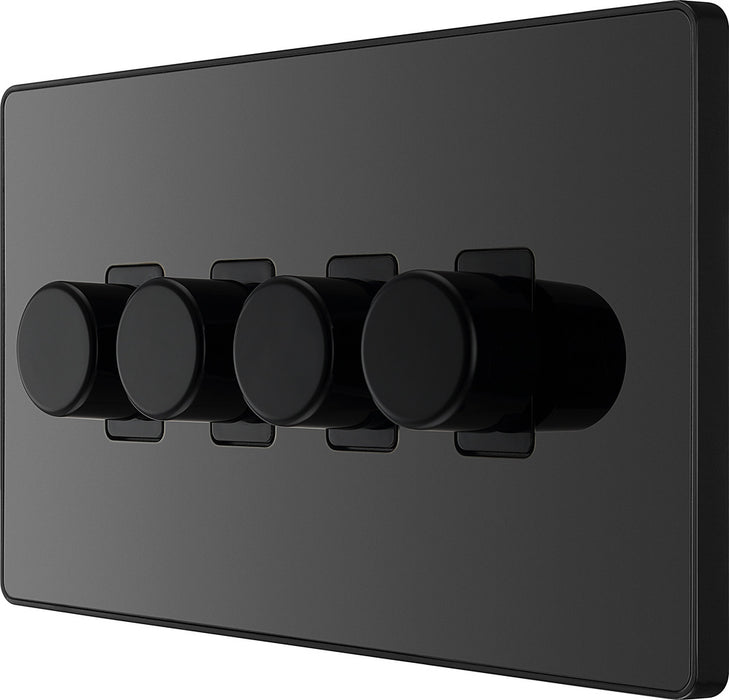

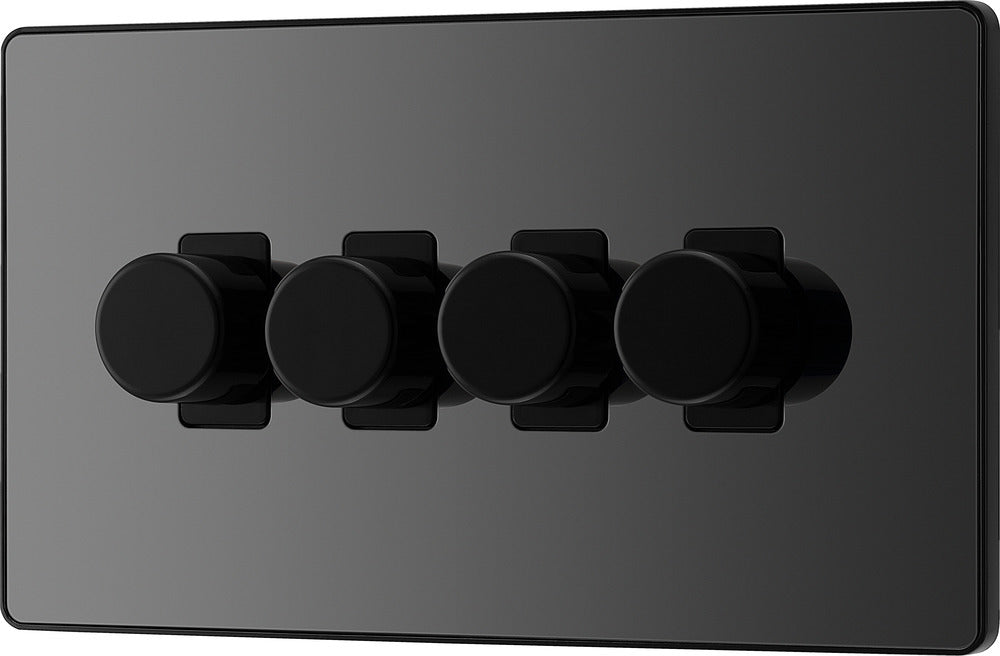

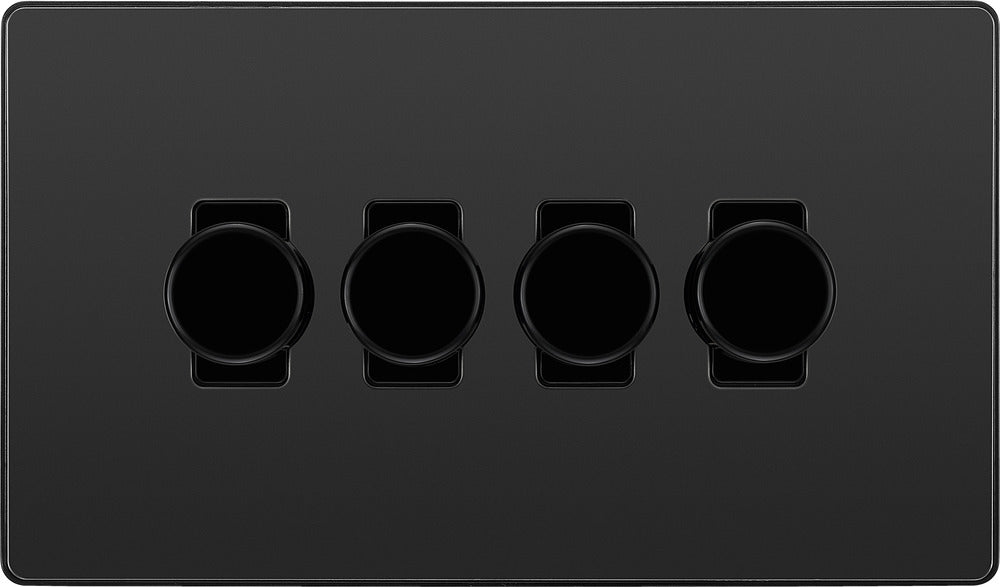

BG Evolve PCDBC84B 2-Way Trailing Edge LED 200W Quadruple Dimmer Switch Push On/Off - Black Chrome (Black)

E V O L V E - A new generation of decorative modern wiring devices, available in the latest colours and finishes.

These modern and stylish switches and sockets are the latest addition to the BG Decorative Wiring Accessory portfolio. Designed with a slim, screwless profile, this comprehensive range offers a complete solution for any domestic or commercial application.

The latest innovations from BG, including fast charging TYPE-C USB wall socket, LED touch dimmers and WiFi extenders, are all included in a range that offers the widest range of colours and finishes available.

BG Evolve Screwless is available in following finishes

1. Black Chrome
2. Brushed Steel
3. Pearlescent White
4. Polished Copper
5. Matt Black
6. Matt Blue
7. Matt Grey
8. Satin Brass

This item is Quadruple Dimmer

• Frame & Module Colour - Black
• Intelligent trailing edge dimmer suitable for LED, halogen, CFL and incandescent lamps
• Soft start, smooth dimming control and silent operation
• 2 Way push on/off with rotary control
• Overload protection will turn the lights down or off until the load is corrected

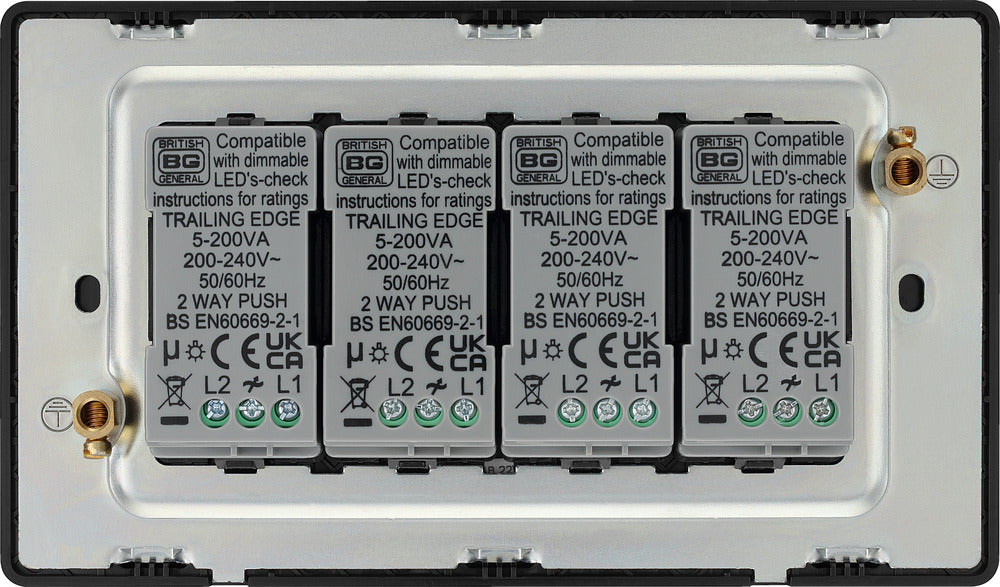

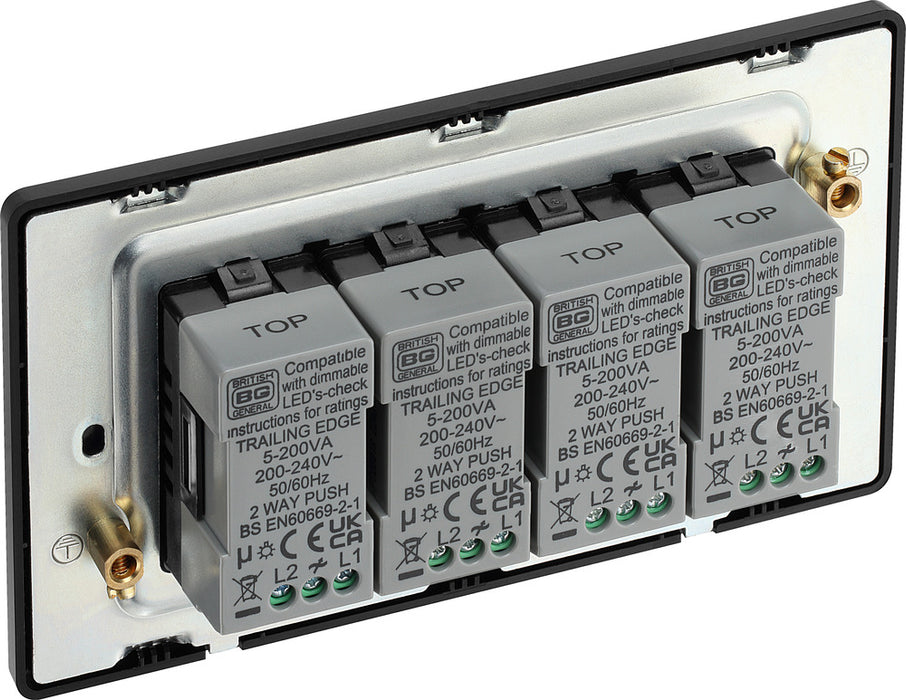

• Clearly marked terminals with backed out captive screws for easy installation
• Manufactured to BS EN 60669-2-1
• Terminal capacity 3x1.0mm², 2x1.5mm² & 1x2.5mm²

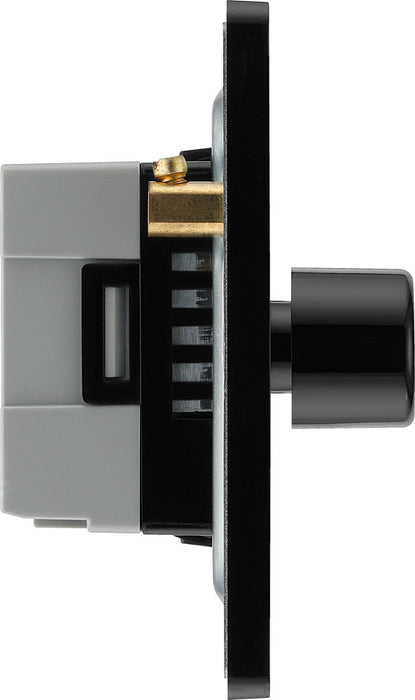

• Minimum mounting box depth - 25mm

Load Rating (Max/Min per module)

• Dimmable LED 5-100W
• Tungsten/Incandescent 5-200W
• Halogen 20-200W
• Dimmable Compact Fluorescent (CFL) 5-100W
