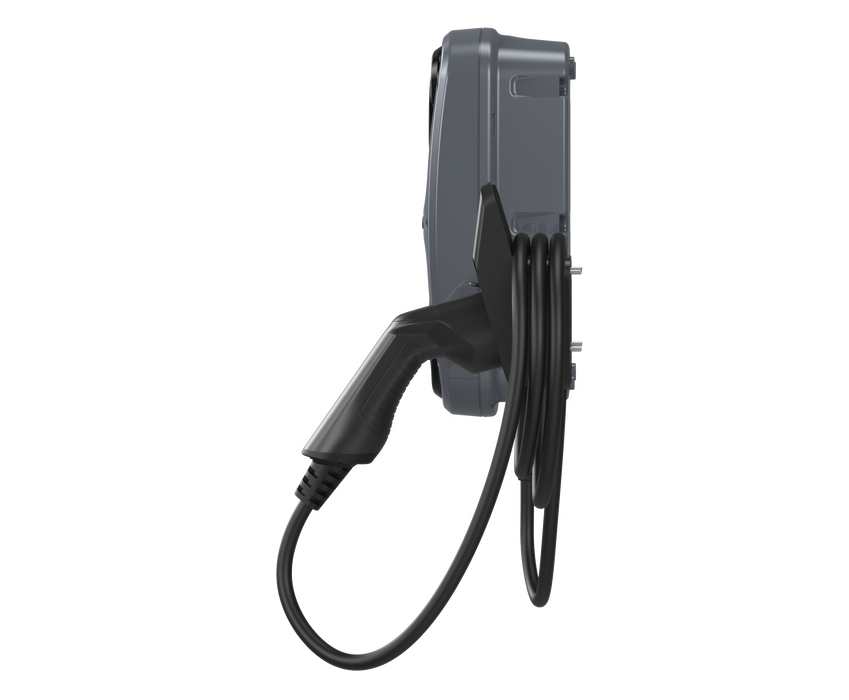

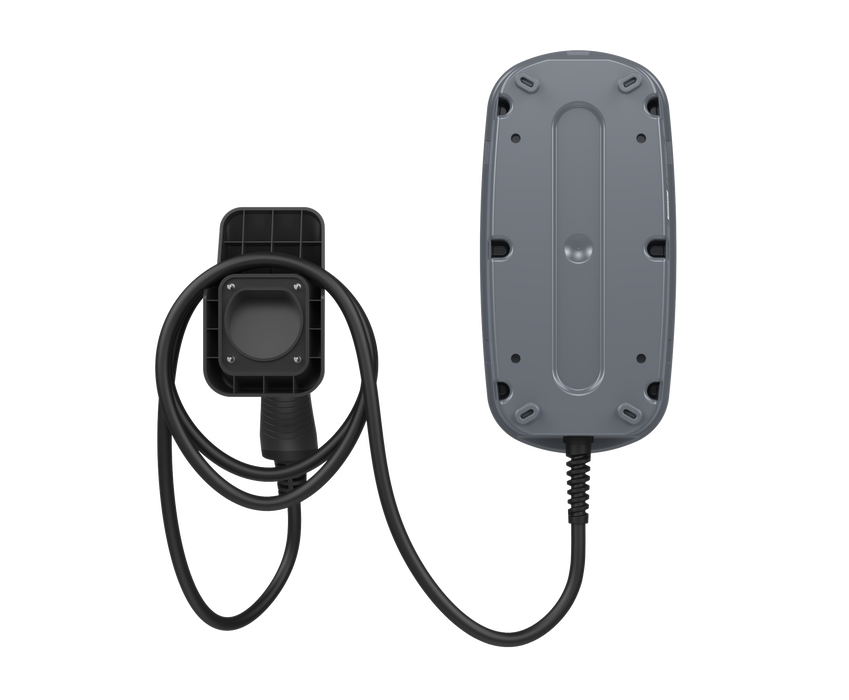

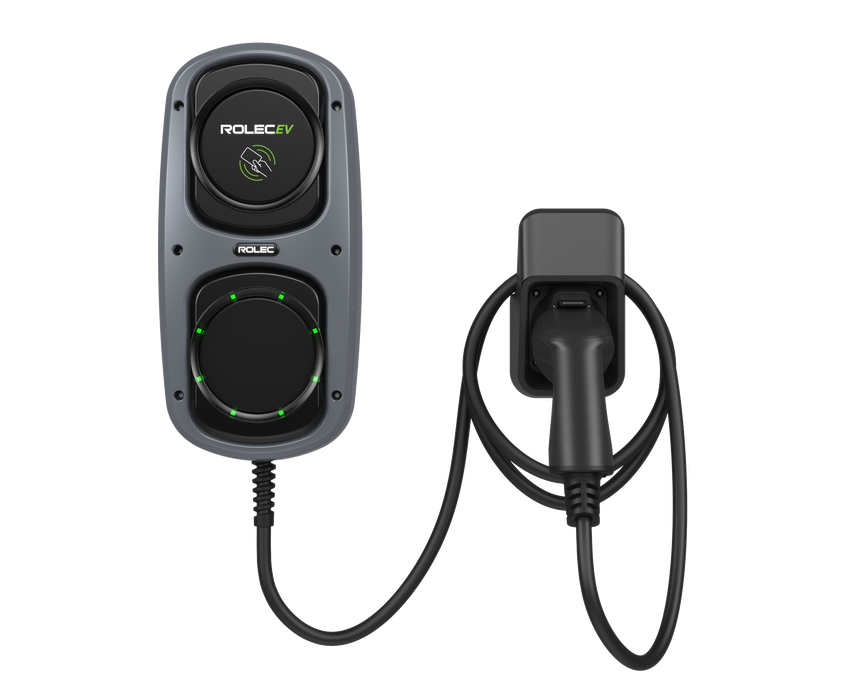

Rolec ROLEC4145G WallPod Smart EV Charger - up to 7.4kw Type 2 10m Tethered - Grey

Rolec ROLEC4145G WallPod Smart EV Charger - up to 7.4kw Type 2 10m Tethered - Grey

The WALLPOD is an affordable and reliable EV charging unit, which is ideal for both domestic and commercial locations, providing up to 7.4kW fast charging.

This future-proof OCPP compliant unit can offer a simple plug & charge or pay-to-charge solution via the EV driver’s smartphone and/or RFID card/fob through any chosen OCPP back-office management system.

Feature-rich, this EV charger supports dynamic load balancing and is equipped with PME fault detection, so there is no requirement for an earth rod, reducing installation costs.

Domestic users can also charge their vehicle as sustainably as possible using their solar PV or other home renewables for a zero-cost, zero-carbon charge.*

*App dependent feature

UP TO 7.4KW - This single phase charger provides up to 7.4kW fast charging.WALLPOD is compatible with all EVs & PHEVs, charging at the fastest speed possible, ensuring vehicles are ready to go in no time.

CHARGE FOR FREE! - Sync your solar PV, battery storage or wind turbine setup to benefit from sustainable, zero-cost, zero-carbon charging. Smart home integration is also supported, so you can control your charger using Alexa or Google assistant.*

ACCURATE BILLING - Built-in MID-approved energy metering ensures accurate consumption reporting, which is essential for businesses and residential car parks, wishing to bill for their usage. Use our back-office management platform to generate revenue by setting your own tariffs.

SAFE AND SECURE - Rest assured, Rolec’s entire EV chargepoint range meets the currently required safety and security standards. Over-the-air updates allow the chargers to receive the very latest features, ensuring a safe and future-proof product 24/7.

3 YEAR WARRANTY - Rolec EV chargepoints are designed, developed and manufactured in the UK and come with a 3 year warranty included as standard, for added peace of mind on your investment.

Features:

• Suitable for both domestic and commercial installations

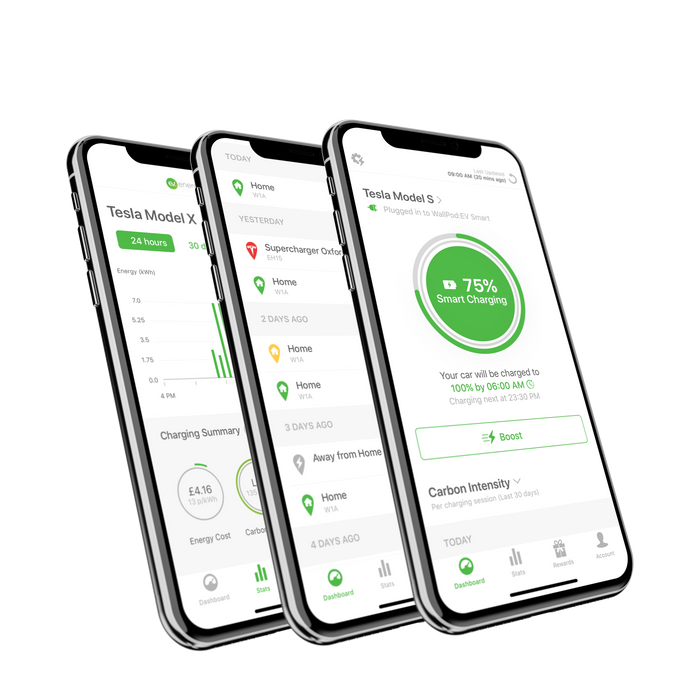

• Plug & charge, mobile app or RFID controlled charging
• Type 2 tethered lead
• Up to 7.4kW charging output
• TruePEN PME fault detection (no earth rod required)
• Dynamic load balancing (CT clamp & cable included)
• Solar PV, battery storage or wind turbine integration*
• Alexa & Google assistant compatible*
• OCPP 1.6 compliant (Can integrate with any back-office)
• Over-the-air firmware / software updates
• Built-in over current & 6mA DC leakage protection
• Cable lock security feature (can be permanently locked by user)
• Integrated RFID reader
• MID-approved energy metering
• 4G / Wi-Fi / Ethernet connectivity
• IK10 impact resistant design
• Wall or post mounted
• OZEV grant fundable
• Designed & manufactured in the UK

Specifications:

• Connection Type: 1x Type 2 (IEC 62196) 10m tethered lead
• Charging Output: Up to 7.4kW (32A)
• Input Supply: 1x 32A Single Phase 230V AC (±10 %) 50/60Hz
• Colour: Grey
