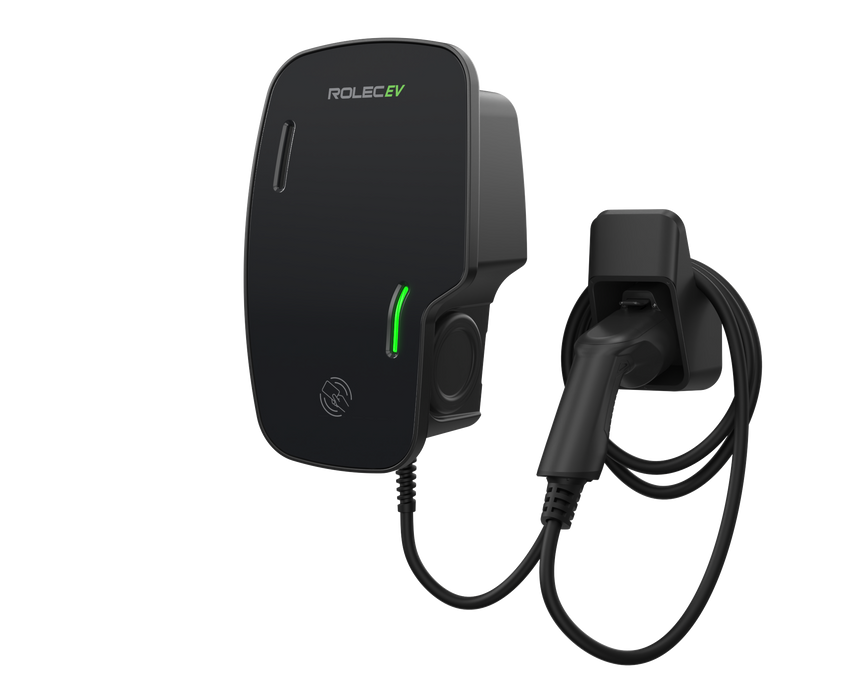

Rolec ROLEC3140B Zura Smart EV Charger - 1 x up to 7.4kw Type 2 5m Tethered - Black

Rolec ROLEC3140B Zura Smart EV Charger - 1 x up to 7.4kw Type 2 5m Tethered - Black

Versatile, sophisticated and packed with the most-wanted smart features, along with never-seen-before customisable aesthetics. ZURA has been designed for both homes and businesses, providing up to 22kW superfast charging.

This OCPP compliant unit offers plug & charge or pay-to-charge solutions via a mobile app or RFID operation through any OCPP back-office management system.

This EV charger supports dynamic load balancing and is equipped with PME fault detection, with no requirement for an earth rod, reducing installation costs.

Available with single or dual outlets, making it ideal for businesses and households with more than one EV, or that are looking to future-proof. Domestic users can also charge using their solar PV or other home renewables for a zero-cost, zero-carbon charge.*

*App dependent feature

UP TO 22KW - Available in both single phase and three phase models, providing up to 22kW superfast charging. Choose from single or dual outlet models, allowing two vehicles to charge simultaneously. Single outlet units can be upgraded to dual in the future.**

CHARGE FOR FREE! - Sync your solar PV, battery storage or wind turbine setup to benefit from sustainable, zero-cost, zero-carbon charging. Smart home integration is also supported, so you can control your charger using Alexa or Google assistant.*

ACCURATE BILLING - Built-in MID-approved energy metering ensures accurate consumption reporting, which is essential for businesses and residential car parks, wishing to bill for their usage. Use our back-office management platform to generate revenue by setting your own tariffs.

SAFE AND SECURE - Rest assured, Rolec’s entire EV chargepoint range meets the currently required safety and security standards. Over-the-air updates allow the chargers to receive the very latest features, ensuring a safe and future-proof product 24/7.

3 YEAR WARRANTY - Rolec EV chargepoints are designed, developed and manufactured in the UK and come with a 3 year warranty included as standard, for added peace of mind on your investment.

Features:

• Suitable for both domestic and commercial installations
• Plug & charge, mobile app or RFID controlled charging
• 1x or 2x universal charging socket(s) or Type 2 tethered lead(s)
• Up to 7.4kW or 22kW charging output(s)
• TruePEN PME fault detection (no earth rod required)
• Dynamic load balancing (CT clamp & cable included)
• Solar PV, battery storage or wind turbine integration*
• Alexa & Google assistant compatible*
• OCPP 1.6 compliant (Can integrate with any back-office)
• Over-the-air firmware / software updates
• Built-in over current & 6mA DC leakage protection
• Cable lock security feature (can be permanently locked by user)
• Integrated RFID reader
• MID-approved energy metering
• 4G / Wi-Fi / Ethernet connectivity
• IK10 impact resistant design
• Independent back plate for easy wall or post mounting
• OZEV grant fundable
• Designed & manufactured in the UK

Specifications:

• Connection Type: 1x Type 2 (IEC 62196) 5m tethered lead
• Charging Output: Up to 7.4kW (32A)
• Input Supply: 1x 32A Single Phase 230V AC (±10 %) 50/60Hz
• Colour: Black

Data Sheet:

Click Here for Data Sheet
