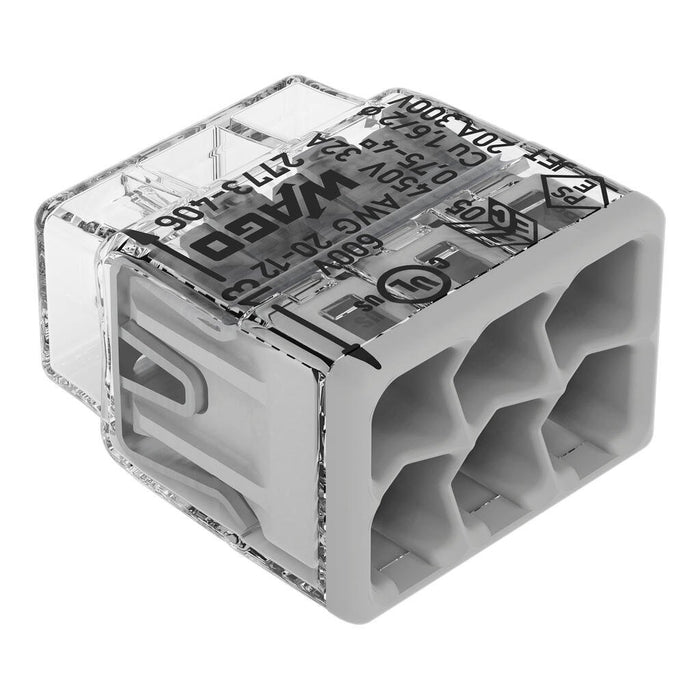

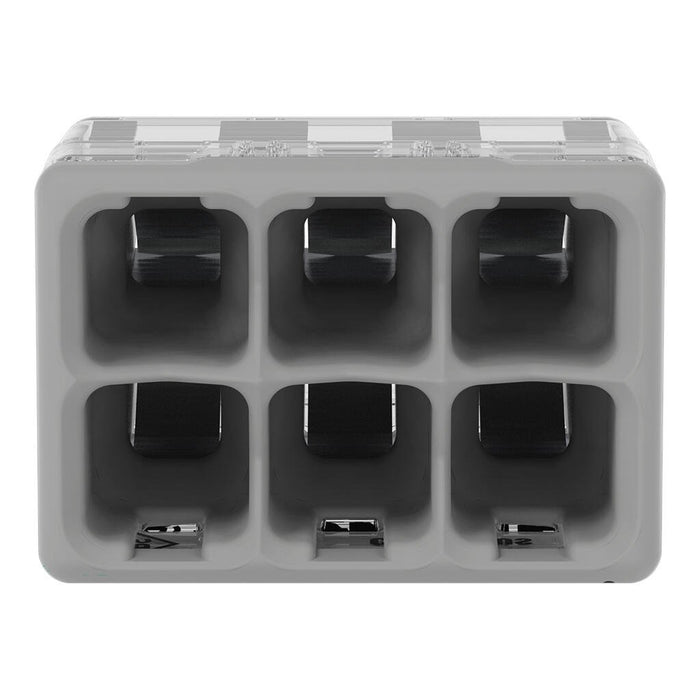

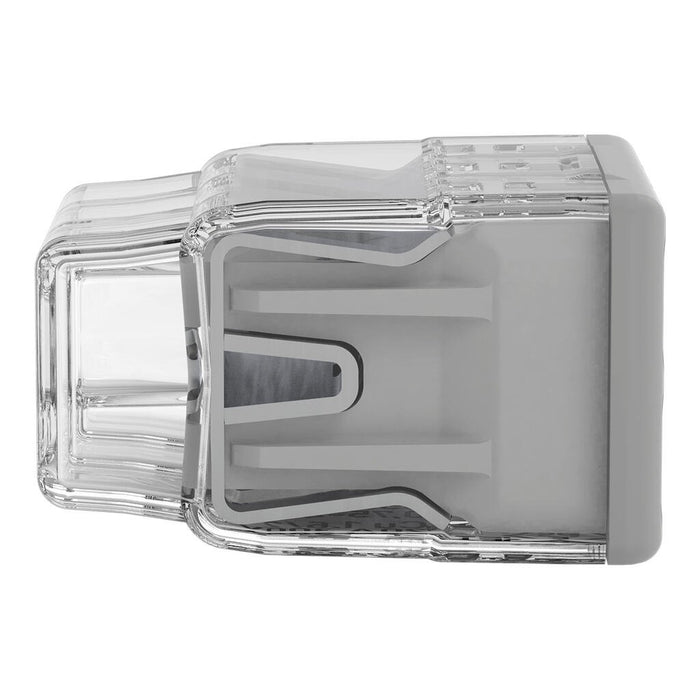

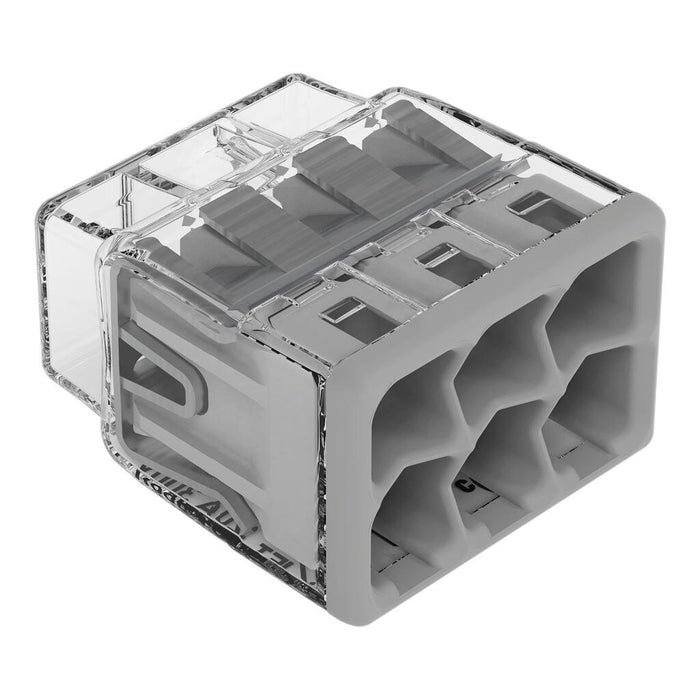

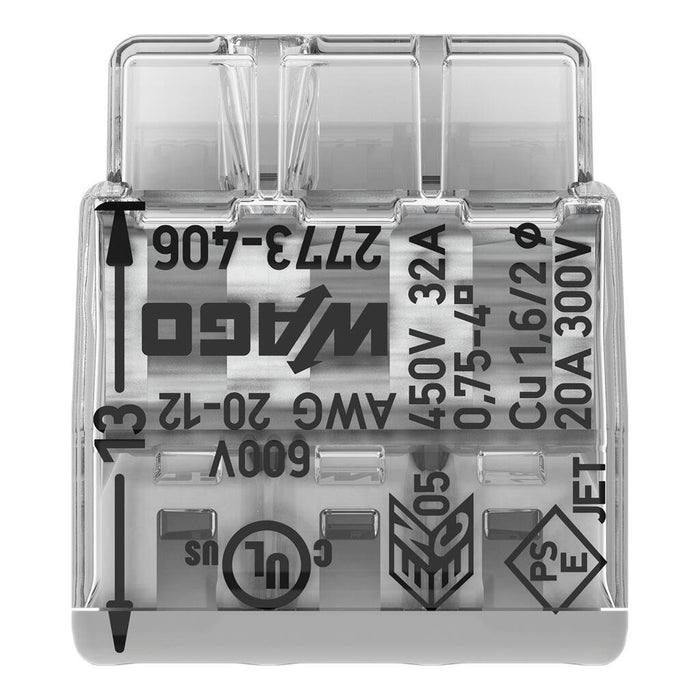

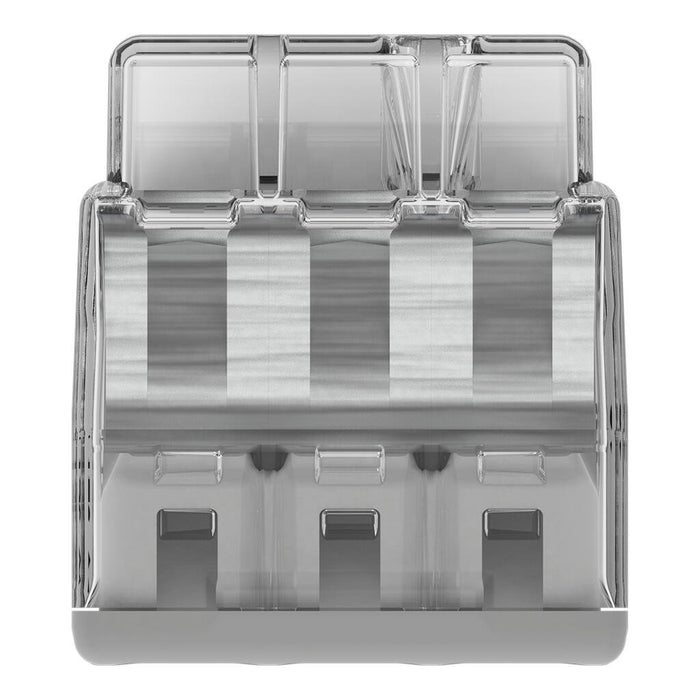

Wago 2773-406 6 Way 4mm² Compact Pushwire Connector Grey (50 Full Box)
Wago 2773-406 6 Way 4mm² Compact Push Wire Connector – Grey (50 Pack)
The Wago 2773-406 6-Way Push Wire Connector is a high-capacity, compact splicing solution designed for fast and reliable electrical connections. As part of the proven Wago 2773 Series, this connector is ideal for use in junction boxes where multiple conductors must be terminated safely and efficiently.
Featuring PUSH WIRE® connection technology, the connector enables quick, tool-free termination of solid and stranded conductors while ensuring consistent contact pressure and long-term reliability. The transparent housing with a grey cover allows easy visual inspection and simple circuit identification in busy installations.
Key Features & Benefits
- 6-way compact splicing connector for junction box installations
- PUSH WIRE® technology for fast, tool-free conductor termination
- Suitable for solid and stranded conductors up to 4mm²
- Transparent housing with grey cover for easy identification
- Rated at 32A and 450V for high-load electrical applications
- T85 temperature rating for demanding environments
- Side-entry wiring for neat and efficient cable routing
Electrical Specifications
- Nominal voltage: 450V
- Rated current: 32A
- Rated impulse withstand voltage: 4kV
- Overvoltage category: III
- Pollution degree: 3
Connection Details
- Connection technology: PUSH WIRE®
- Number of conductors: 6
- Solid conductors: 0.75 – 4mm²
- Stranded conductors: 1.5 – 4mm²
- Strip length: 13mm
- Wiring direction: Side-entry wiring
Physical & Material Data
- Housing colour: Transparent
- Cover colour: Grey
- Width: 16.4mm
- Height: 11.3mm
- Depth: 18.6mm
- Weight: 2.6g
- Insulation material: Polycarbonate (PC)
- Contact material: Electrolytic copper with tin-plated contact surface
- Flammability class: UL94 V2
Environmental Ratings
- Maximum ambient operating temperature: +85°C
- Processing temperature: -35°C to +60°C
- Continuous operating temperature: -40°C to +105°C
- Temperature class: T85
Typical Applications
The Wago 2773-406 connector is ideal for use in lighting circuits, junction boxes, control panels, and general electrical installations where multiple conductors must be joined quickly, safely, and neatly.
