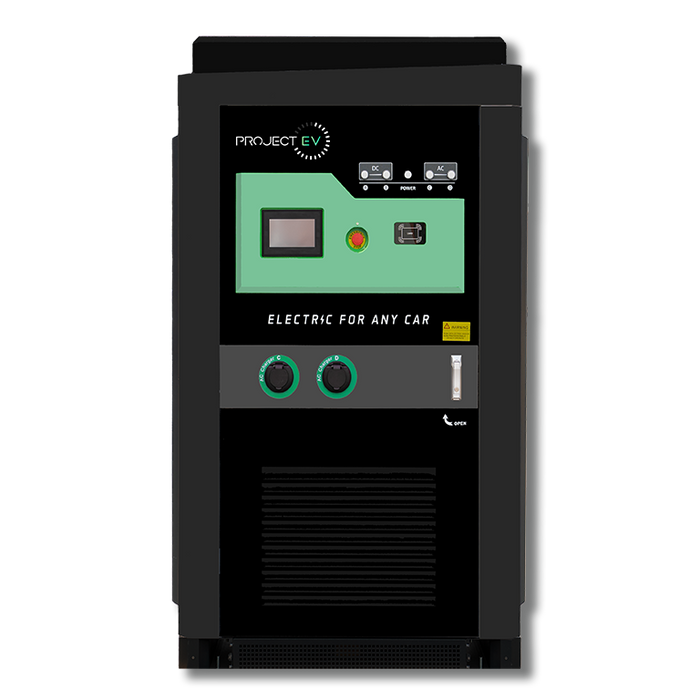

Project EV EVC-AC44D/DC150D 150kW Floor DC Electric Vehicle Charger Quad Gun RFID [Type 2 x2/CCS x2]

SPECIAL ORDER ITEM: 8-10 week Lead Time, please contact us to find out more

Project EV EVC-AC44D/DC150D 150kW Floor DC Electric Vehicle Charger Quad Gun RFID [Type 2 x2/CCS x2]

The EVC-AC44D-DC150D is a three-phase, commercial DC charging unit, featuring dual DC CCS plugs and dual 22kW, AC, three-phase Type 2 sockets.

With it’s high power, it’s an ideal commercial charging unit that is also compatible with our bespoke app, allowing for easy fleet and cost management.

The RFID unit comes with one RFID card as standard, with additional RFID cards (EV-RFID) available for purchase. Optional EV charging signage (EV-SIGN1) & optional protection posts (EV-POST2) are available to purchase.

METHODS OF CONTROL

Plug & Charge - Project EV’s ethos is to make charging electric vehicles easy and stress free for all. With the Plug and Play mode you do not require any additional software or applications to control your EV charge point, you simply plug your car into a Project EV device, and the charge begins.

RFID - RFID Mode Charging is an easy simple way for uses to control their EV Charge Point with a swipe of a card. One RFID card is supplied as standard, however extra cards can be supplied for those interested in public charging.

Project EV App - The FREE Project EV App allows you to choose and customise charging rates, prioritise off-peak charging to maximise savings (including via a solar charging mode) and create charging records; so you can see and control all your data.

Project EV Pro App - The Project EV Pro App is a unique EV charging platform, providing you the ability to utilise public charging capabilities and manage and control multiple chargers - from which you can generate a fluid revenue stream.

Features:

• Input Amps: 282A Three Phase
• Input voltage: 415V AC
• Input frequency: 50HZ
• AC outlet type: Type 2 X2 (socket)
• AC output voltage: 400V AC
• AC max. output power: 22kW
• AC max. output current: 32A per socket
• DC outlet type: CCS x2 (tethered)
• Output voltage: 200-850V DC
• Max. output power: 15KW
• Max. output current: 220A DC
• Cable Length: 5m
• Display: 7 inch screen
• Ethernet/WIFI/4G: Yes/Opt/Opt
• RCBO: Type A +6mA DC fault current protection (Equivalent to Type B)
• RFID: Yes
• Protection degree: IP54
• Floor-mounting: Standard
