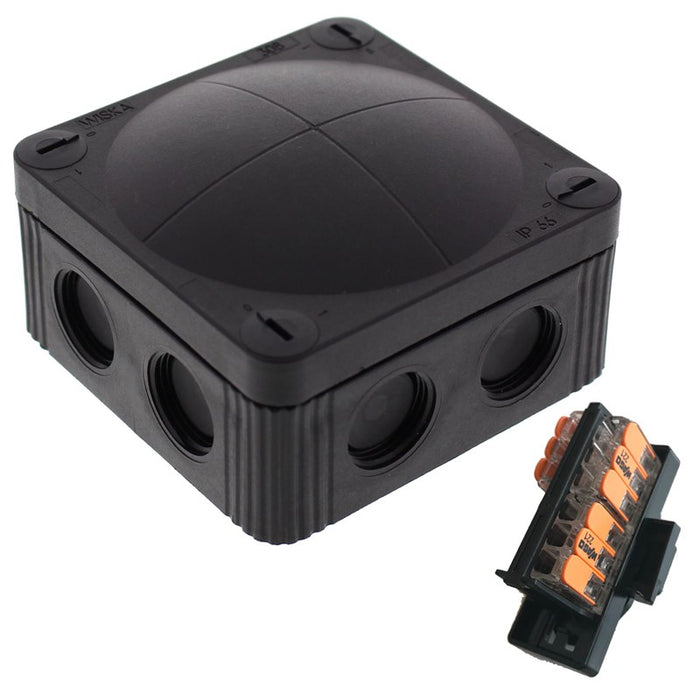

Wiska 10110404 COMBI 308 Junction Box + 3x 3-pole WAGO 221-413 Connectors - Black
SKU 10110404
Availability:
IN STOCK
Original price
£5.94
-
Original price
£5.94
Original price
£5.94
Inc VAT
£4.95
Exc VAT
£5.94
-
£5.94
Current price
£4.95
£4.95
-
£4.95
Current price
£4.95
Wiska 10110404 COMBI 308 Junction Box + 3x 3-pole WAGO 221-413 Connectors - Black
Features
- Type: COMBI 308/3-221-413
- Colour: Black
- Terminal Type: 3x 3-pole WAGO 221
- Material: Polypropylene
- Material sealing gasket: TPE
- Temp. range min: -30 °C
- Temp. range max: 100 °C
- Temperatures during install: -5 °C - 60 °C
- Protection class: IP66 / IP67
- Glow wire test: 750 °C
- Voltage: 400 V
- Rated cross section: 4 mm²

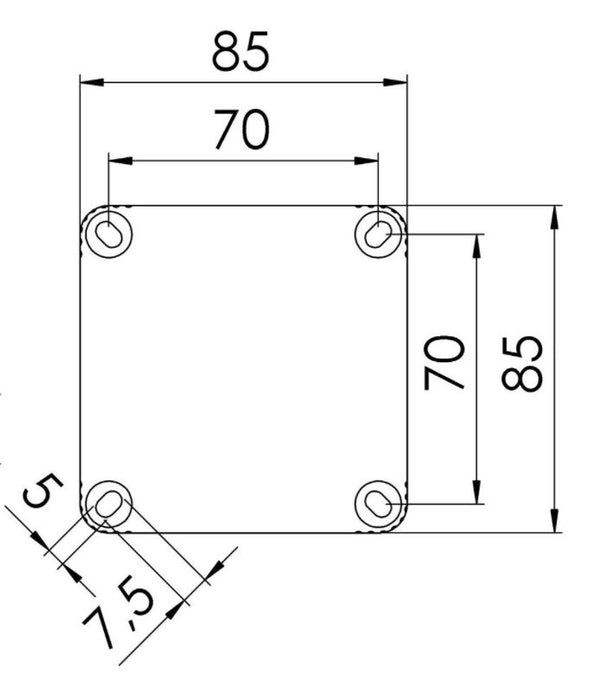

- Fixing: 4 internal openings
- Ø cable diameter min: 3 mm
- Ø cable diameter max: 12 mm
- External dimensions LxWxH: 85 x 85 x 51mm
- ETIM-Classification: EC002600
IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland
Equipment:

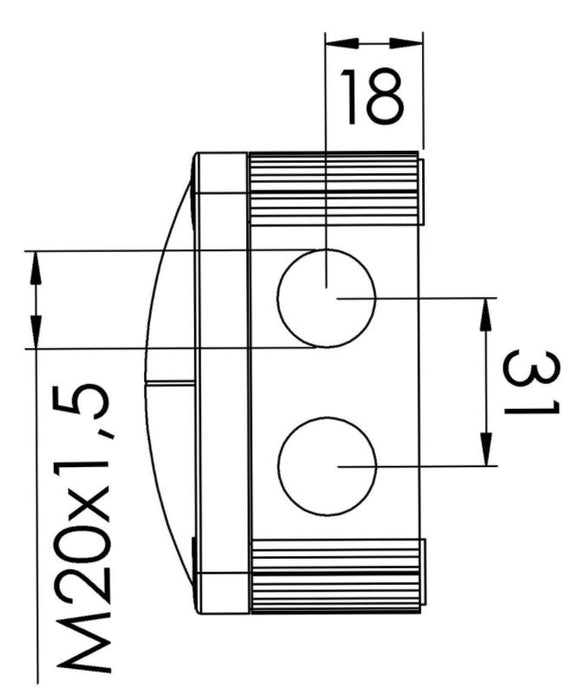

8 M20 threaded membrane entries
4 captive cover screws

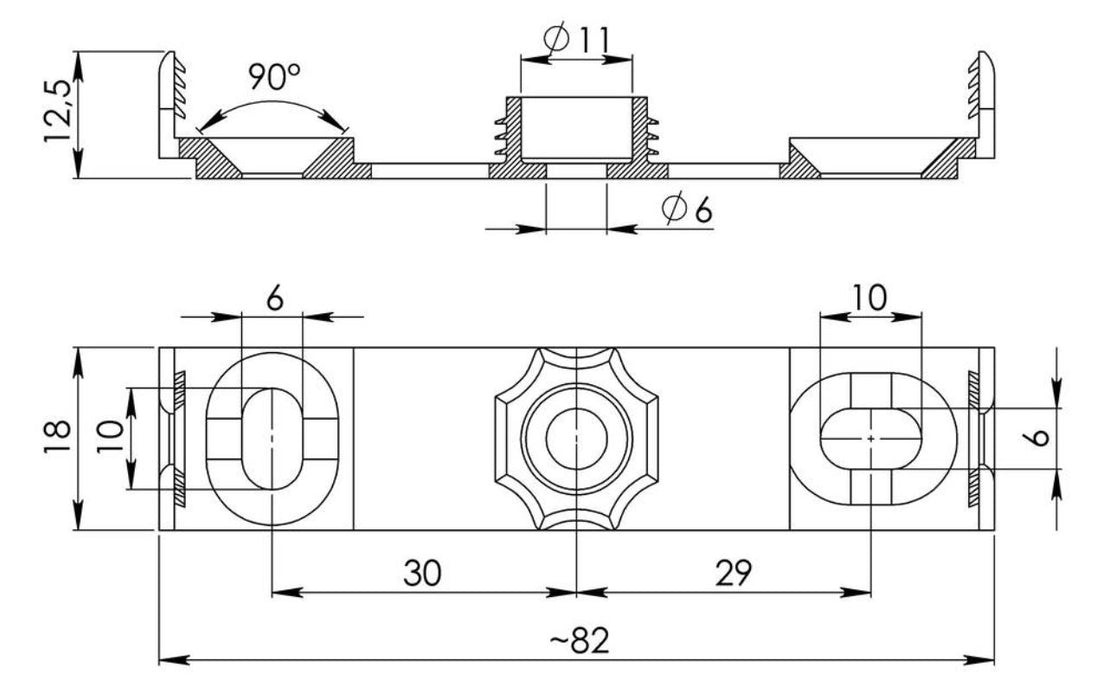

including mounting clip
including terminal carrier on quick mounting plate mounted + 3x WAGO 221-413 enclosed loose
Fixing:
With mounting clip or 4 internal openings outside of the sealing area
Data Sheet:
Click Here for Data Sheet
