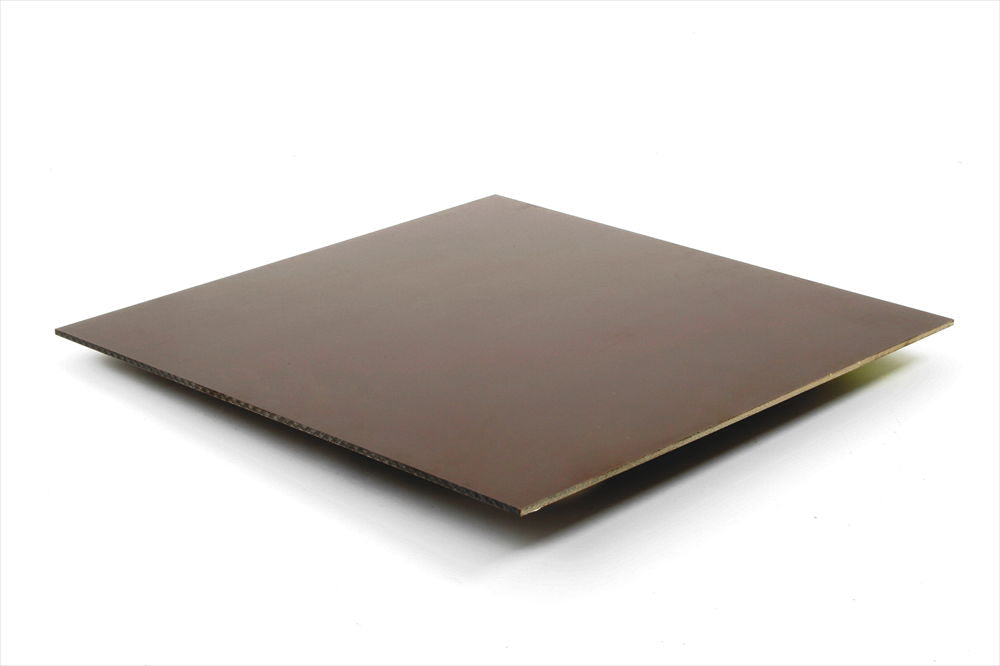

Term Tech PAXOLIN1200X1200 Phenolic Paper Laminate Paxolin Sheet 1200mm x 1200mm x 6mm
The Termination Technology range of Paxolin sheets are a phenolic paper laminate, offering good mechanical and electrical insulation properties in low voltage applications. An inexpensive method of providing lightweight yet rigid electrical insulation. Available in a range of different sizes and thicknesses.
Features:
- Laminated phenolic paper sheet
- 1200mm x 1200mm x 6mm
- 1.35g/cm3 Density
- +90oC continuous operating temperature, +120o for short periods
- 175Mpa Cross breaking strength (tested at 23oC)
- 100mg/cm3 water absorption
- 5 x 10M Ohm insulation resistance after immersion in water (tested at 23oC)
- Manufactured to BS2572 Type P1 and BSEN60893 Type 3-4-PFCP201.
Data Sheet:
Click Here for Data Sheet
