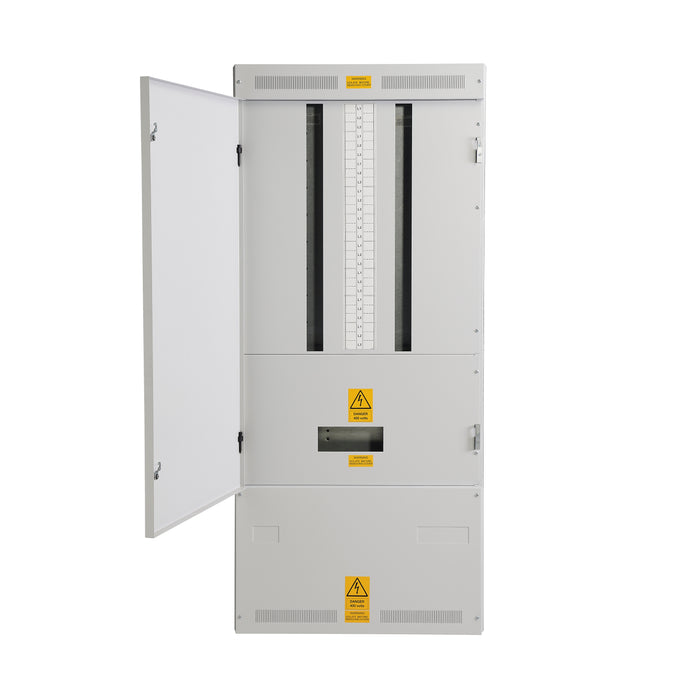

Crabtree 17VM36318 Powerstar VM160 630A 18-Way 3P+N Panel Board

The Crabtree 17VM36318 Powerstar VM160 Panel Board is a high-capacity 630A 18-way three-phase and neutral distribution board designed for demanding commercial and industrial power distribution systems. As part of the Powerstar VM160 range, it provides flexible configuration options, dependable protection compatibility and robust construction for modern electrical installations.

The panel board accepts Crabtree Powerstar VM160 fixed or adjustable SP and TP MCCBs from 16A to 160A, allowing a wide range of circuit protection configurations. When used with the 17VM3P2502 enclosure, the system can also accommodate two additional 200A or 250A TP MCCBs, increasing installation flexibility and overall capacity.

The unit also supports integral incoming metering (Pulsed output, Modbus or MID) and optional Type 1, Type 2 or combined Type 1+2 surge protection, helping safeguard sensitive equipment while enabling enhanced energy monitoring.

Manufactured in the UK and finished in a durable RAL 7035 grey powder coat, the enclosure complies with BS EN 61439-3. It features Form 3B Type 2 separation, IP3X protection with the door closed, and a high Icw rating of 35kA for 1 second, ensuring reliable fault withstand capability and safe operation in demanding installations.

Key Features

• 630A 18-way 3P+N Powerstar VM160 panel board
• Compatible with Crabtree Powerstar VM160 SP or TP MCCBs from 16A to 160A
• TP or 4P switch disconnector, MCCB or direct connection incomer options available (17VA prefix)
• Supports additional 200A or 250A TP MCCBs when used with 17VM3P2502 enclosure
• Supports integral incoming metering (Pulsed output, Modbus or MID)
• Compatible with Type 1, Type 2 or combined Type 1+2 surge protection
• Form 3B Type 2 form of separation
• Icw rating of 35kA for 1 second
• IP3X protection with door closed
• RAL 7035 grey powder coat finish
• Designed and manufactured in the UK to BS EN 61439-3
• Type tested and ASTA certified

Documentation

View the Product Data Sheet
