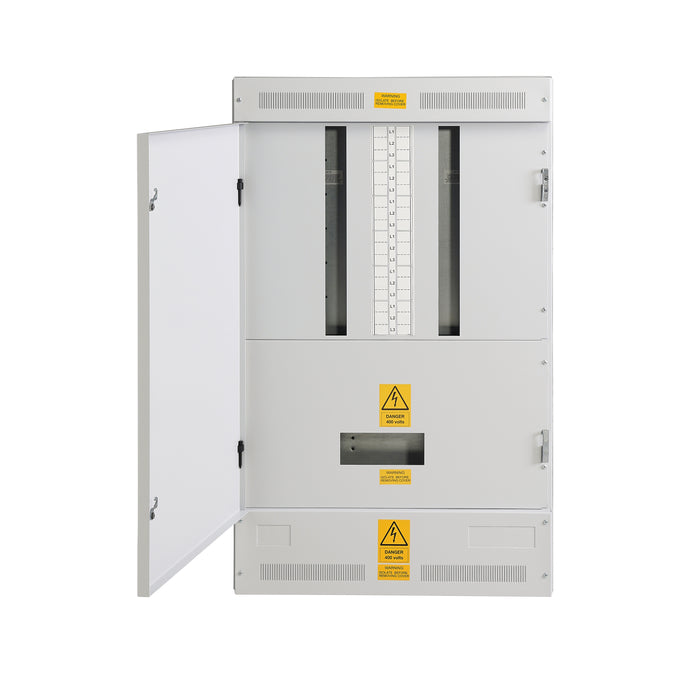

Crabtree 17VM34012 Powerstar VM160 400A 12-Way 3P+N Panel Board

The Crabtree 17VM34012 Powerstar VM160 Panel Board is a high-capacity 400A 12-way three-phase and neutral distribution board designed for reliable power distribution in commercial and industrial environments. As part of the Powerstar VM160 range, it provides flexible incomer options and compatibility with a wide range of circuit protection devices.

This panel board accepts Crabtree Powerstar VM160 fixed or adjustable SP and TP MCCBs from 16A to 160A, enabling versatile configuration for different circuit requirements. When used with the 17VM3P2502 enclosure, the system can also accommodate the addition of two 200A or 250A TP MCCBs for enhanced capacity.

The board supports integral incoming metering (Pulsed output, Modbus or MID) and optional Type 1, Type 2 or combined Type 1+2 surge protection, allowing improved monitoring and protection of the electrical installation.

Designed and manufactured in the UK, the enclosure features a durable RAL 7035 grey powder-coated finish and complies with BS EN 61439-3. With Form 3B Type 2 separation, IP3X protection with the door closed, and a high Icw rating of 35kA for 1 second, it delivers strong fault withstand capability and dependable performance.

Key Features

• 400A 12-way 3P+N Powerstar VM160 panel board
• Compatible with Crabtree Powerstar VM160 SP or TP MCCBs from 16A to 160A
• TP or 4P switch disconnector, MCCB or direct connection incomer options available (17VA prefix)
• Supports additional 200A or 250A TP MCCBs when used with 17VM3P2502 enclosure
• Supports integral incoming metering (Pulsed output, Modbus or MID)
• Compatible with Type 1, Type 2 or combined Type 1+2 surge protection
• Form 3B Type 2 form of separation
• Icw rating of 35kA for 1 second
• IP3X protection with door closed
• RAL 7035 grey powder coat finish
• Designed and manufactured in the UK to BS EN 61439-3
• Type tested and ASTA certified

Documentation

View the Product Data Sheet
