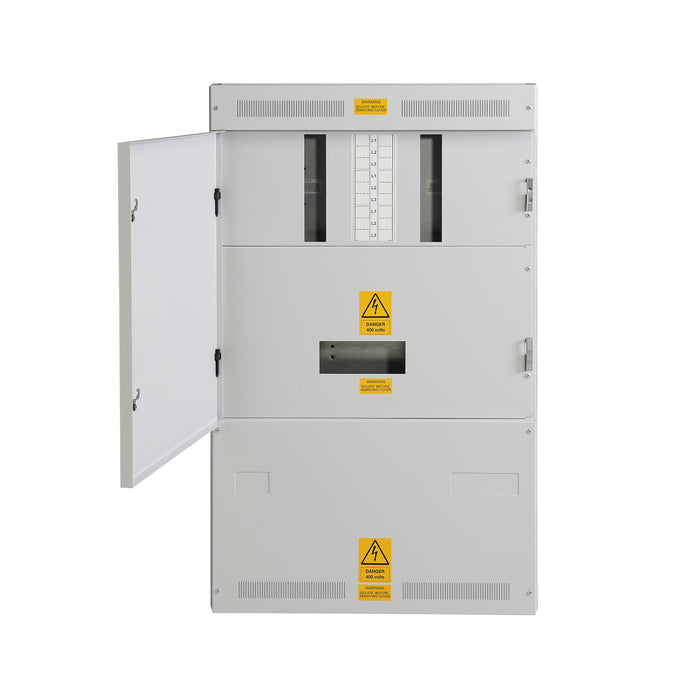

Crabtree 17VM34006 Powerstar VM160 400A 6-Way 3P+N Panel Board

The Crabtree 17VM34006 Powerstar VM160 Panel Board is a compact yet powerful 400A 6-way three-phase and neutral distribution board designed for dependable electrical distribution in commercial and industrial installations. Part of the Powerstar VM160 range, it offers flexible incomer configurations and compatibility with a wide range of protective devices.

This panel board accepts Crabtree Powerstar VM160 fixed or adjustable SP and TP MCCBs from 16A to 160A, allowing installations to be configured for a variety of circuit protection requirements. When paired with the 17VM3P2502 enclosure, the system can also accommodate two additional 200A or 250A TP MCCBs, providing increased capacity where required.

The unit supports integral incoming metering (Pulsed output, Modbus or MID) and optional Type 1, Type 2 or combined Type 1+2 surge protection, enabling enhanced monitoring and protection of electrical systems.

Manufactured in the UK and finished in a durable RAL 7035 grey powder coat, the panel board complies with BS EN 61439-3. It features Form 3B Type 2 separation, IP3X protection with the door closed, and a high Icw rating of 35kA for 1 second, ensuring excellent fault withstand capability in demanding environments.

Key Features

• 400A 6-way 3P+N Powerstar VM160 panel board
• Compatible with Crabtree Powerstar VM160 SP or TP MCCBs from 16A to 160A
• TP or 4P switch disconnector, MCCB or direct connection incomer options available (17VA prefix)
• Supports additional 200A or 250A TP MCCBs when used with 17VM3P2502 enclosure
• Supports integral incoming metering (Pulsed output, Modbus or MID)
• Compatible with Type 1, Type 2 or combined Type 1+2 surge protection
• Form 3B Type 2 form of separation
• Icw rating of 35kA for 1 second
• IP3X protection with door closed
• RAL 7035 grey powder coat finish
• Designed and manufactured in the UK to BS EN 61439-3
• Type tested and ASTA certified

Documentation

View the Product Data Sheet
