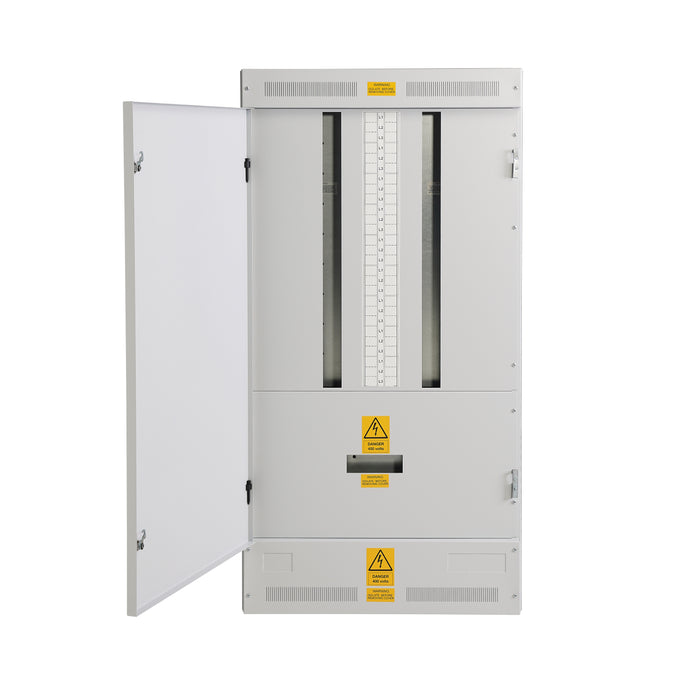

Crabtree 17VM32518 Powerstar VM160 250A 18-Way 3P+N Panel Board

The Crabtree 17VM32518 Powerstar VM160 Panel Board is a robust 250A 18-way three-phase and neutral distribution board designed for dependable power distribution in commercial and industrial installations. Engineered for flexibility and performance, it supports multiple incomer options and integrates seamlessly with the Powerstar VM160 protection range.

This panel board accepts Crabtree Powerstar VM160 fixed or adjustable SP and TP MCCBs from 16A to 160A, allowing the system to be configured to suit a wide range of circuit protection requirements. The design also supports integral incoming metering (Pulsed output, Modbus or MID) and optional Type 1, Type 2 or combined Type 1+2 surge protection for enhanced electrical safety.

Manufactured in the UK and finished in a durable RAL 7035 grey powder coating, the panel board complies with BS EN 61439-3. It features Form 3B Type 2 separation, IP3X protection with the door closed, and a high Icw rating of 25kA for 1 second, ensuring reliable fault withstand capability in demanding installations.

Key Features

• 250A 18-way 3P+N Powerstar VM160 panel board
• Compatible with Crabtree Powerstar VM160 SP or TP MCCBs from 16A to 160A
• TP or 4P switch disconnector or direct connection incomer options available (17VA prefix)
• Supports integral incoming metering (Pulsed output, Modbus or MID)
• Compatible with Type 1, Type 2 or combined Type 1+2 surge protection
• Form 3B Type 2 form of separation
• Icw rating of 25kA for 1 second
• IP3X protection with door closed
• RAL 7035 grey powder coat finish
• Designed and manufactured in the UK to BS EN 61439-3
• Type tested and ASTA certified

Documentation

View the Product Data Sheet
