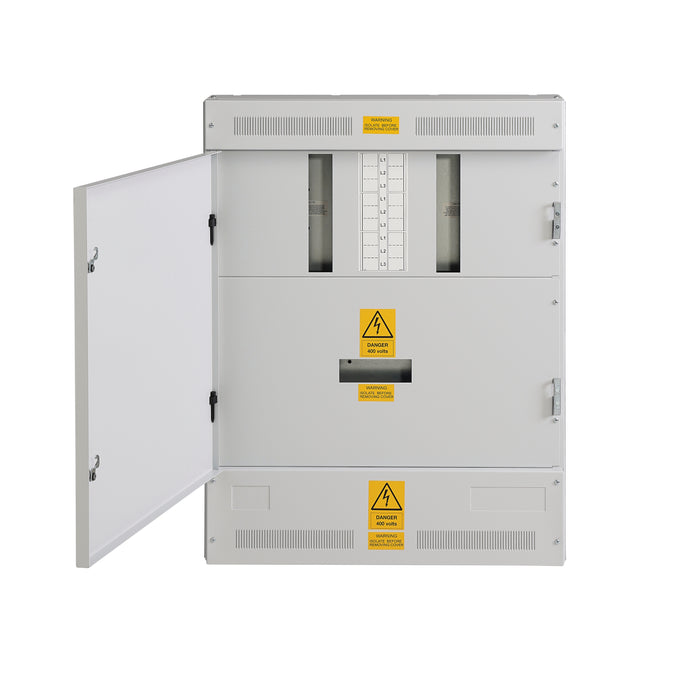

Crabtree 17VM32506 Powerstar VM160 250A 6-Way 3P+N Panel Board

The Crabtree 17VM32506 Powerstar VM160 Panel Board is a compact and reliable 250A 6-way three-phase and neutral distribution board designed for commercial and industrial power distribution applications. Part of the Powerstar VM160 range, it provides flexible configuration options and dependable protection for modern electrical installations.

The board accepts Crabtree Powerstar VM160 fixed or adjustable SP and TP MCCBs from 16A to 160A, enabling the system to be tailored to suit a wide range of circuit protection requirements. It also supports integral incoming metering (Pulsed output, Modbus or MID) along with optional Type 1, Type 2 or combined Type 1+2 surge protection to enhance system safety and monitoring.

Manufactured in the UK and finished in a durable RAL 7035 grey powder coating, this panel board is built to comply with BS EN 61439-3. With Form 3B Type 2 separation, IP3X protection with the door closed, and a 25kA Icw rating for 1 second, it provides robust performance and reliable fault withstand capability.

Key Features

• 250A 6-way 3P+N Powerstar VM160 panel board
• Compatible with Crabtree Powerstar VM160 SP or TP MCCBs from 16A to 160A
• TP or 4P switch disconnector or direct connection incomer options available (17VA prefix)
• Supports integral incoming metering (Pulsed output, Modbus or MID)
• Compatible with Type 1, Type 2 or combined Type 1+2 surge protection
• Form 3B Type 2 form of separation
• Icw rating of 25kA for 1 second
• IP3X protection with door closed
• RAL 7035 grey powder coat finish
• Designed and manufactured in the UK to BS EN 61439-3
• Type tested and ASTA certified
