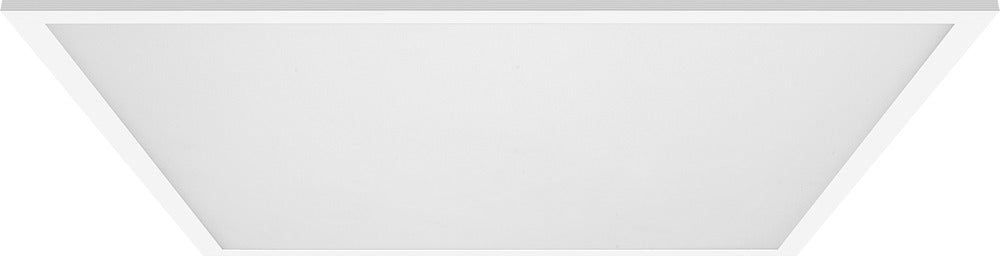

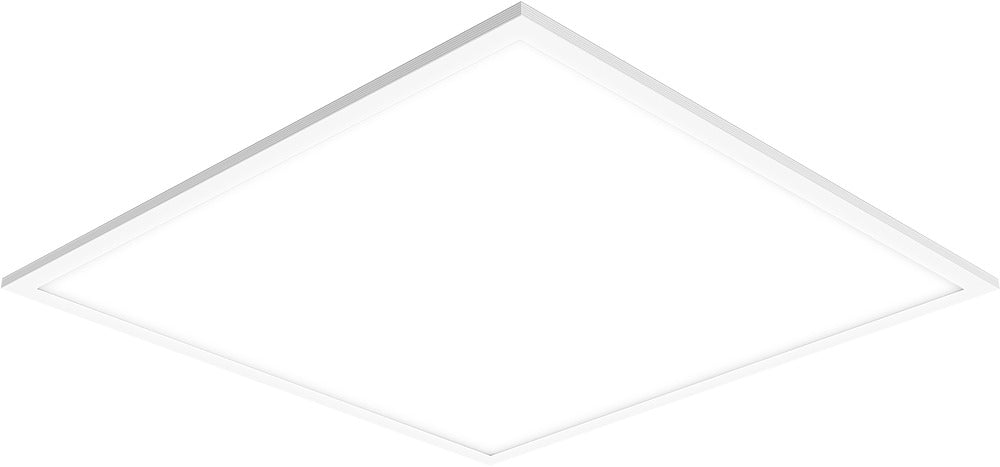

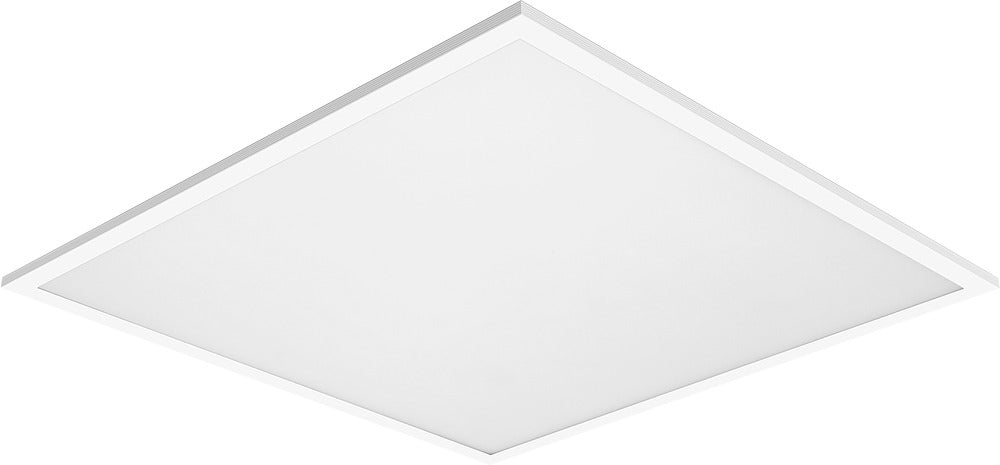

Luceco LBX66WLS40 600x600mm Luxpanel Extra TPa UGR19 Backlit LED Panel 2000-2800Lm 12.5W-17.5W 4000K Fixed Output
Luceco LBX66WLS40 Luxpanel Extra 600x600 Backlit LED Panel – 4000K Fixed Output
Product Description

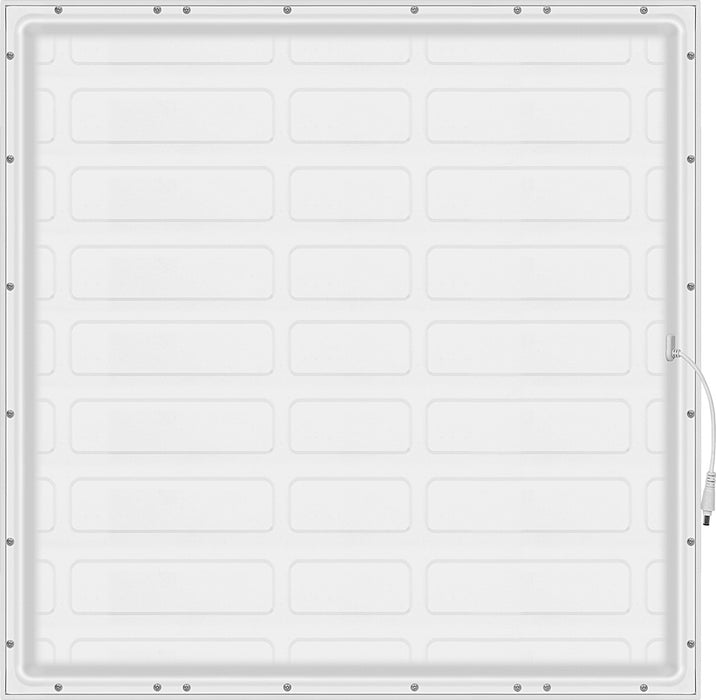

The Luceco Luxpanel Extra LBX66WLS40 is a low-energy, fixed output 600 x 600mm backlit LED panel, designed to deliver comfortable and uniform illumination in commercial interiors. With the LED modules positioned directly on the rear of the panel, light is distributed efficiently and evenly without the need for a light guide plate, improving overall performance and energy efficiency.
Designed for environments where consistent light levels are required, this panel features a TPa-rated diffuser and UGR19 glare control, making it suitable for offices, education spaces, healthcare facilities and meeting rooms. Its advanced optical design delivers efficacy of up to 145 lumens per watt while maintaining excellent visual comfort.
Supplied with fixed output control gear and a Plug & Play ENEC-approved loop in, loop out driver, the LBX66WLS40 offers straightforward installation and dependable operation. Finished in RAL 9016 white with a slim 30mm profile, it integrates neatly into standard suspended ceiling grids.
Key Features & Benefits
- 600 x 600mm backlit LED panel with slim 30mm depth
- Fixed output operation for consistent illumination
- Light output from 2000 to 2800 lumens
- High efficiency optical design with efficacy up to 145 lm/W
- 4000K neutral white light output
- TPa-rated diffuser with UGR19 glare control
- Plug & Play ENEC approved loop in / loop out driver
- Recessed mounting for 15mm or 24mm exposed ceiling grids
- Rear safety wire suspension points supplied as standard
- White aluminium frame finished in RAL 9016
Technical Documentation
Data Sheet:
Click here to download the data sheet
