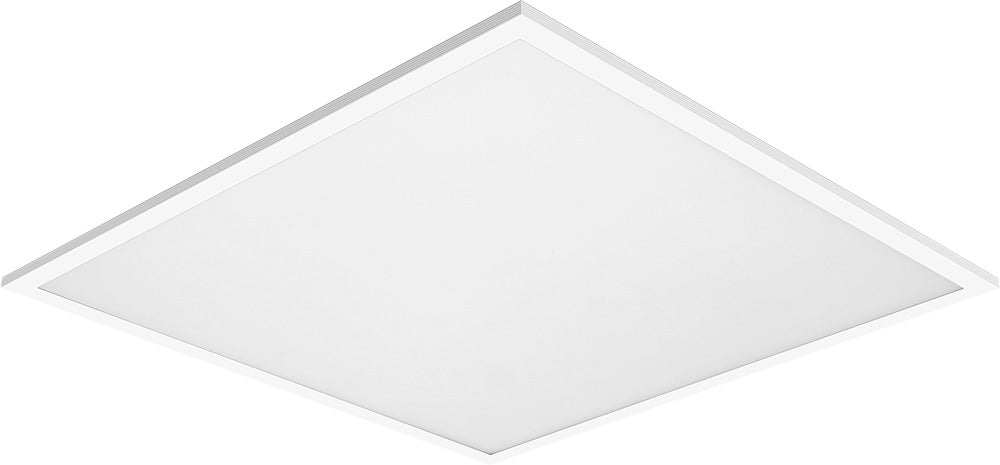

Luceco LBX66WHD40 600x600mm Luxpanel Extra TPa UGR19 Backlit LED Panel 3500-4200Lm 22W-27W 4000K Dimmable
Luceco LBX66WHD40 Luxpanel Extra 600x600 Backlit LED Panel – 4000K
Product Description
The Luceco Luxpanel Extra is a high-efficiency 600 x 600mm backlit LED panel designed to deliver balanced, low-glare illumination for commercial and professional environments. By mounting the LED modules directly to the rear of the panel, light is distributed evenly without the need for a light guide plate, resulting in improved performance and excellent lumen efficiency.
Featuring an advanced optical design, this panel offers an efficacy of up to 145 lumens per watt while maintaining uniform light output across the surface. The TPa-rated diffuser and UGR19 compliance ensure visual comfort, making it ideal for offices, classrooms, healthcare settings and other task-oriented spaces.
Supplied with a Plug & Play ENEC-approved loop in, loop out driver with power change dip switch, the Luxpanel Extra provides flexible output between 22W and 32W. Finished in RAL 9016 white and just 30mm deep, it integrates seamlessly into modern ceiling installations.
Key Features & Benefits
- 600 x 600mm backlit LED panel with slim 30mm depth
- Selectable power output from 22W to 32W
- Light output between 3500–4200 lumens
- High efficiency performance of up to 145 lm/W
- 4000K neutral white light output
- TPa-rated diffuser with UGR19 glare control
- Plug & Play ENEC approved loop in / loop out driver
- Integrated power change dip switch
- Digital dimmable control gear
- Recessed mounting for 15mm or 24mm exposed ceiling grids
- Rear safety wire suspension points supplied as standard
- White aluminium frame finished in RAL 9016
Technical Documentation
Data Sheet:
Click here to download the data sheet
