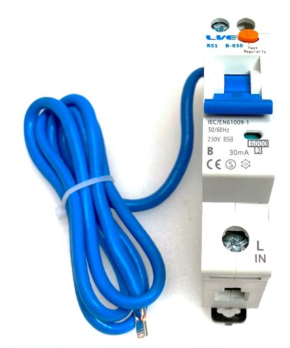

LIVE Electrical RS132B-030 Single Module 32A B Curve 6kA 30mA Type AC Mini RCBO
Product Overview
The LIVE Electrical RS132B-030 Mini RCBO combines RCD and MCB protection into a single compact unit, delivering enhanced safety for residential and light commercial installations. It provides switching, isolation, overload and short-circuit protection, as well as residual current protection against sinusoidal AC earth-fault currents. Fully compliant with BS EN 61009-1, this Mini RCBO helps protect people, equipment, and property.
Key Features
- Compact single-module Mini RCBO – Type AC
- Switching and isolation capability
- Overload and short-circuit protection
- Residual current protection against sinusoidal alternating earth-fault currents
- Provides protection against direct and indirect contact
- Helps reduce fire hazards caused by insulation faults
Technical Specifications
- Rated current (In): 32A
- Rated voltage (Ue): 230V AC
- Breaking capacity (Icn): 6kA
- Rated residual current: 30mA
- Tripping characteristic: B curve
- Electrical endurance: 4,000 cycles
- Mechanical endurance: 10,000 cycles
- Terminal capacity (max): IN 16mm², OUT 10mm²
- Standard: BS EN 61009-1
- Type: AC
