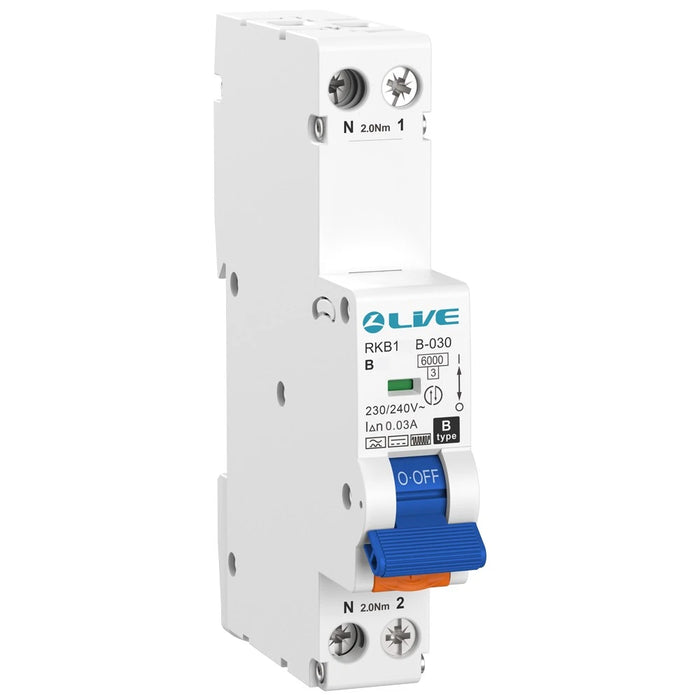

LIVE Electrical RKB132C-030 32A 1P+N C Curve 6kA 30mA Type B Bi-Directional Compact RCBO
LIVE Electrical RKB132C-030 32A 1P+N Type B RCBO C Curve 30mA 6kA Bi-Directional
Product Overview
The LIVE Electrical RKB132C-030 Type B RCBO is a compact, single-module residual current breaker with overcurrent protection, designed to deliver robust circuit protection in modern electrical installations. It provides reliable defence against overload currents, short circuits and earth leakage faults, while meeting the requirements of advanced electronic systems.
This Type B RCBO is engineered to detect AC, pulsating DC and smooth DC residual currents, ensuring effective protection where conventional devices may not be suitable. Its bi-directional power flow capability makes it particularly well suited to renewable energy systems and installations incorporating power electronics.
Featuring a C-curve tripping characteristic, the RKB132C-030 is ideal for circuits with higher inrush currents such as EV charging points, solar PV inverters and heat pumps. Rated at 32A, with a 30mA residual current sensitivity and a 6kA breaking capacity, it delivers dependable, standards-compliant protection.
Key Features & Benefits
- Type B RCBO for detection of AC, pulsating DC and smooth DC residual currents
- C-curve tripping suitable for circuits with higher inrush current demands
- Compact single-module design to maximise space within consumer units
- Bi-directional supply capability for modern energy systems
- Combined protection against overload, short circuit and earth leakage
- 30mA sensitivity for enhanced personal and equipment protection
- Ideal for EV chargers, solar PV systems, heat pumps and inductive loads
Technical Specification
- Poles: 1P+N
- Rated Current (In): 32A
- Tripping Curve: C
- Rated Frequency: 50/60Hz
- Rated Operating Voltage: 230/240V~
- Insulation Voltage (Ui): 500V
- Impulse Withstand Voltage (Uimp): 4kV (1.2/50µs)
- Residual Current Sensitivity: 30mA
- Breaking Capacity: 6kA
- Device Type: Type B
- Maximum Terminal Cable Size: 16mm²
- Terminal Torque: 2.0Nm
- Ingress Protection: IP20
- Direction of Supply: Bi-Directional
- Standards: IEC/EN 61009-1, IEC/EN 62423
