LIVE Electrical RKB132B-030 32A 1P+N B Curve 6kA 30mA Type B Bi-Directional Compact RCBO
LIVE Electrical RKB132B-030 32A 1P+N Type B RCBO 30mA 6kA Bi-Directional
Product Overview

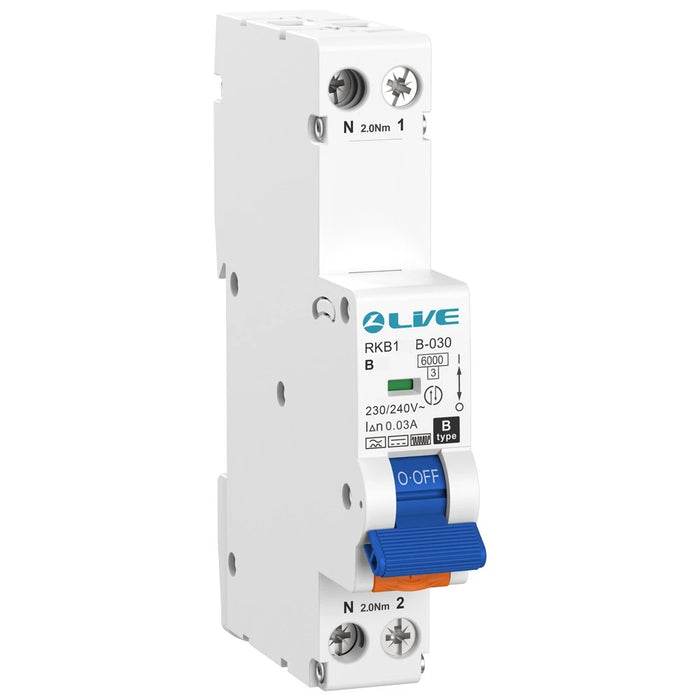

The LIVE Electrical RKB132B-030 Type B RCBO is a compact, single-module residual current breaker with overcurrent protection, designed to deliver high-level circuit protection in modern electrical installations. It effectively protects against overloads, short circuits and earth leakage faults, while meeting the demands of advanced electronic systems.
This Type B RCBO is engineered to detect AC, pulsating DC and smooth DC residual currents, making it suitable for applications where conventional Type A devices are insufficient. Its bi-directional power flow capability ensures safe operation in circuits associated with renewable energy generation and power conversion technologies.
With a rated current of 32A, a 30mA residual current sensitivity and a 6kA breaking capacity, the RKB132B-030 is ideally suited for protecting supplies to EV charging points, solar PV inverters, heat pumps and other sensitive electrical equipment.
Key Features & Benefits
- Type B RCBO for advanced detection of AC and DC residual currents
- Compact single-module design to maximise space within consumer units
- Bi-directional capability for modern energy systems
- Combined protection against overload, short circuit and earth leakage
- 30mA sensitivity for enhanced personal and equipment protection
- B-curve tripping characteristic
- Ideal for EV chargers, solar PV systems, heat pumps and sensitive electronics
Technical Specification
- Poles: 1P+N
- Rated Current (In): 32A
- Rated Frequency: 50/60Hz
- Rated Operating Voltage: 230/240V~
- Insulation Voltage (Ui): 500V
- Impulse Withstand Voltage (Uimp): 4kV (1.2/50µs)
- Residual Current Sensitivity: 30mA
- Breaking Capacity: 6kA
- Device Type: Type B
- Tripping Curve: B
- Maximum Terminal Cable Size: 16mm²
- Terminal Torque: 2.0Nm
- Ingress Protection: IP20
- Direction of Supply: Bi-Directional
- Standards: IEC/EN 61009-1, IEC/EN 62423
Downloads
Data Sheet:
Click here to download the RKB Type B single-module RCBO data sheet
LIVE Electrical Catalogue:
Click here to view the LIVE Electrical catalogue
