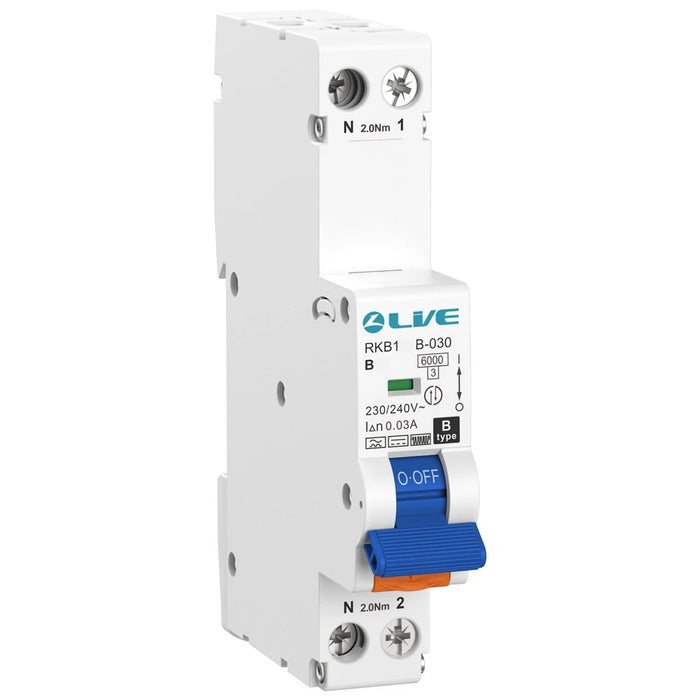

LIVE Electrical RKB116C-030 16A 1P+N C Curve 6kA 30mA Type B Bi-Directional Compact RCBO
LIVE Electrical RKB116C-030 16A 1P+N Type B RCBO C Curve 30mA 6kA Bi-Directional
Product Overview
The LIVE Electrical RKB116C-030 Type B RCBO is a compact, single-module residual current breaker with overcurrent protection, designed to provide enhanced circuit protection in modern electrical installations. It protects against overloads, short circuits and earth leakage faults, while supporting applications that generate complex electrical waveforms.
This Type B RCBO is engineered to detect AC, pulsating DC and smooth DC residual currents, ensuring reliable protection where standard Type A devices may be insufficient. Its bi-directional power flow capability makes it particularly suitable for renewable energy systems and advanced power electronics.
Featuring a C-curve tripping characteristic, this RCBO is ideal for circuits with higher inrush currents such as EV chargers, solar PV inverters, heat pumps and other inductive loads. Rated at 16A with a 30mA residual current sensitivity and a 6kA breaking capacity, it delivers dependable and compliant protection.
Key Features & Benefits
- Type B RCBO for detection of AC, pulsating DC and smooth DC residual currents
- C-curve tripping for circuits with higher inrush current demands
- Compact single-module design to maximise consumer unit space
- Bi-directional supply capability
- Combined protection against overload, short circuit and earth leakage
- 30mA sensitivity for enhanced personal and equipment protection
- Suitable for EV charging equipment, solar PV systems, heat pumps and inductive loads
Technical Specification
- Poles: 1P+N
- Rated Current (In): 16A
- Tripping Curve: C
- Rated Frequency: 50/60Hz
- Rated Operating Voltage: 230/240V~
- Insulation Voltage (Ui): 500V
- Impulse Withstand Voltage (Uimp): 4kV (1.2/50µs)
- Residual Current Sensitivity: 30mA
- Breaking Capacity: 6kA
- Device Type: Type B
- Maximum Terminal Cable Size: 16mm²
- Terminal Torque: 2.0Nm
- Ingress Protection: IP20
- Direction of Supply: Bi-Directional
- Standards: IEC/EN 61009-1, IEC/EN 62423
