LIVE Electrical EMCU4A-SNR 4 Way IP40 Metal EV Charging Unit with 40A Type A DP RCBO C Curve & 20/40kA 1P+N Surge Protective Device
SKU EMCU4A-SNR
Availability:
Dispatch in 2-5 Days
Original price
£56.61
-
Original price
£56.61
Original price
£56.61
Inc VAT
£47.18
Exc VAT
£56.61
-
£56.61
Current price
£47.18
£47.18
-
£47.18
Current price
£47.18

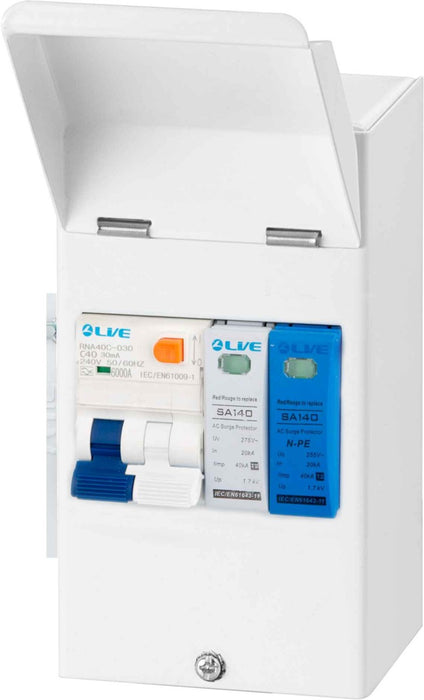

LIVE Electrical EMCU4A-SNR 4 Way IP40 Metal EV Charging Unit with 40A Type A DP RCBO C Curve & 20/40kA 1P+N Surge Protective Device
Product Description
Electric Vehicle Surge Charging Unit
Consumer units are supplied with 40A 30mA Type A RCBO C Curve and 20/40kA DP Surge Protective Device.
Features & Benefits:
- IP40 Surface Mounted
- Fitted with 40A DP C Curve Type A RCBO (RNA40C-030)
- 20/40kA 1P+N Surge Protective Device (SA140 1P+N)
- Circular cable entry 20&25mm knock-outs on the top and bottom
- Raised key holes for secure easy installation
- Modern style finished in white polyester powder coating to RAL9010
- Complies with BS EN 61439-3
- Metal enclosure supplied with DIN rail &terminal
- Dimensions: 110mm (W) x 175mm (H) x 80mm (D)
