Collingwood DLT551500B10 H2 Lite CSP 4W/6W Wattage & CCT Switchable LED Downlight Dimmable 2200K/2700K/3000K/4000K White (10 Pack)
Collingwood DLT551500B10 H2 Lite CSP 4W/6W Wattage & CCT Switchable LED Downlight – Dimmable 2200K/2700K/3000K/4000K White (10 Pack)
Product Overview

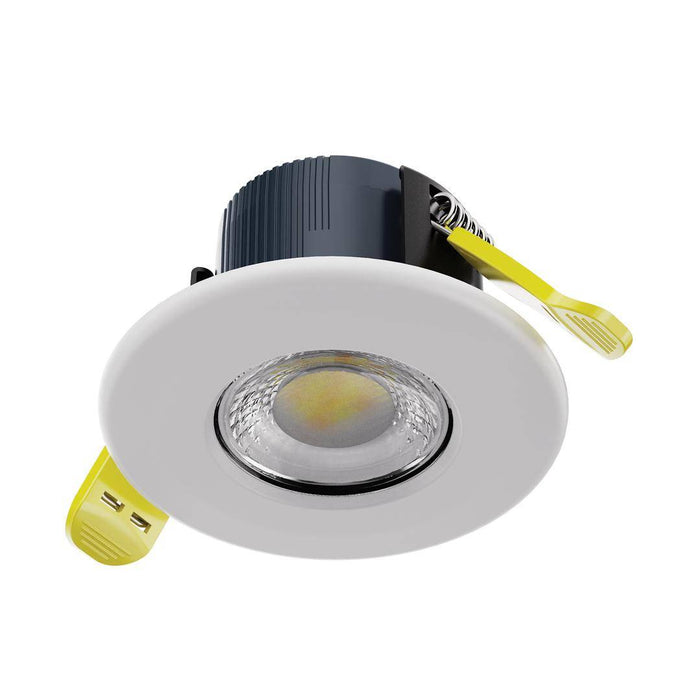

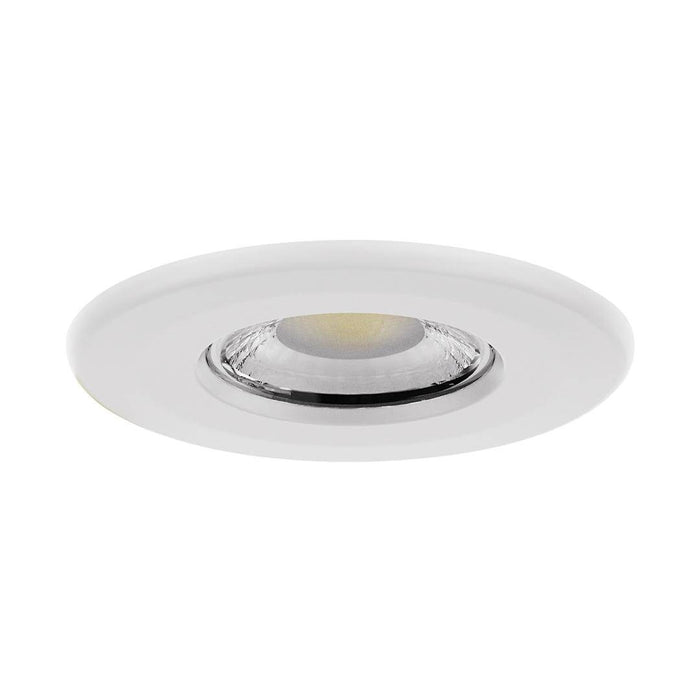

The Collingwood DLT551500B10 H2 Lite CSP 10 Pack offers a high-performance, cost-effective lighting solution with versatile control and premium build quality. Designed as a fit-and-forget downlight, it features both wattage (4W/6W) and CCT switchability (2200K–4000K) to create the perfect lighting ambience for any setting. Ideal for large-scale residential or commercial installations, this pack of 10 provides efficiency, flexibility, and ease of installation.
Each unit includes front-access switches for colour and wattage selection, large loop-in/loop-out terminals for quick wiring, and smooth glide clips for a simple, secure fit. Choose the 2200K “Ember Light” setting to produce a warm, low-blue-light glow for relaxing environments. Please note: this model is no longer fire-rated.
Key Features
- 4-in-1 CCT switchable: Select between 2200K, 2700K, 3000K, and 4000K colour temperatures.
- Wattage adjustable: Switch between 4W and 6W outputs, achieving up to 145 lm/W efficiency.

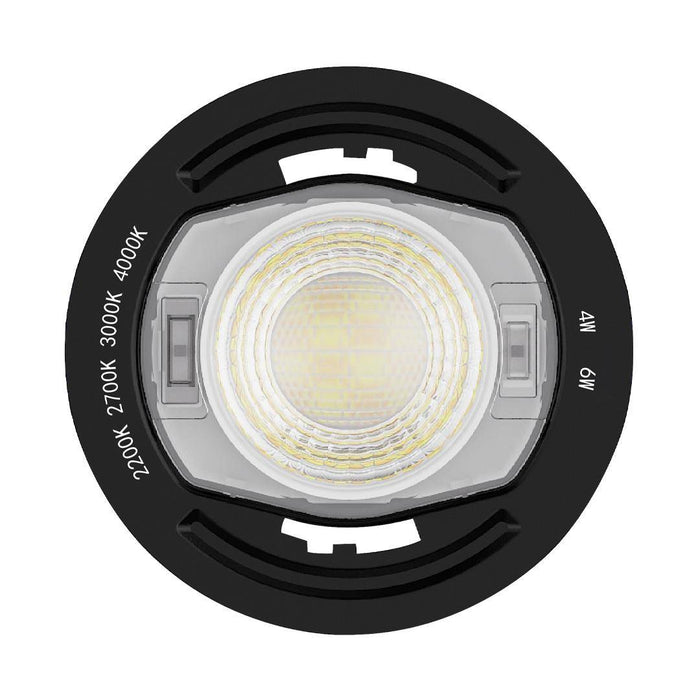

- Front-mounted controls: Easily change settings during installation by twisting off the bezel.

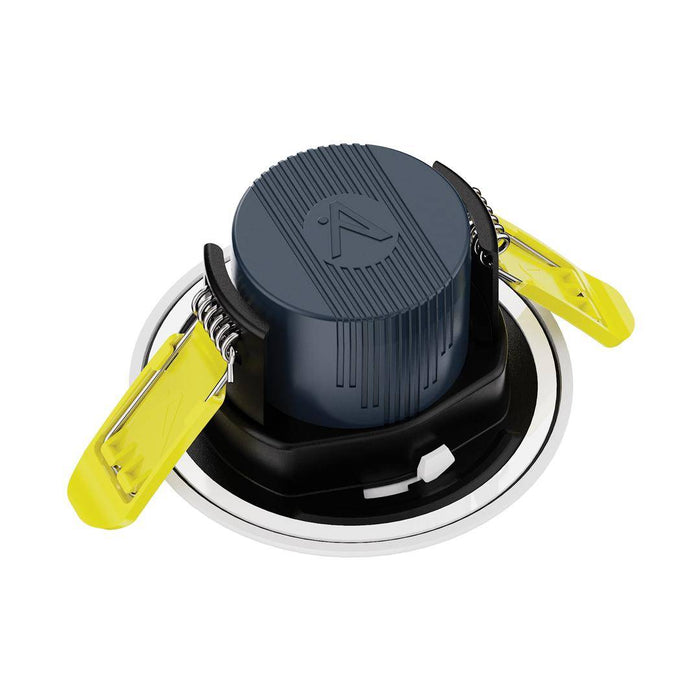

- Smooth installation: Glide clip design ensures fast and clean ceiling fitting.

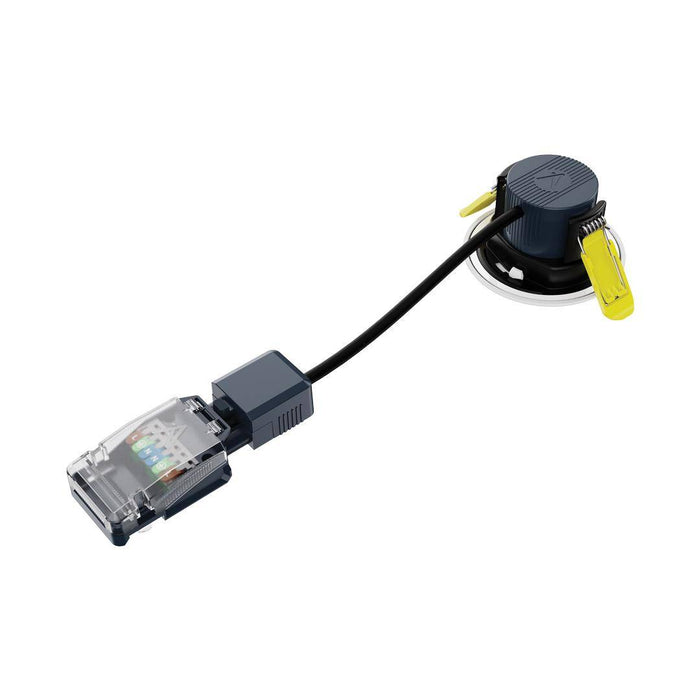

- Quick-fit connector: Two-part first fix connector enables safe loop-in/loop-out wiring and easy future maintenance.
- TRIAC mains dimmable: Fully compatible with leading and trailing edge dimmers.
- ‘Ember Light’ 2200K mode: Reduces blue light for a warm, cosy ambience.
- Accessory compatibility: Fits H2 twist-and-lock bezels and converter plates without affecting IP rating.
- Tested with Click Flow CT100 series: Proven compatibility for easy integration.
- 7-year guarantee: Backed by Collingwood’s industry-leading warranty.
Specifications

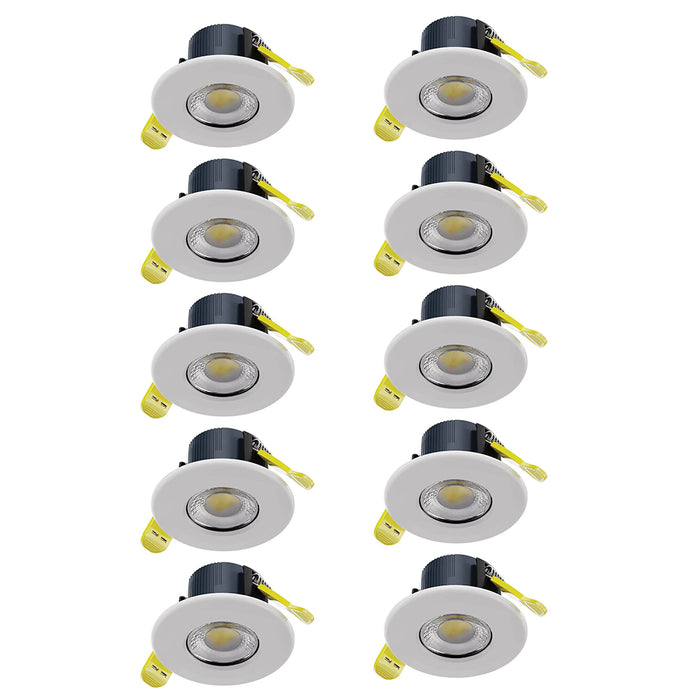

- Pack Size: 10 Downlights
- Wattage & Lumens: 4–6W | 460–780lm
- Efficiency: 105–145 lm/W
- CCT Range: 2200K / 2700K / 3000K / 4000K
- CRI: >80
- Beam Angle: 55°
- Input Voltage: 220–240V AC
- IP Rating: IP65 (from below), IP20 (from above)
- Dimmable: Mains (Leading Edge / Trailing Edge)
- Power Factor: 0.84
- Operating Temperature: -20°C to +40°C
- Cut-Out Size: 68–72mm
- Height: 54mm
- Bathroom Zone: Zone 1
- Insulation Coverable: Suitable for rolled and blown insulation
- Material: Mild Steel / Polycarbonate
- Finish: White
- Lifetime: L70 70,000 hours
- Energy Class: C
- Mounting: Fixed (non-adjustable)
- Connector Type: Two-part first fix connector
- Compliance: Building Regulations Part B, C, E, P & L
Downloads
Data Sheet: Click here to view the Data Sheet
