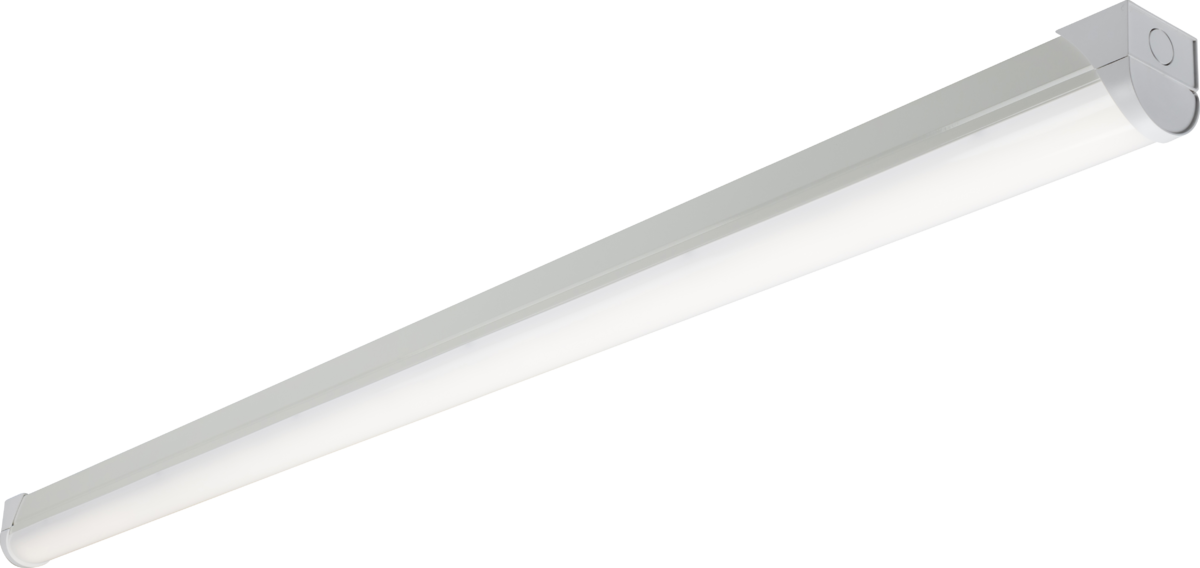

Knightsbridge BATMCDA5 230V 5ft 41W Modular DALI CCT Adjustable Batten
Knightsbridge BATMCDA5 230V 5ft 41W Modular DALI CCT Adjustable LED Batten
The Knightsbridge BATMCDA5 is a high-performance 5ft modular LED batten designed to deliver exceptional efficiency, advanced lighting control and customisable colour temperature options. Ideal for commercial, industrial and institutional environments, this luminaire combines the flexibility of modular DALI integration with premium Tridonic driver technology.
Flexible Modular Design
With a versatile modular configuration, the BATMCDA5 supports both standard DALI installations and optional DALI emergency functionality via simple plug-in modules. The range includes multiple wattage and length options, ensuring the perfect lighting solution for any project specification or environment.
Outstanding Efficiency
Delivering up to 140 lm/W, this LED batten provides bright, uniform illumination while significantly reducing energy consumption. The latest LED chip technology, combined with high-quality Tridonic drivers, ensures long-term reliability and consistent performance.
Adjustable CCT for Maximum Versatility
Match your lighting to the needs of each space with an internal switch offering three popular colour temperature settings: 3000K, 4000K and 5700K. From warm ambient lighting to crisp cool white, the BATMCDA5 adapts effortlessly to a range of environments.
Installer-Friendly Design
The hinged gear tray provides straightforward access for wiring and maintenance, while rear and end conduit entry points support flexible installation. With standard 600mm fixing centres and full BESA box compatibility, the batten is ideal for both retrofit and new-build projects.
Key Features
- DALI2 and DSI dimming compatibility
- switchDIM function for simple on-site control
- Corridor function for automatic energy-saving light reduction
- Optional modular DALI emergency conversion kit (MODEMKITDA)
- High-efficiency output
- Internal CCT switch: 3000K / 4000K / 5700K
- Powered by Tridonic LED drivers
- Rear and end conduit fixing points
- Standard 600mm centres and BESA compatible
- Hinged gear tray for easy access
- Push-fit loop-in/loop-out terminal block
- 41W output – delivering 6,000 lumens at 4000K
