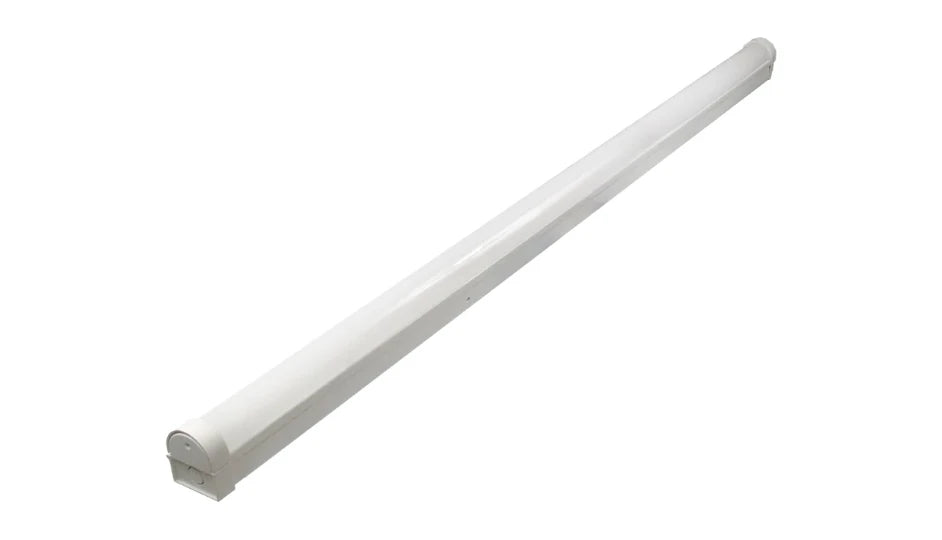

Brackenheath BR5216TE 6ft 32–62W Colour & Wattage Adjustable Twin LED Pro Batten with Emergency

The Brackenheath BR5216TE 6ft Twin LED Pro Batten with Emergency is a high-output, energy-efficient replacement for traditional twin T8 fluorescent fittings. Designed for demanding commercial and industrial environments, this professional luminaire combines selectable wattage, adjustable colour temperature and a reliable 3-hour emergency function to provide performance, flexibility and enhanced safety.

With an impressive efficacy of up to 150 lumens per watt and adjustable light output from 4,800 to 9,300 lumens, the BR5216TE delivers powerful, evenly distributed illumination while helping to reduce energy consumption and maintenance costs.

Key Features

• 6ft twin LED emergency batten – ideal retrofit for twin T8 fluorescent fittings
• Power selectable: 32W to 62W
• CCT selectable (CCT3): 3000K (Warm White), 4000K (Cool White) or 6000K (Daylight)
• High efficiency up to 150lm/W
• Light output range: 4,800lm to 9,300lm
• Integrated 3-hour emergency duration
• 120° beam angle for wide, uniform light coverage
• Robust steel body with durable polycarbonate diffuser
• Suitable for ceiling or suspended mounting
• 20mm conduit entry connection option
• IP20 rated – suitable for indoor use
• 220–240V supply
• 5-year manufacturer’s guarantee

Flexible Lighting for Large Commercial Spaces

Internal multi-position switches allow installers to choose from four wattage settings and three colour temperature options during installation. This makes the BR5216TE ideal for warehouses, factories, retail units, schools and other large commercial environments requiring adaptable, high-performance lighting.

Integrated Emergency Backup

The built-in 3-hour emergency module ensures continued illumination during a mains power failure, supporting compliance with emergency lighting regulations and improving occupant safety.

Technical Specifications

• Length: 6ft
• Wattage: 32W–62W (Selectable)
• Lumens: 4,800–9,300lm
• Efficacy: Up to 150lm/W
• Colour Temperatures: 3000K / 4000K / 6000K
• Beam Angle: 120°
• Emergency Duration: 3 hours
• Voltage: 220–240V
• IP Rating: IP20

Data Sheet:
Download the BR5216TE Data Sheet

Instruction Manual:
Download the BR5216TE Instruction Manual
