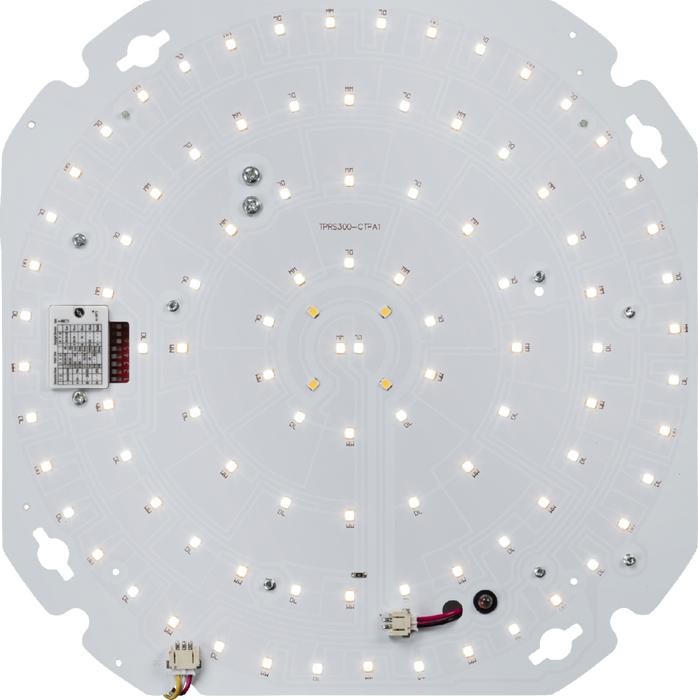

Knightsbridge TNXTMW TENAX 230V Wattage and CCT Adjustable LED Gear Tray with Sensor

The Knightsbridge TNXTMW TENAX is a high-performance 230V LED Gear Tray featuring both wattage and CCT adjustability for maximum versatility and efficiency. Designed to simplify lighting specification, it combines three wattage outputs and three colour temperature settings into a single, easy-to-install unit — providing a flexible solution for a wide range of commercial, industrial, and residential applications.

This innovative gear tray integrates an adjustable microwave sensor offering full control over detection area, daylight sensitivity, and hold time, helping optimise energy efficiency and automatic operation. Installation is fast and straightforward, secured into the compatible Tenax One or Tenax Quad casings via four butterfly clips and a push-fit terminal block with loop-in / loop-out capability.

*Casing is not included and must be purchased separately.

• Sensor: Adjustable microwave sensor with configurable detection area, daylight levels, and hold time
• Selectable CCT: 3000K / 4000K / 5700K
• Selectable Wattage: 10W / 15W / 20W
• Electrical Connection: Push-fit terminals with loop-in / loop-out capabilities
• Mounting: Secured via four butterfly clips for quick, secure installation
• Compatibility: Designed for Tenax One and Tenax Quad casings
• Performance (inside casing):
• 10W – 1,200lm at 4000K
• 15W – 1,670lm at 4000K
• 20W – 2,100lm at 4000K

Key Benefits:

• Triple wattage and CCT adjustability for installation flexibility
• Built-in microwave sensor enhances energy efficiency and automation
• Simple, tool-free installation via butterfly clips and push-fit terminals
• Suitable for both indoor and outdoor Tenax casings
• Low maintenance, high-efficiency LED lighting performance

Applications: Ideal for commercial buildings, stairwells, corridors, car parks, and industrial units.

Data Sheet:

Click Here for Data Sh_
