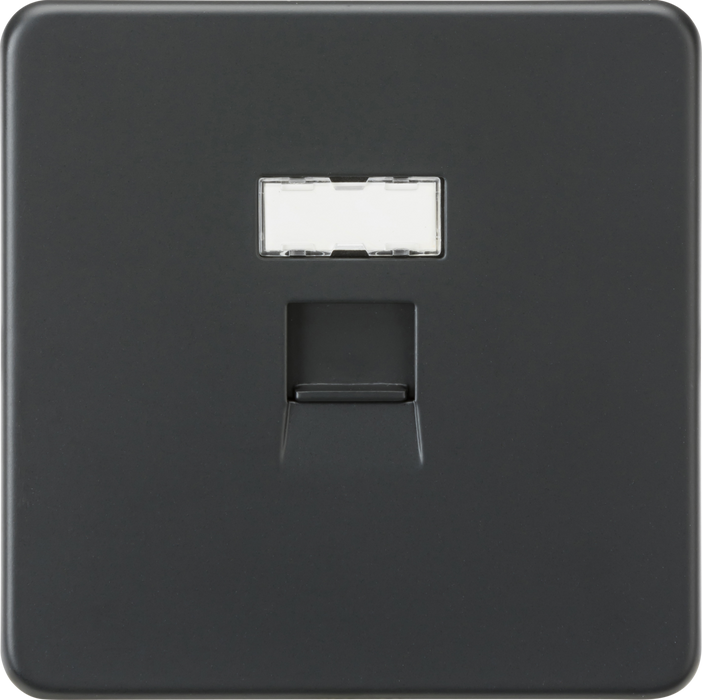

Knightsbridge SFC6AT Screwless UTP CAT6a RJ45 Network Outlet - Anthracite
Knightsbridge SFC6AT Screwless UTP CAT6a RJ45 Network Outlet - Anthracite
The Knightsbridge SFC6AT Screwless CAT6a RJ45 Outlet delivers high-speed data connectivity with a stylish low-profile design. Its sleek anthracite flat plate, projecting just 4.3mm from the wall, makes it the perfect finishing touch to any modern interior. Built from premium-quality steel with a discreet protective gasket and matching metal shutter detail, this network outlet combines durability with refined aesthetics.
Key Features
- Single shuttered CAT6a unshielded RJ45 outlet
- Conforms to ANSI/TIA/EIA 568B.2-10 standards
- Insulation resistance: <500 milli-ohm at 100V DC
- Withstand voltage: 1000V DC, 700V AC RMS 60Hz for 1 min
- Operating temperature: -10°C to 60°C
- Supports 16–20 AWG wire gauges
Benefits & Performance
- High-speed data transfer: Supports up to 10Gbps over 100m with 500MHz bandwidth (compared to CAT6, which supports 1Gbps at 100m / 250MHz)
- Backwards compatible with CAT6 and CAT5e (note: performance depends on cable standard)
- Reduced crosstalk for improved signal integrity
- Enhanced PoE (Power over Ethernet) capabilities – ideal for smart home applications such as IP cameras where power outlets may not be available
- For best results, use with certified CAT6a cabling
Applications
This outlet is perfect for home networks, offices, commercial premises, and smart home systems requiring reliable high-speed data connections and robust PoE support.
Resources & Downloads
📘 Click here to download the SFC6AT Data Sheet
Upgrade your connectivity with the Knightsbridge SFC6AT CAT6a outlet – designed for performance, durability, and modern interiors.
