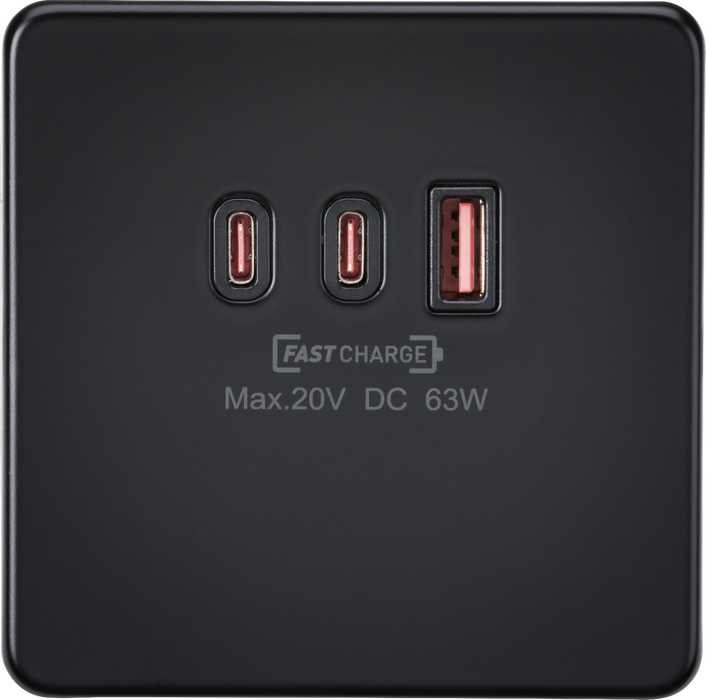

Knightsbridge SF63WMB Screwless 230V Triple USB Charger Plate – 2x USB-C + 1x USB-A (Max. 63W) – Matt Black

The Knightsbridge SF63WMB Triple USB Charger Plate is a powerful and practical charging solution, designed for modern homes, offices, hospitality spaces, and commercial environments. Finished in a sleek matt black screwless flat plate design with a discreet built-in gasket, it provides a tidy, all-in-one charging hub for multiple users.

Equipped with dual USB-C ports and a legacy USB-A port, this charger plate supports the latest fast-charging standards, including USB Power Delivery (PD3.0) and PPS, delivering up to 63W. This makes it powerful enough to charge smartphones, tablets, and even laptops, eliminating the need for bulky adaptors.

Key Features:

• Triple USB charger plate – 2x USB-C + 1x USB-A
• Supports USB-C fast charging up to 63W
• Legacy USB-A port for older devices
• Sleek matt black screwless design with built-in gasket
• Minimum mounting box depth: 25–35mm* (depending on wiring)

Benefits:

• Convenient all-in-one charging solution
• Eliminates the need for multiple bulky chargers
• Powerful enough to replace a USB-C laptop power supply* when using a 100W-rated cable
• Perfect for hot-desking, receptions, cafés, hotels, and modern office environments

*Based on laptops using a 65W or below USB-C charger.

Charging Parameters:

1 port in use:

• USB-C1 – PD3.0 (Max. 60W)
• USB-C2 – PPS (Max. 63W) / PD3.0 (Max. 60W)
• USB-A – for legacy devices

2 ports in use:

• USB-C1 + USB-C2 = 45W + 18W (Max. 63W)
• USB-C1 + USB-A = 45W + 18W (Max. 63W)
• USB-C2 + USB-A = 15W shared (Max. 15W)

All ports in use:

• USB-C1 + USB-C2 + USB-A = 45W shared + 15W (Max. 60W)

Important: Always use certified USB cables for safety and compatibility. Ensure your USB-C cable is rated appropriately (100W recommended) to achieve maximum performance. Lower-rated cables will limit output to their supported power level.

Data Sheet:

Click here to view the full data sheet
