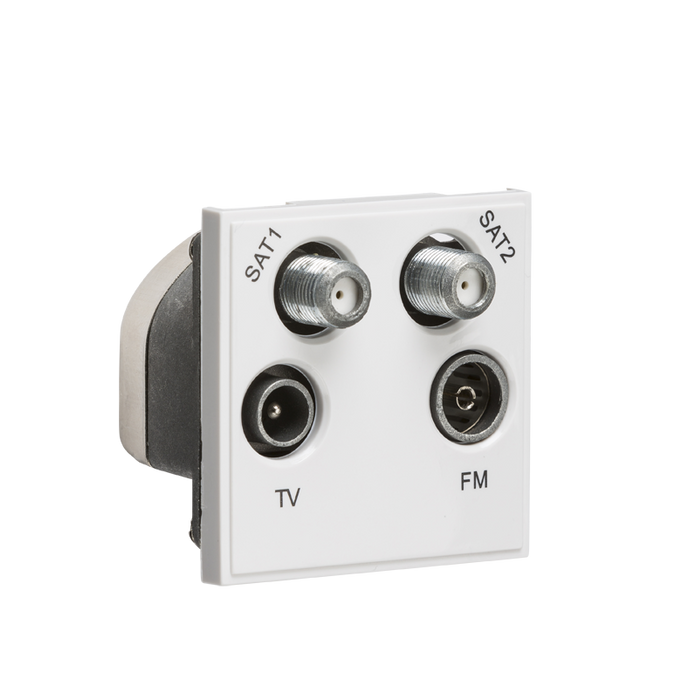

Knightsbridge NETQDWH Quadplex SAT1/2 +TV +FM +DAB Outlet 50x50mm - White

Knightsbridge Quadplex SAT1/2 + TV + FM + DAB Outlet 50 x 50mm – White

The Knightsbridge Quadplex SAT1/2 + TV + FM + DAB Outlet (50 x 50mm) provides a high-performance, fully screened connection solution ideal for multi-media and satellite installations. Designed for use with euro-module faceplates, this outlet combines Satellite 1 and 2, TV, and FM/DAB connections in one compact unit. It delivers low signal loss, minimal interference, and outstanding isolation—perfect for Sky™ and Sky+™ systems as well as other digital TV and radio applications.

Key Features

• Quadplex outlet – SAT1, SAT2, TV, FM/DAB connections
• Fully screened to EN 50083-2 for superior signal protection
• Low signal loss with minimal ingress and cross talk
• Compatible with cables featuring 1mm conductors (PF100, H109F, QF100, etc.)
• Easy cable access and installation
• Minimum mounting depth: 35mm
• Compact 50 x 50mm euro-module design

Benefits

• All-in-one connectivity: Combines satellite, TV, FM, and DAB outlets in one convenient module.
• Ideal for Sky™ systems: Supports Sky™ and Sky+™ installations with excellent signal integrity.
• Enhanced performance: Fully screened design reduces interference and ensures stable signal transmission.
• Simple installation: Easy access terminals make wiring quick and efficient.
• Professional finish: Sleek white design complements modern interiors and other Knightsbridge accessories.

Data Sheet:

Click Here for Data Sheet
