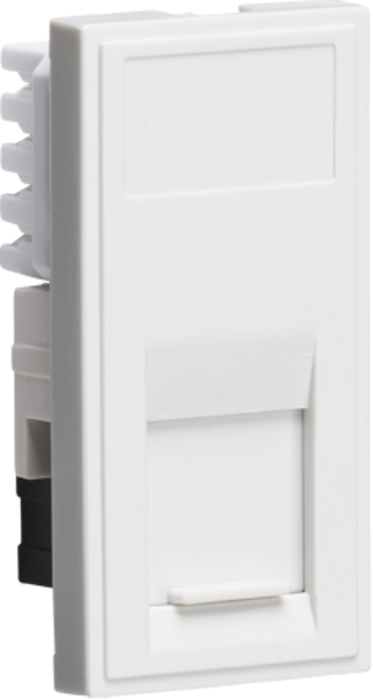

Knightsbridge NETC6AWH UTP CAT6A RJ45 Outlet module 25 x 50mm - White
Knightsbridge NETC6AWH UTP CAT6A RJ45 Outlet Module 25 x 50mm – White
The Knightsbridge NETC6AWH UTP CAT6A RJ45 Outlet Module combines elegant design with exceptional data performance. Featuring a sleek, screwless flat plate design that projects only 4.3mm from the wall, it provides a modern and discreet finish to any interior. Crafted from high-quality steel with a built-in protective gasket and coordinated metal shutter detail, this outlet offers long-lasting reliability and a premium aesthetic.
Key Features
- Single shuttered CAT6A unshielded RJ45 outlet
- Compliant with ANSI/TIA/EIA 568B.2-10 standards
- Compact 25 x 50mm Euro module format
- RJ45 socket connection
- IDC terminals compatible with 16–20AWG cable sizes
Product Benefits
- Superior data performance: Supports data transfer speeds up to 10Gbps over 100m, delivering a maximum bandwidth of 500MHz – double that of standard CAT6 cables (250MHz).
- Backwards compatible: Works seamlessly with CAT6 and CAT5e systems (note: overall performance limited by lowest-rated component).
- Reduced interference: Designed to minimise crosstalk for a more stable and reliable connection.
- Enhanced PoE support: Perfect for Power over Ethernet (PoE) devices such as IP cameras and smart home systems where mains power outlets are unavailable.
- Best performance: For optimum results, use with certified UTP CAT6A cabling.
