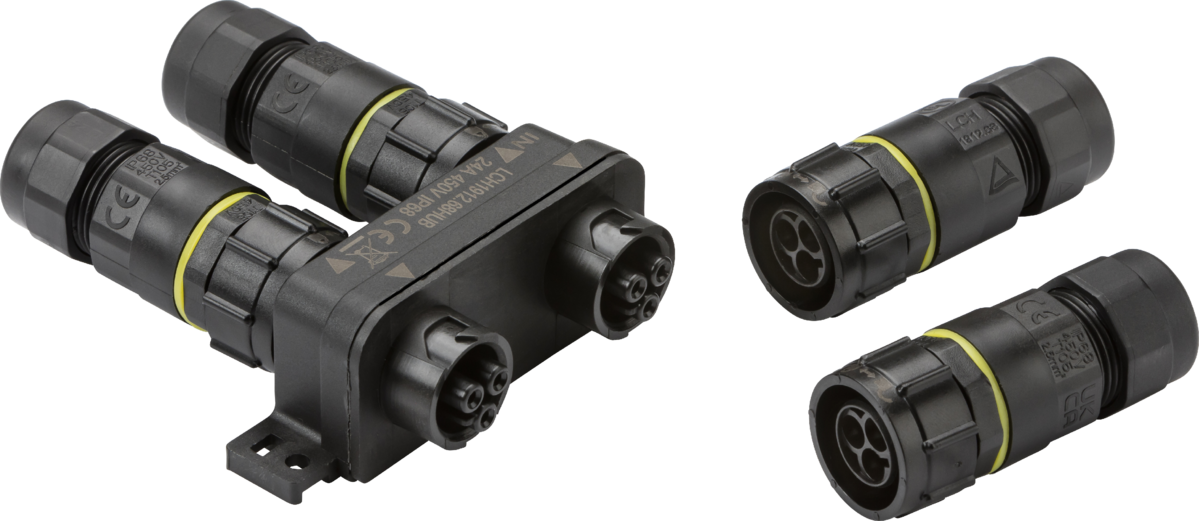

Knightsbridge JB0018 IP68 24A 1 Inlet to 3 Outlets Plug and Socket Type Weatherproof Hub

Name: Knightsbridge JB0018 IP68 24A 1 Inlet to 3 Outlets Plug and Socket Type Weatherproof Hub
Brand: Knightsbridge
SKU: JB0018
Price: 52.12 GBP
Availability: InStock

Availability:

Dispatch in 1-2 Days

SKU JB0018

£52.12 - £52.12

£43.43

Exc VAT

£52.12

Inc VAT

£52.12 - £52.12

£52.12

£43.43 - £43.43

£52.12

Product Description

Customer Reviews

Knightsbridge JB0018 IP68 24A 1 Inlet to 3 Outlets Plug and Socket Type Weatherproof Hub

The Knightsbridge JB0018 IP68 Weatherproof Power Hub offers a safe, reliable, and durable solution for outdoor and demanding environments. Featuring a plug and socket style connection with a secure twist-and-lock action, this mountable hub provides 1 inlet and 3 outlets, making it ideal for versatile power distribution. Supplied with sleeves for easy installation.

Key Features

IP68 rating (@5 bar) – fully dust-tight and resistant to long-term immersion in water
Rated at 24A, 450V PTI 250, T85 for robust performance
Durable PA66 construction with V-0 flame resistance, 960°C tested, and fitted with a silicone sealing gasket
Silver-plated stainless-steel lever terminals for superior conductivity and reliability
Supports rigid conductors or ferruled ends (push-fit by hand); flexible conductors require pressing the button with a screwdriver during insertion
Cable diameter compatibility: 5mm minimum – 14mm maximum
Designed for use with H07RNF 3G 0.75mm² – 2.5mm² cable
Operating Temperature Range: -30°C to +85°C
Storage Temperature Range: -30°C to +85°C
Barometric Pressure Range: 86–106 kPa

Data Sheet:

Click Here for Data Sheet

Product Description

Knightsbridge JB0018 IP68 24A 1 Inlet to 3 Outlets Plug and Socket Type Weatherproof Hub

The Knightsbridge JB0018 IP68 Weatherproof Power Hub offers a safe, reliable, and durable solution for outdoor and demanding environments. Featuring a plug and socket style connection with a secure twist-and-lock action, this mountable hub provides 1 inlet and 3 outlets, making it ideal for versatile power distribution. Supplied with sleeves for easy installation.

Key Features

IP68 rating (@5 bar) – fully dust-tight and resistant to long-term immersion in water
Rated at 24A, 450V PTI 250, T85 for robust performance
Durable PA66 construction with V-0 flame resistance, 960°C tested, and fitted with a silicone sealing gasket
Silver-plated stainless-steel lever terminals for superior conductivity and reliability
Supports rigid conductors or ferruled ends (push-fit by hand); flexible conductors require pressing the button with a screwdriver during insertion
Cable diameter compatibility: 5mm minimum – 14mm maximum
Designed for use with H07RNF 3G 0.75mm² – 2.5mm² cable
Operating Temperature Range: -30°C to +85°C
Storage Temperature Range: -30°C to +85°C
Barometric Pressure Range: 86–106 kPa

Data Sheet:

Click Here for Data Sheet
