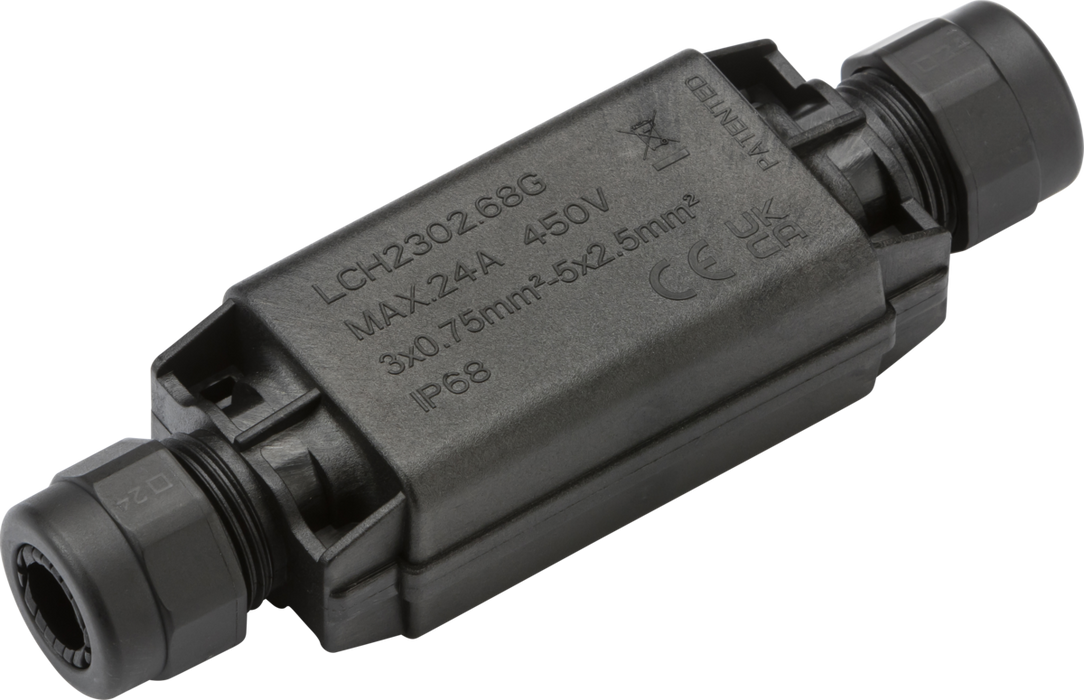

Knightsbridge JB0016 IP68 24A Inline Weatherproof Gel Box

Name: Knightsbridge JB0016 IP68 24A Inline Weatherproof Gel Box
Brand: Knightsbridge
SKU: JB0016
Price: 12.2 GBP
Availability: InStock

Availability:

Dispatch in 1-2 Days

SKU JB0016

£12.20 - £12.20

£10.17

Exc VAT

£12.20

Inc VAT

£12.20 - £12.20

£12.20

£10.17 - £10.17

£12.20

Product Description

Customer Reviews

Knightsbridge JB0016 IP68 24A Inline Weatherproof Gel Box

The Knightsbridge JB0016 Inline Weatherproof Gel Box provides a secure and maintenance-free solution for protecting electrical connections in outdoor and harsh environments. Supplied prefilled with insulating gel, along with sleeves and a lever connector, this box ensures long-lasting safety against water and dust ingress.

Key Features

IP68 rated (@5 bar) – fully dustproof and watertight, resistant to immersion
Rated at 24A, 250V/450V PTI 250, T85
Constructed from tough PA66 with V-0 flame resistance, 960°C tested, and fitted with a silicone sealing gasket
Prefilled with insulating gel and supplied with cable sleeves and lever connector
Cable diameter range: 5mm minimum – 14mm maximum
Equipped with M22 size cable glands for a secure and reliable seal
Compatible with H07RNF 3G 0.75mm² – 2.5mm² cable
Operating temperature range: -30°C to +85°C
Storage temperature range: -30°C to +85°C
Barometric pressure range: 86–106 kPa

Data Sheet:

Click Here for Data Sheet

Product Description

Knightsbridge JB0016 IP68 24A Inline Weatherproof Gel Box

The Knightsbridge JB0016 Inline Weatherproof Gel Box provides a secure and maintenance-free solution for protecting electrical connections in outdoor and harsh environments. Supplied prefilled with insulating gel, along with sleeves and a lever connector, this box ensures long-lasting safety against water and dust ingress.

Key Features

IP68 rated (@5 bar) – fully dustproof and watertight, resistant to immersion
Rated at 24A, 250V/450V PTI 250, T85
Constructed from tough PA66 with V-0 flame resistance, 960°C tested, and fitted with a silicone sealing gasket
Prefilled with insulating gel and supplied with cable sleeves and lever connector
Cable diameter range: 5mm minimum – 14mm maximum
Equipped with M22 size cable glands for a secure and reliable seal
Compatible with H07RNF 3G 0.75mm² – 2.5mm² cable
Operating temperature range: -30°C to +85°C
Storage temperature range: -30°C to +85°C
Barometric pressure range: 86–106 kPa

Data Sheet:

Click Here for Data Sheet
