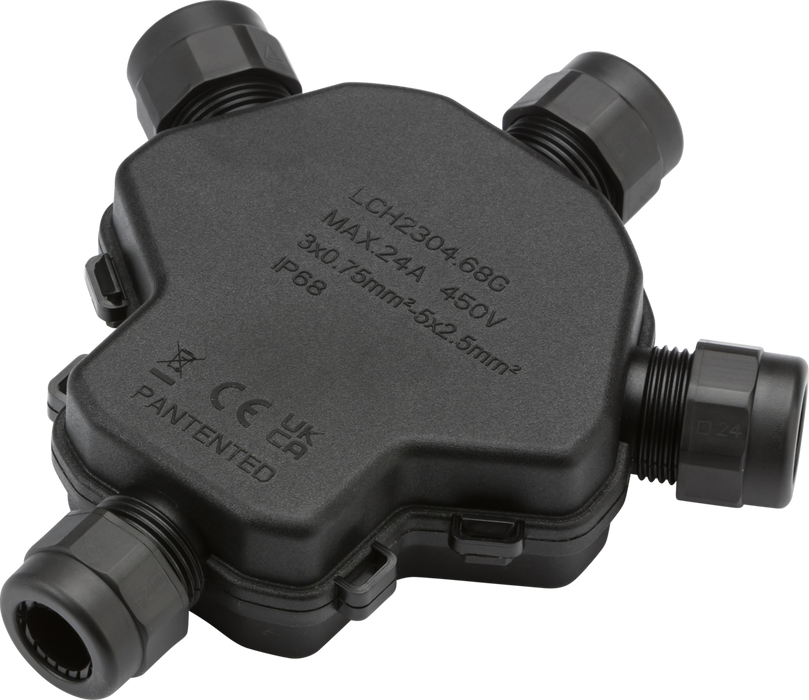

Knightsbridge JB0015 IP68 4-Way Weatherproof Gel Junction Box

Name: Knightsbridge JB0015 IP68 4-Way Weatherproof Gel Junction Box
Brand: Knightsbridge
SKU: JB0015
Price: 22.15 GBP
Availability: InStock

Availability:

Dispatch in 1-2 Days

SKU JB0015

£22.15 - £22.15

£18.46

Exc VAT

£22.15

Inc VAT

£22.15 - £22.15

£22.15

£18.46 - £18.46

£22.15

Product Description

Customer Reviews

Knightsbridge JB0015 IP68 4-Way Weatherproof Gel Junction Box

The Knightsbridge JB0015 4-Way Weatherproof Gel Junction Box offers a highly reliable and durable solution for outdoor electrical connections. Prefilled with insulating gel and supplied with sleeves and a 1-to-3 lever connector, this junction box ensures long-lasting protection against water and dust ingress, making it ideal for challenging environments.

Key Features

IP68 rated (@5 bar) – fully dustproof and watertight, resistant to immersion
Rated for 24A, 250V/450V PTI 250, T85
Made from durable PA66 with V-0 flame resistance, 960°C tested, with silicone sealing gasket
Comes prefilled with gel, supplied with cable sleeves and a 1-to-3 lever connector
Cable diameter range: 5mm minimum – 14mm maximum
Fitted with M22 size cable glands for a secure seal
Suitable for H07RNF 3G 0.75mm² – 2.5mm² cable
Operating temperature: -30°C to +85°C
Storage temperature: -30°C to +85°C
Barometric pressure range: 86–106 kPa

Data Sheet:

Click Here for Data Sheet

Product Description

Knightsbridge JB0015 IP68 4-Way Weatherproof Gel Junction Box

The Knightsbridge JB0015 4-Way Weatherproof Gel Junction Box offers a highly reliable and durable solution for outdoor electrical connections. Prefilled with insulating gel and supplied with sleeves and a 1-to-3 lever connector, this junction box ensures long-lasting protection against water and dust ingress, making it ideal for challenging environments.

Key Features

IP68 rated (@5 bar) – fully dustproof and watertight, resistant to immersion
Rated for 24A, 250V/450V PTI 250, T85
Made from durable PA66 with V-0 flame resistance, 960°C tested, with silicone sealing gasket
Comes prefilled with gel, supplied with cable sleeves and a 1-to-3 lever connector
Cable diameter range: 5mm minimum – 14mm maximum
Fitted with M22 size cable glands for a secure seal
Suitable for H07RNF 3G 0.75mm² – 2.5mm² cable
Operating temperature: -30°C to +85°C
Storage temperature: -30°C to +85°C
Barometric pressure range: 86–106 kPa

Data Sheet:

Click Here for Data Sheet
