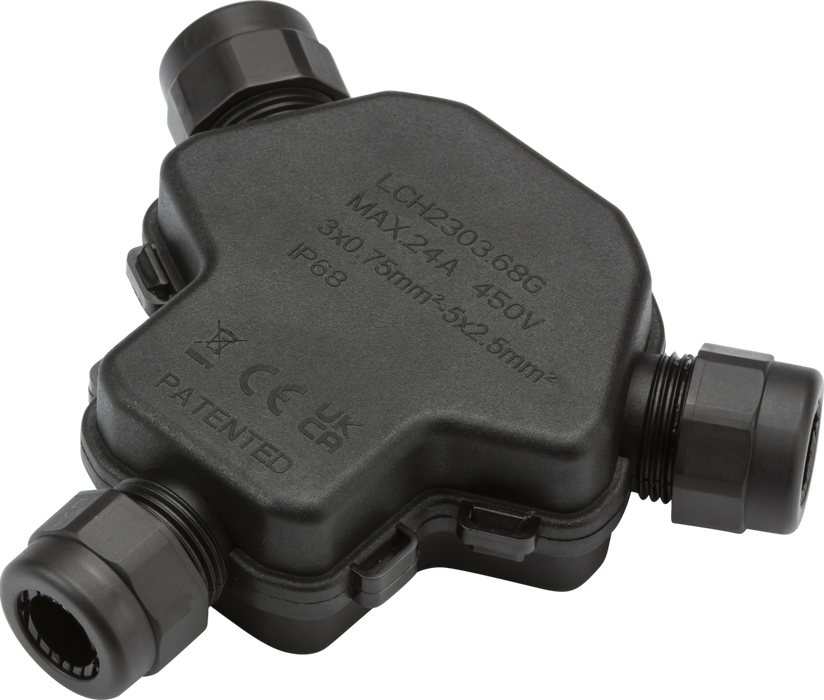

Knightsbridge JB0014 IP68 3-Way Weatherproof Gel Junction Box
The Knightsbridge JB0014 3-Way Weatherproof Gel Junction Box is designed for safe and reliable electrical connections in outdoor and demanding environments. Supplied prefilled with insulating gel, this unit includes sleeves and a 1-to-2 lever connector for quick, hassle-free installation with long-lasting protection against dust and water ingress.
Key Features
- IP68 rated (@5 bar) – dust-tight and resistant to prolonged immersion in water
- Rated for 24A, 250V/450V PTI 250, T85
- Constructed from tough PA66 with V-0 flame resistance, 960°C tested, with silicone sealing gasket
- Comes prefilled with gel and includes sleeves plus a 1-to-2 lever connector
- Cable diameter range: 5mm minimum – 14mm maximum
- Equipped with M22 size cable glands for enhanced sealing
- Compatible with H07RNF 3G 0.75mm² – 2.5mm² cable
- Operating temperature: -30°C to +85°C
- Storage temperature: -30°C to +85°C
- Barometric pressure range: 86–106 kPa
Data Sheet:
