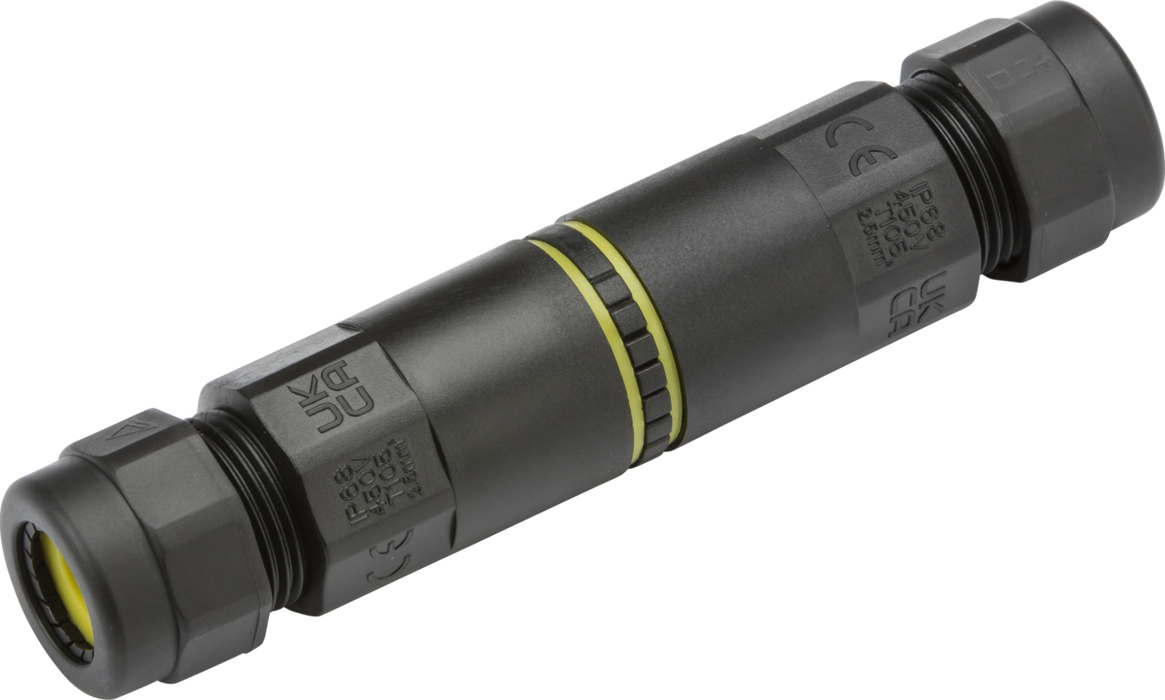

Knightsbridge JB0013 IP68 24A Weatherproof Inline Connector with Lever Terminals (3 Pole)

Name: Knightsbridge JB0013 IP68 24A Weatherproof Inline Connector with Lever Terminals (3 Pole)
Brand: Knightsbridge
SKU: JB0013
Price: 8.99 GBP
Availability: InStock

Availability:

Dispatch in 1-2 Days

SKU JB0013

£8.99 - £8.99

£7.49

Exc VAT

£8.99

Inc VAT

£8.99 - £8.99

£8.99

£7.49 - £7.49

£8.99

Product Description

Customer Reviews

Knightsbridge JB0013 IP68 24A Weatherproof Inline Connector with Lever Terminals (3 Pole)

The Knightsbridge JB0013 IP68 Inline Connector provides a secure and durable solution for extending or repairing electrical connections in outdoor or demanding environments. Featuring lever terminals for tool-free installation, this 3-pole connector is ideal for both above-ground and underwater applications where reliability is essential.

Key Features

IP68 rated (@5 bar) – dust-tight and fully resistant to water immersion
Supports up to 24A, 250V/450V PTI 250, T85
Manufactured from tough PA66 with V-0 flame resistance, 960°C tested, and silicone sealing gasket for maximum protection
High-quality silver-plated stainless-steel lever terminals for secure and reliable connections
Quick and simple tool-free installation with lever terminals
Cable diameter range: 5mm minimum – 14mm maximum
Equipped with M22 size cable glands for robust sealing
Designed for use with H07RNF 3G 0.75mm² – 2.5mm² cable
Operating temperature: -30°C to +85°C
Storage temperature: -30°C to +85°C
Barometric pressure: 86–106 kPa

Data Sheet:

Click Here for Data Sheet

Product Description

Knightsbridge JB0013 IP68 24A Weatherproof Inline Connector with Lever Terminals (3 Pole)

The Knightsbridge JB0013 IP68 Inline Connector provides a secure and durable solution for extending or repairing electrical connections in outdoor or demanding environments. Featuring lever terminals for tool-free installation, this 3-pole connector is ideal for both above-ground and underwater applications where reliability is essential.

Key Features

IP68 rated (@5 bar) – dust-tight and fully resistant to water immersion
Supports up to 24A, 250V/450V PTI 250, T85
Manufactured from tough PA66 with V-0 flame resistance, 960°C tested, and silicone sealing gasket for maximum protection
High-quality silver-plated stainless-steel lever terminals for secure and reliable connections
Quick and simple tool-free installation with lever terminals
Cable diameter range: 5mm minimum – 14mm maximum
Equipped with M22 size cable glands for robust sealing
Designed for use with H07RNF 3G 0.75mm² – 2.5mm² cable
Operating temperature: -30°C to +85°C
Storage temperature: -30°C to +85°C
Barometric pressure: 86–106 kPa

Data Sheet:

Click Here for Data Sheet
