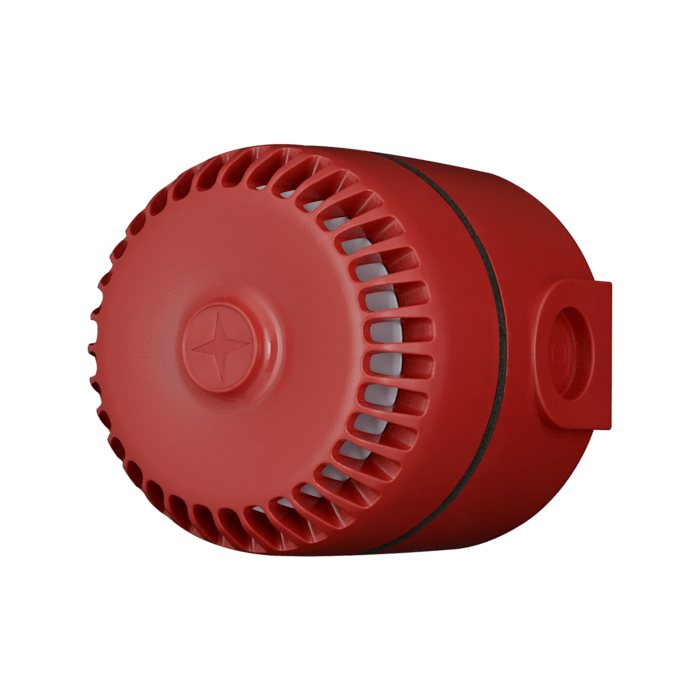

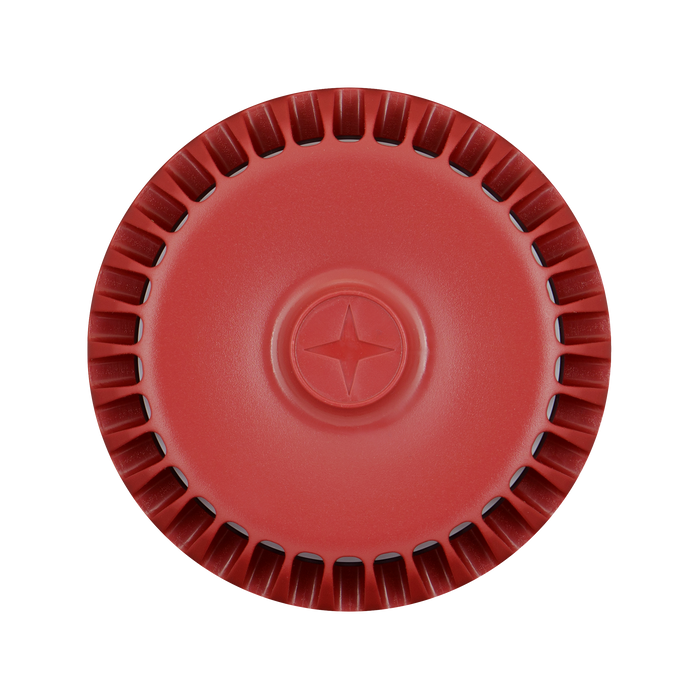

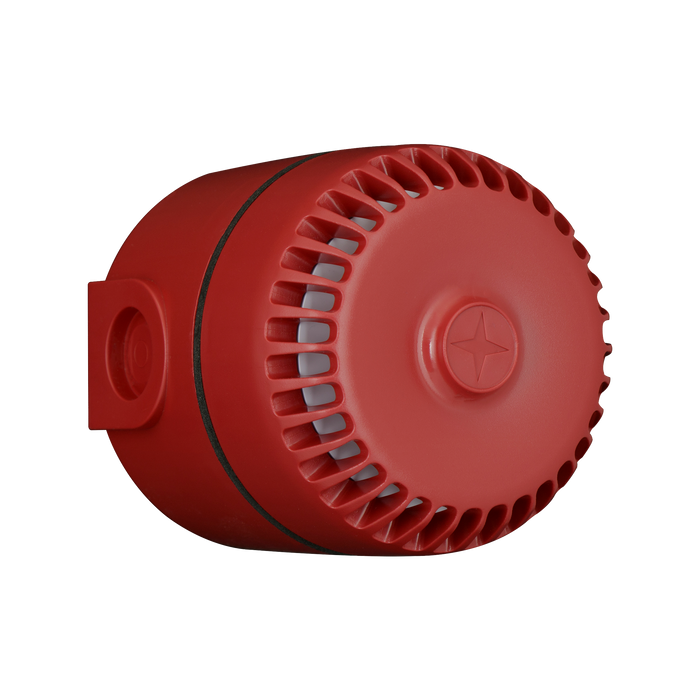

Kidde 547026FULL-810 Indoor/Outdoor IP65 230V Sounder c/w Mains Module
Kidde 547026FULL-810 Indoor/Outdoor IP65 230V Sounder with Mains Module
The Kidde 547026FULL-810 Sounder is a high-performance audible alarm designed for both indoor and outdoor environments. With a rugged IP65 enclosure, this unit provides reliable alert signalling in a wide range of installations, including commercial, industrial and residential safety systems.
Supplied with a wall-mount base, the sounder supports both 110VAC and 230VAC connections. It integrates seamlessly with Kidde hard-wired alarm systems via the RBUN Relay Module and is also fully compatible with Cavius RF battery and mains RF alarms through the Cavius 9004 Relay Module. This makes it a versatile and dependable addition to multi-brand fire safety setups.
Key Features
- Loud 102dB(A) sound output for effective audible alerting.
- 32 user-selectable tones to suit a variety of alarm requirements.
- Two-stage alarm capability for pre-alert and full-alarm signalling.
- Automatic tone synchronisation across multiple connected units.
- 12-month manufacturer’s warranty included.
Specifications
- Voltage (Sounder): 18V–28V DC
- Current Rating (Sounder): 12mA (Typical – Tone 3)
- Voltage (Base): 110V–230V AC (50/60Hz)
- Output (Base): 100mA @ 24V DC
- Sound Output: 102dB(A) (Typical – Tone 3)
- Tones: 32 user-selectable
- Volume Control: Adjustable up to 10dB
- Monitoring: Reverse polarity
- Operating Temperature: –40°C to +55°C
- IP Rating: IP65
- Material: ABS
- Colour: Red
- Approvals: CE tested and certified
