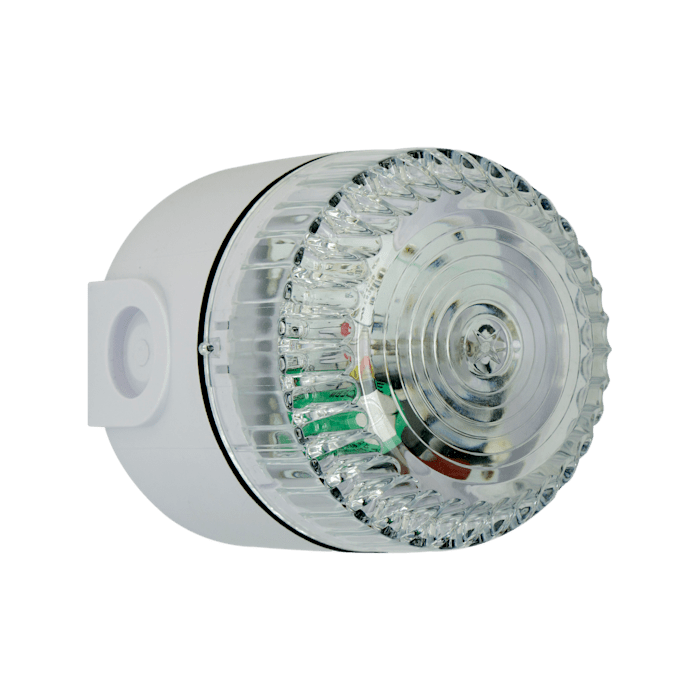

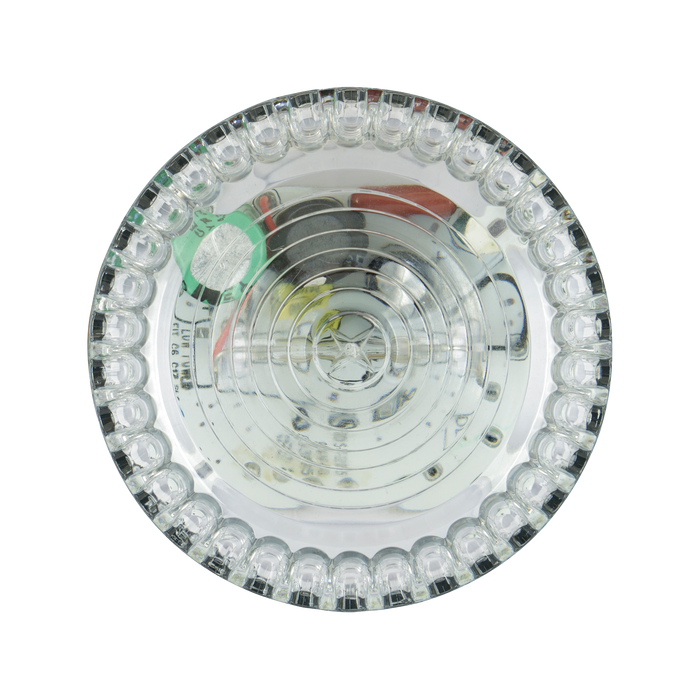

Kidde 531042FULL-1160 Indoor/Outdoor IP65 230V White Beacon with Mains Module

The Kidde 531042FULL-1160 White Beacon is a high-visibility indoor and outdoor visual signalling device designed for use in fire alarm and warning systems. Featuring a powerful Solex xenon flash and robust IP65-rated housing, this beacon is ideal for environments where a clear visual alert is essential, even in more demanding conditions.

Supplied with a wall-mount base, the unit allows straightforward connection to 110VAC or 230VAC supplies. It is compatible with Kidde hard-wired alarms via the Kidde RBUN Relay Module, and integrates seamlessly with the Cavius RF battery alarm range and Cavius RF mains alarms via the Cavius 9004 Relay Module.

Key Features

• Solex xenon beacon for bright, reliable visual signalling.
• Clear lens with white base for a clean, modern appearance.
• Synchronised flash for consistent and easily identifiable alerts.
• Indoor and outdoor use with IP65-rated protection.
• Supplied with wall-mount base for simple mains installation.
• 12-month manufacturer’s warranty included.

Specifications

• Voltage (Lens): 9V–60V DC
• Current (Lens): 88mA
• Voltage (Base): 110V–230V AC (50/60Hz)
• Output (Base): 100mA @ 24V DC
• Light Output: 10 cd
• Flash Rate: Single flash at 1Hz (60 flashes per minute)
• Monitoring: Reverse polarity
• Operating Temperature: –40°C to +55°C
• IP Rating: IP65
• Material: ABS
• Colour: Clear lens with white base
• Approvals: CE tested and certified

Downloads

Data Sheet:

Click here to download the Data Sheet

Instruction Manual:

Click here to download the Instruction Manual
