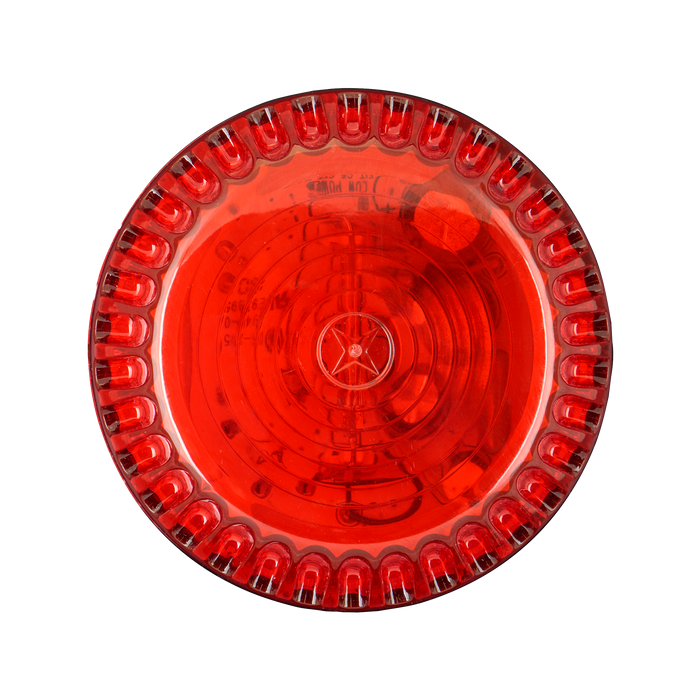

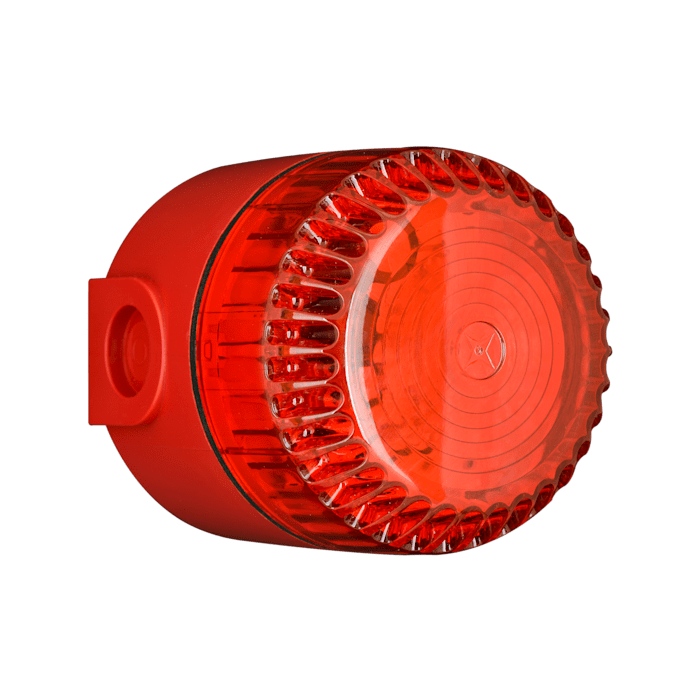

Kidde 531024FULL-1049 Indoor/Outdoor IP65 230V Red Beacon with Mains Module

The Kidde 531024FULL-1049 Red Beacon is a durable indoor/outdoor visual signalling unit designed to provide a clear and reliable xenon flash indication in fire safety and alert systems. Featuring an IP65-rated enclosure, this beacon is suitable for challenging environments where weather resistance and long-term reliability are essential.

Supplied with a wall-mount base for easy installation, the beacon supports both 110VAC and 230VAC input supplies. It is fully compatible with Kidde hard-wired alarm systems via the Kidde RBUN Relay Module, and can also be integrated with Cavius RF battery alarms and Cavius RF mains alarms through the Cavius 9004 Relay Module—making it a versatile choice for a wide range of alarm configurations.

Key Features

• Solex xenon beacon with strong, clear red lens and red base.
• Synchronised flash output for consistent, visible alert signalling.
• Suitable for indoor and outdoor use thanks to IP65 protection.
• Supplied with wall-mount base for easy AC mains installation.
• 12-month manufacturer’s warranty included.

Specifications

• Voltage (Lens): 9V–60V DC
• Current (Lens):
• Voltage (Base): 110V–230V AC (50/60Hz)
• Output (Base): 100mA @ 24V DC
• Light Output: 10 cd
• Flash Rate: Single flash at 1Hz (60 flashes per minute)
• Monitoring: Reverse polarity
• Operating Temperature: –40°C to +55°C
• IP Rating: IP65
• Material: ABS
• Colour: Red lens with red base
• Approvals: CE tested and certified

Downloads

Data Sheet:

Click here to download the Data Sheet

Instruction Manual:

Click here to download the Instruction Manual
