Kewtech KT66EV Kit with KT66DL 12in1 MFT & KEWEVA (EV Charging Point Testing Adapter)

Kewtech KT66EV Kit with KT66DL 12in1 MFT & KEWEVA (EV Charging Point Testing Adapter)

The KT66EVA multifunction tester is your go to solution for EV charge point commissioning.

This kit provides a simple solution for all installation testing, especially those with electrical vehicle charging points. As well as the comprehensive KT66DL multifunction tester, this kit comes complete with the KEWEVA…the most straight forward EV charge point adapter on the market with no awkward cable.

You can download the KEW REPORT software for the KT66DL here…Download Software.

Key Benefits:

• Large colour dot matrix screen
• Established easy to use interface with one rotary dial and four function keys
• Includes KEWEVA adapter for simple testing EV charging points
• Simultaneous display of L-N, L-N, L-E voltage (TRMS)
• Max Zs tables for current and old standards
• Comprehensive RCD function including type EV & B and variable RCD test
• Three modes of starting a test: single press of the test button, continuous testing and by test button in the test probe
• Advanced memory - assigns DB, circuit no. ad type of test i.e. Zs or Ze
• Help display
• Touch voltage pad with selectable limits
• Padded neck strap

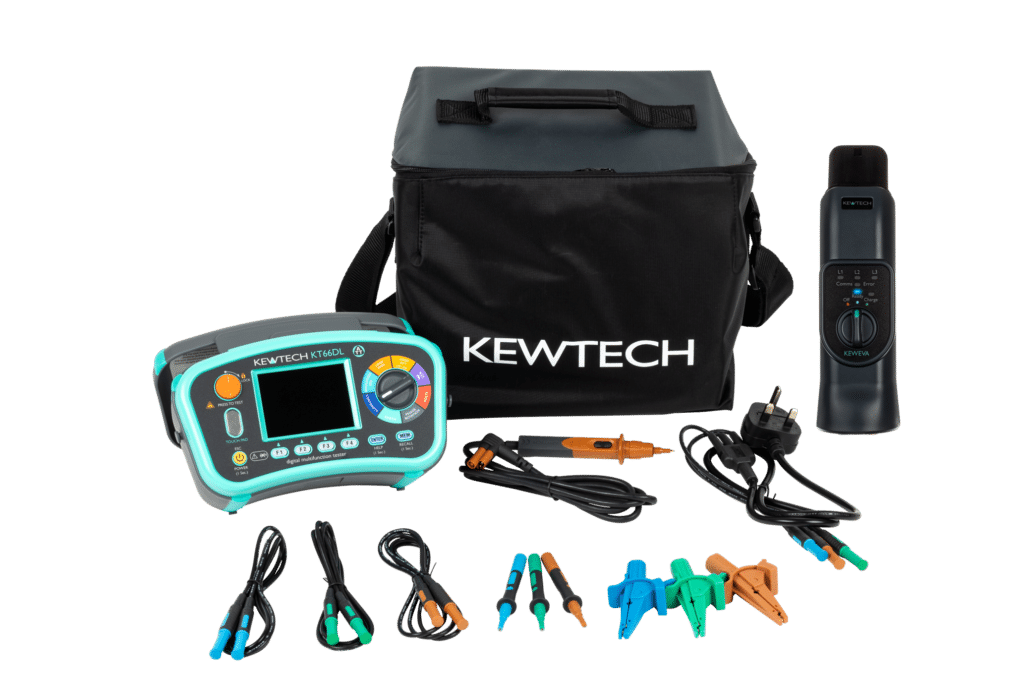

• Comes complete with KT66DL, KEWEVA, soft canvas bag, mains lead, DB leads, remote test probe and software

Key Features:

• Two high current loop options: 25A 0.001 Ohm resolution & 6A 0.01 Ohm resolution
• Two low current loop options: 3 wire & 2 wire
• 55V loop test capability - suitable for 110V CTE systems
• EVSE loop option
• RCD - Tests Type AC, ACS, A, AS, F, B, BS & EV
• EVSE 6mA DC ramp and tripping time test
• UC - contact voltage test
• Insulation: 4 test voltages, resistance bar graph & DAR / PI functionality
• Two continuity tests 200mA & 15mA
• Dual display of PFC / PSC with a PFC range of 50KA
• SPD testing with both DC & AC breakdown voltage displayed, 1000V range
• Earth resistance 3 & 2 wire options
• Phase rotation
• PAT function including download
• True RMS Voltage measurements 2-600V, mains frequency
• Advanced memory
• KEWEVA - For type 2 charge points
• Comms light - auto check of control pilot (CP)
• Single and three phase charger compatibility
• Single dial operation
• Compact unit with no cable
