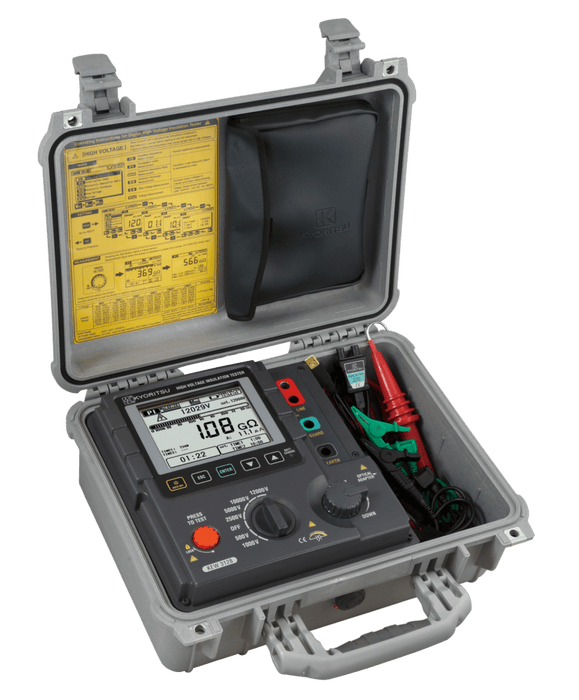

Kewtech KEW3128 12kV Digital HV Insulation Tester

Kewtech KEW3128 12kV Digital HV Insulation Tester

Microprocessor controlled high voltage insulation resistance tester with Diagnostic functions.

Suitable for analyzing the insulation characteristics of cables, transformers, motors, generators, high-pressure switches, insulators, wiring installations, etc.

Key Benefits:

• High current for fast testing even with large capacitive circuits
• Measures insulation resistance up to 35T? and has large graphic display
• Memory and logging functions comes with dedicated application software
• Filter function and capacitance and leakage measurements
• Polarisation Index, Dielectric discharge, Dielectric Absorption, Step voltage measurement

Key Features:

• Test voltage: 500V, 1000V, 2500V, 5000V, 10000V & 12000V
• 5mA short circuit test current
• Fine adjustment of voltage setting at each range is also possible
• Graphic representation of the insulation resistance and leakage current versus time on large display with bar graph and backlight
• Can be operated from built-in rechargeable battery or from AC line
• Automatic discharge after test with monitoring of the discharge voltage
• Print screen function enables to record up to 32 display screens
• Internal memory can store about 40,000 data
• Robust design for field use with IP64 rating (with lid closed)
