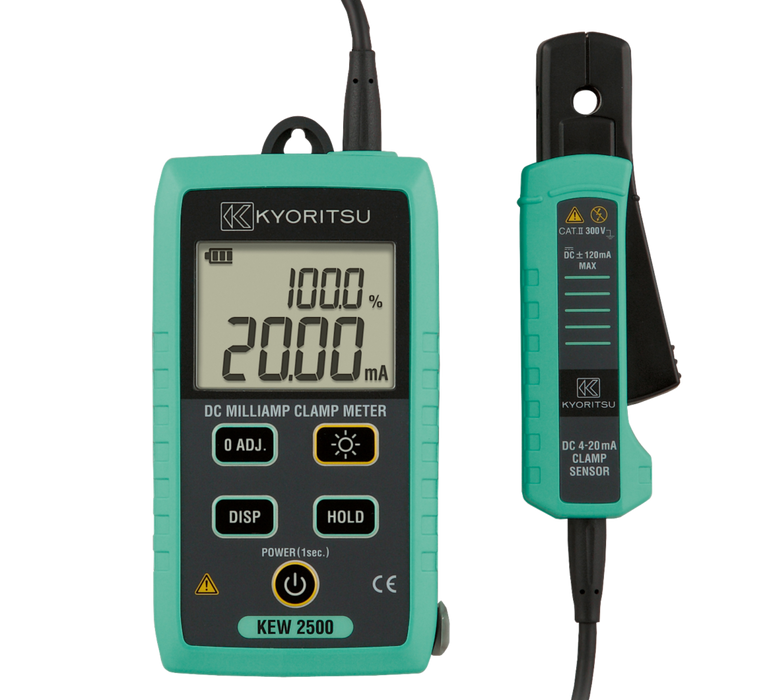

Kewtech KEW2500 DC Milliamp Clamp Meter
The KEW2500 Measures DC mA signals used in industrial automation equipment, PLC, transmitters, process control and analogue I/0 systems without breaking the loop. Not only is it ideal for measuring the level of 4-20 mA signals correlating process indication with real physical value, but is also very useful to maintain and troubleshoot automation equipment without breaking the loop and stopping the process.
Run on just four AA batteries, the KEW2500 is designed to work in tight and dark spaces with a spotlight LED and a backlight display. In addition, the analogue output terminal means you can connect the device to your Digital Multimeter, Recorder or Logger.
Key Features:
- 0.01mA resolution for DC current
- Top class measurement 0.2% accuracy
- ?6mm clamp jaw easy to use in tight places
- Measurement from 0.01mA to 120.0mA
- Dual display with backlight shows both mA measurement and percent of 4-20 mA span
- Spotlight for illuminating measurement point
- Analog output terminal for recorder connection
- Complies with IEC61010-1 CAT.?300V
Data Sheet:
Click Here for Data Sheet
