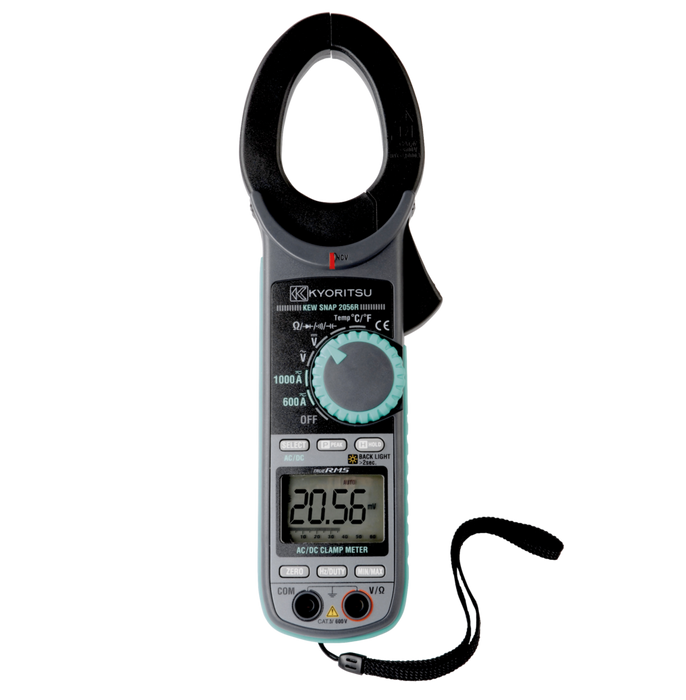

Kewtech KEW2056R TRMS AC/DC 1000A & 600V Data Hold 40mm Jaw

Kewtech KEW2056R TRMS AC/DC 1000A & 600V Data Hold 40mm Jaw

True RMS means that the KEW2056R will read accurately even with distorted sine waves and its DMM functionality gives you two instruments in one!
In max/min hold the auto sleep function is disabled – this means that you can leave it monitoring for a couple of days to capture your maximum demand.
Cat IV high safety specification.

Key Benefits:

• Cat IV high safety specification
• True RMS
• DMM functionality
• Non-contact voltage indicator (LED)
• Complies to IEC61010-1 CAT. IV 600V

Key Features:

• True RMS for highly accurate readings
• Measures both very low and high power circuits
• Measures current up to 1000A AC/DC
• Measures voltage up to 600V AC/DC
• Min/Max memory for extended testing
• Continuity buzzer
• Frequency
• Capacitance
• Temperature measurement (with optional KEW8216 temperature probe)
• Non-contact voltage indicator (LED)
• Display: 6039 counts with bar graph
• Lowest resolution 0.1A

Instruction Manual:

Data Sheet:
