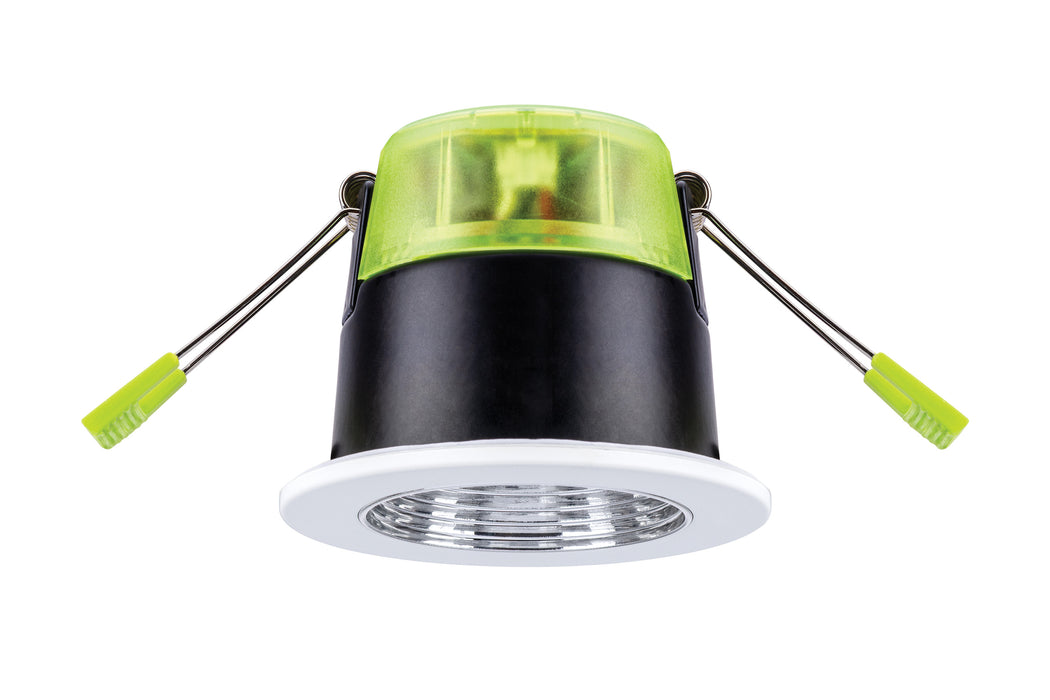

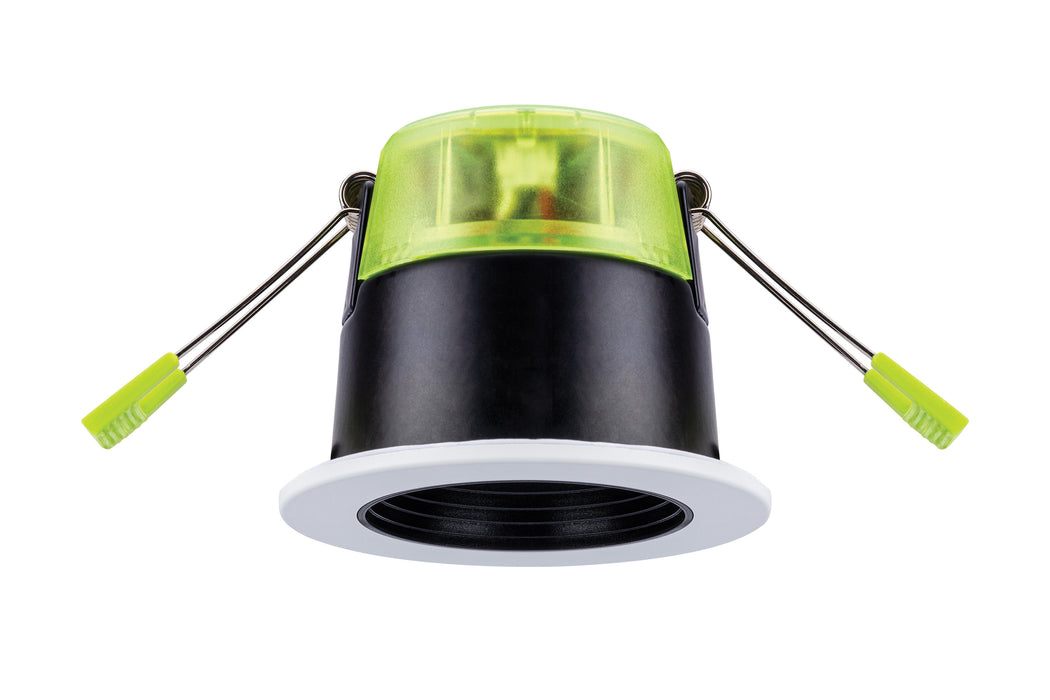

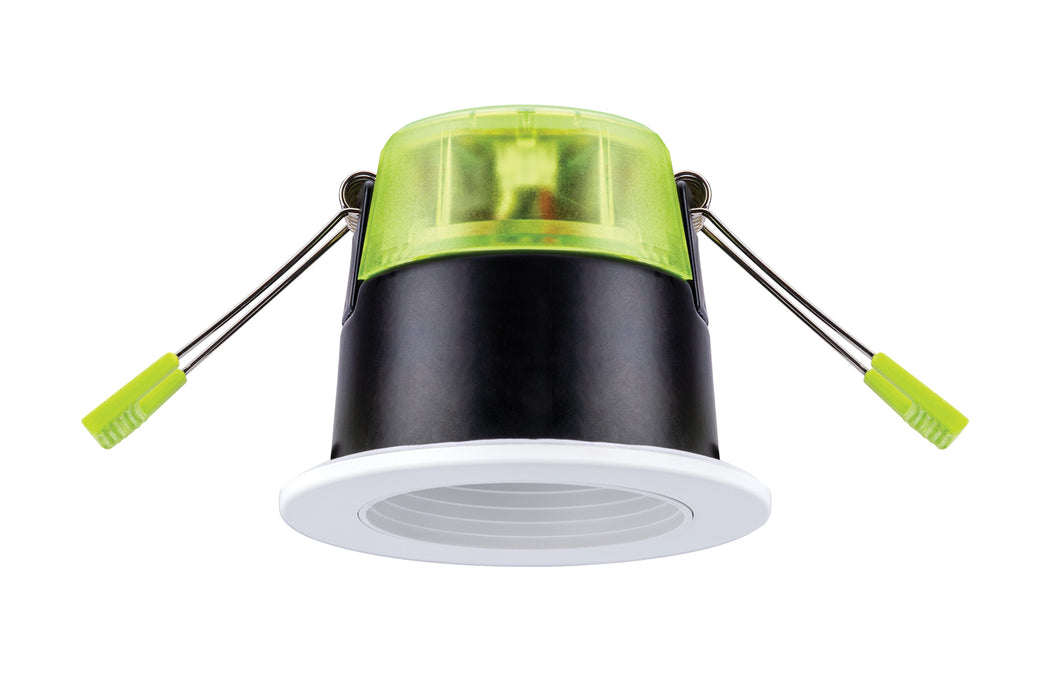

Integral ILDLFR70X101 XFire Lux Recessed CCT & Wattage Switchable Fire-Rated LED Downlight 3.4W/5.3W 678lm Dimmable - White
The Integral XFire Lux ILDLFR70X101 is a premium recessed fire-rated LED downlight designed to deliver stylish, comfortable and energy-efficient illumination. Featuring a deep-recessed comfort baffle to minimise glare, this sophisticated ceiling light combines adjustable wattage, four selectable colour temperatures and high-quality CRI 90 lighting. Supplied with a white bezel and interchangeable black and white baffles, it offers flexible styling for contemporary residential and commercial interiors.
Designed for versatile lighting applications, the XFire Lux features front-accessible wattage switching between 3.4W and 5.3W, delivering 435 lumens and 678 lumens respectively. With a luminous efficacy of up to 125lm/W, this energy-efficient LED downlight provides excellent illumination while helping to reduce electricity consumption.
The integrated CCT switch allows users to choose between four colour temperatures: 2400K Extra Warm White, 2700K Warm White, 3000K Warm White and 4000K Cool White. Combined with dimmable functionality, these settings provide excellent flexibility for creating comfortable ambient lighting or brighter, functional illumination in living rooms, bedrooms, kitchens, hallways, hotels and commercial spaces.
A key feature of the XFire Lux range is its deep-recessed anti-glare design, which helps reduce direct glare and improve visual comfort. The included black and white baffles allow the appearance of the fitting to be customised, while the 60° beam angle provides effective light distribution. Its CRI 90 rating ensures accurate colour reproduction, helping interior finishes, furnishings and decorative features appear natural and vibrant.
Installation is simplified with a two-part LENNEL fast connector featuring secure latching terminals. Combining fire-rated construction with premium aesthetics and adjustable lighting performance, the Integral XFire Lux is an excellent choice for professional lighting installations and interior refurbishment projects.
Key Features:
- Premium recessed fire-rated LED downlight from the Integral XFire Lux range.
- Deep-recessed comfort baffle designed to minimise glare and enhance visual comfort.
- Supplied with a white bezel and interchangeable black and white baffles.
- Front-accessible wattage switching between 3.4W and 5.3W.
- Delivers 435 lumens at 3.4W or 678 lumens at 5.3W.
- High luminous efficacy of up to 125lm/W for energy-efficient lighting.
- Four selectable colour temperatures: 2400K, 2700K, 3000K and 4000K.
- Front-accessible CCT controls for convenient lighting adjustment.
- CRI 90 colour rendering for natural and accurate colour appearance.
- Dimmable functionality for flexible brightness control.
- 60° beam angle for effective general and accent illumination.
- Interchangeable baffles provide versatile interior styling options.
- Two-part LENNEL fast connector with latching terminals for straightforward installation.
- Fire-rated construction for suitable recessed ceiling applications.
- Ideal for living rooms, bedrooms, kitchens, hotels, offices and other interior spaces.
Technical Specifications:
- Manufacturer: Integral LED
- Product Code: ILDLFR70X101
- Product Range: XFire Lux Recessed
- Product Type: Fire-Rated Recessed LED Downlight
- Power Consumption: 3.4W / 5.3W Switchable
- Luminous Flux: 435lm / 678lm
- Luminous Efficacy: 125lm/W
- Colour Temperature: 2400K / 2700K / 3000K / 4000K
- Colour Rendering Index: CRI 90
- Beam Angle: 60°
- Fire-Rated: Yes
- Dimmable: Yes
- Design: Deep-Recessed Low-Glare
- Bezel Finish: White
- Included Baffles: Black and White
- Wattage Adjustment: Front-Accessible Switch
- CCT Adjustment: Front-Accessible Switch
- Connection Type: Two-Part LENNEL Fast Connector with Latching Terminals
- Installation Type: Recessed Ceiling Mounting
Data Sheet:
Click Here for Data Sheet
