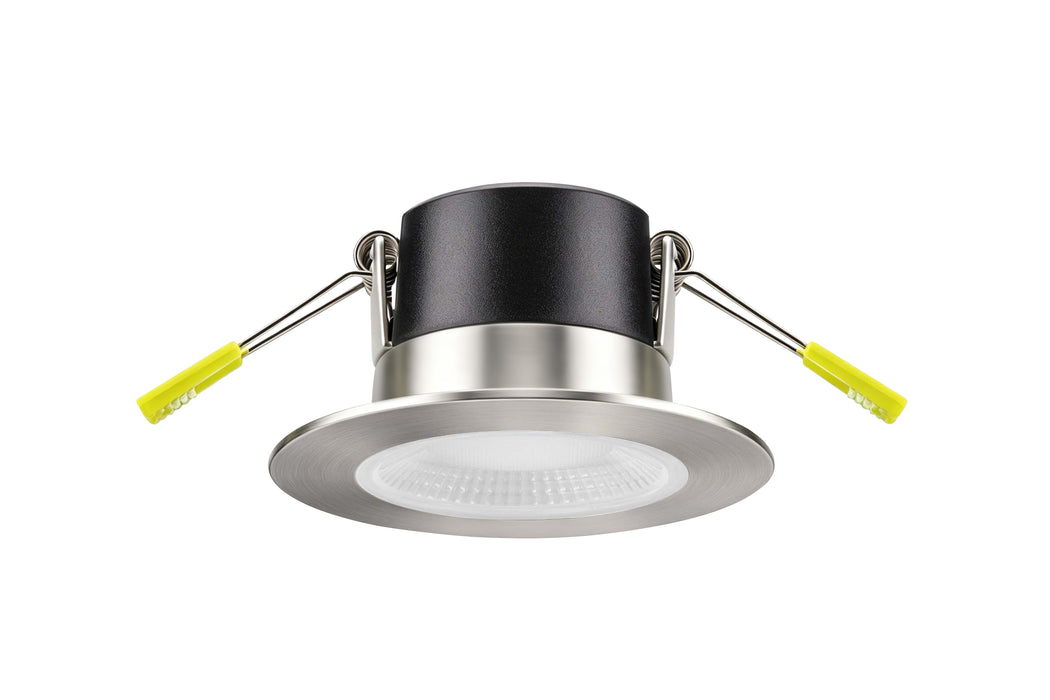

Integral ILDLFR70S003 XFire Core 6W CCT Switchable Fire-Rated LED Downlight 780lm IP65 Dimmable - Brushed Nickel

The Integral XFire Core ILDLFR70S003 is a versatile 6W fire-rated LED downlight designed to deliver efficient, high-quality illumination with a sophisticated brushed nickel finish. Producing 780 lumens at an impressive efficacy of 130lm/W, this compact recessed ceiling light combines excellent energy efficiency with contemporary styling, making it suitable for residential and commercial lighting installations.

Featuring CCT switchable technology, the downlight allows you to select between three colour temperatures: 3000K Warm White, 4000K Cool White and 6000K Daylight. This flexibility makes it an excellent choice for kitchens, bathrooms, bedrooms, hallways and other interior spaces where adaptable lighting is required.

The Integral XFire Core features a 60° beam angle for effective light distribution and dimmable functionality for greater control over brightness. Its IP65 rating provides protection against dust and water jets, making it particularly suitable for moisture-prone areas when installed in accordance with applicable regulations.

Designed with installers in mind, this fire-rated downlight incorporates a convenient loop-in/loop-out push-fit connector with a piano-key terminal block for straightforward wiring. The 70mm ceiling cut-out and 85mm brushed nickel bezel offer a neat, professional finish that complements modern interior designs.

Key Features:

• Compact 6W fire-rated LED downlight from the Integral XFire Core range.
• Delivers 780 lumens with excellent luminous efficacy of 130lm/W.
• Three selectable colour temperatures: 3000K Warm White, 4000K Cool White and 6000K Daylight.
• Dimmable functionality for flexible brightness adjustment.
• IP65 ingress protection rating for dust and water resistance.
• 60° beam angle for balanced illumination.
• Premium brushed nickel bezel for a stylish, contemporary appearance.
• 70mm ceiling cut-out diameter for recessed installation.
• 85mm bezel diameter for a clean and professional ceiling finish.
• Loop-in/loop-out push connector with piano-key terminal block for easy wiring.
• Suitable for residential and commercial interior lighting applications.

Technical Specifications:

• Manufacturer: Integral LED
• Product Code: ILDLFR70S003
• Product Range: XFire Core
• Product Type: Fire-Rated LED Downlight
• Power Consumption: 6W
• Luminous Flux: 780lm
• Luminous Efficacy: 130lm/W
• Colour Temperature: 3000K / 4000K / 6000K
• Beam Angle: 60°
• IP Rating: IP65
• Fire-Rated: Yes
• Dimmable: Yes
• Cut-Out Diameter: 70mm
• Bezel Diameter: 85mm
• Bezel Finish: Brushed Nickel
• Connection Type: Loop-in/loop-out push-fit terminal block

Data Sheet:

Click Here for Data Sheet
