Integral ILDLFR70S002 XFire Core 6W CCT Switchable Fire-Rated LED Downlight 780lm IP65 Dimmable - Polished Chrome

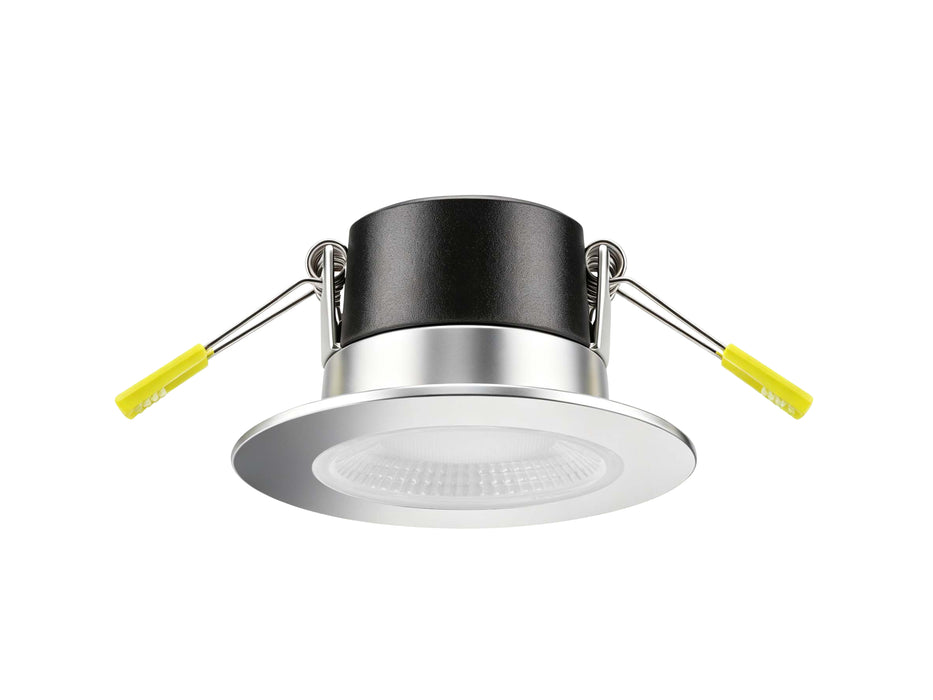

The Integral XFire Core ILDLFR70S002 is a compact, high-performance 6W fire-rated LED downlight featuring an elegant polished chrome bezel. Designed for energy-efficient lighting in residential and commercial spaces, this dimmable downlight delivers 780 lumens with an impressive luminous efficacy of 130lm/W, providing bright illumination with low energy consumption.

Equipped with convenient CCT switchable technology, the downlight offers three selectable colour temperatures: 3000K (Warm White), 4000K (Cool White) and 6000K (Daylight). This flexibility makes it ideal for creating different lighting environments in kitchens, bathrooms, hallways, living rooms and commercial interiors.

With an IP65 rating, the XFire Core downlight offers excellent protection against dust and water jets, making it suitable for moisture-prone environments. Its 60° beam angle ensures effective light distribution, while the polished chrome bezel provides a stylish, contemporary finish.

Installation is straightforward thanks to the integrated loop-in/loop-out push-fit connector with a piano-key terminal block. Designed for a 70mm ceiling cut-out and featuring an 85mm bezel diameter, this fire-rated LED downlight combines practical installation with dependable lighting performance.

Key Features:

• Compact 6W fire-rated LED downlight from the Integral XFire Core range.
• Produces 780 lumens with an energy-efficient output of 130lm/W.
• CCT switchable between 3000K Warm White, 4000K Cool White and 6000K Daylight.
• Dimmable design for adjustable brightness and lighting control.
• IP65 rated for protection against dust and water jets.
• 60° beam angle for effective general and task illumination.
• Stylish polished chrome bezel complements modern interiors.
• 70mm ceiling cut-out with an 85mm bezel diameter.
• Loop-in/loop-out push connector with piano-key terminal block for quick installation.
• Suitable for domestic and commercial lighting applications.

Technical Specifications:

• Manufacturer: Integral LED
• Product Code: ILDLFR70S002
• Product Range: XFire Core
• Product Type: Fire-Rated LED Downlight
• Power Consumption: 6W
• Luminous Flux: 780lm
• Luminous Efficacy: 130lm/W
• Colour Temperature: 3000K / 4000K / 6000K
• Beam Angle: 60°
• IP Rating: IP65
• Fire-Rated: Yes
• Dimmable: Yes
• Cut-Out Diameter: 70mm
• Bezel Diameter: 85mm
• Bezel Finish: Polished Chrome
• Connection Type: Loop-in/loop-out push-fit terminal block

Data Sheet:

Click Here for Data Sheet
