LIVE Electrical TPNH02-100 2 Way Horizontal TPN Distribution Board c/w 100A 4P Switch Disconnector Incomer
LIVE Electrical TPNH02-100 2-Way Horizontal TPN Distribution Board with 100A 4P Switch Disconnector Incomer
Product Overview
The LIVE Electrical TPNH02-100 2-Way Horizontal TPN Distribution Board is engineered for efficient and reliable three-phase power distribution in commercial and industrial environments. Supplied complete with a 100A 4-pole switch disconnector incomer, this unit ensures safe isolation and control of multiple outgoing circuits. The horizontal configuration allows for compact installation where space or accessibility is a key factor.
Constructed from durable steel and finished in epoxy powder coating to RAL 7035, this distribution board offers long-term protection against corrosion and mechanical wear. It is fully compliant with BS EN 61439-3 and BS EN 61439-1 standards, ensuring top-tier electrical safety and performance. Designed for practicality, it includes removable gland plates, full shrouding for live parts, and conveniently positioned earth and neutral terminals for faster installation.
Key Features & Benefits
- Configuration: 2-way horizontal TPN distribution board with 100A maximum incomer capacity.

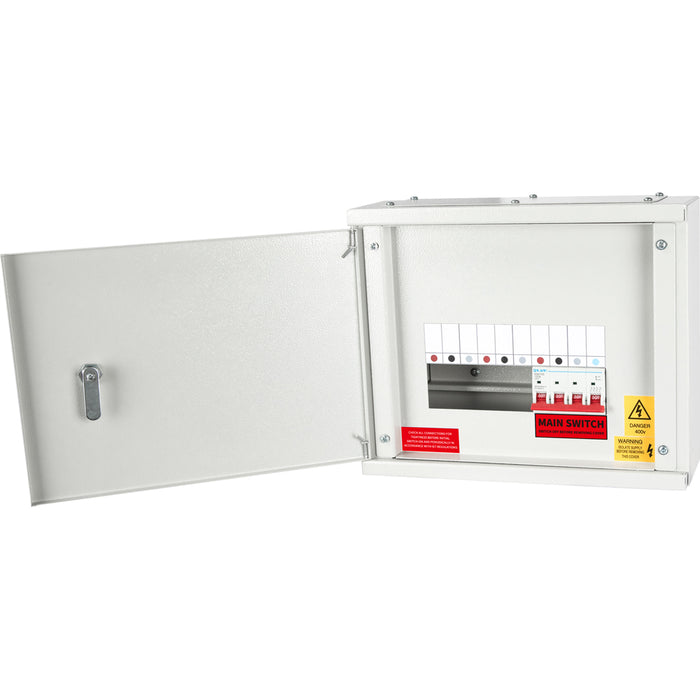

- Incomer: Supplied with 100A 4-pole switch disconnector for safe and reliable isolation.

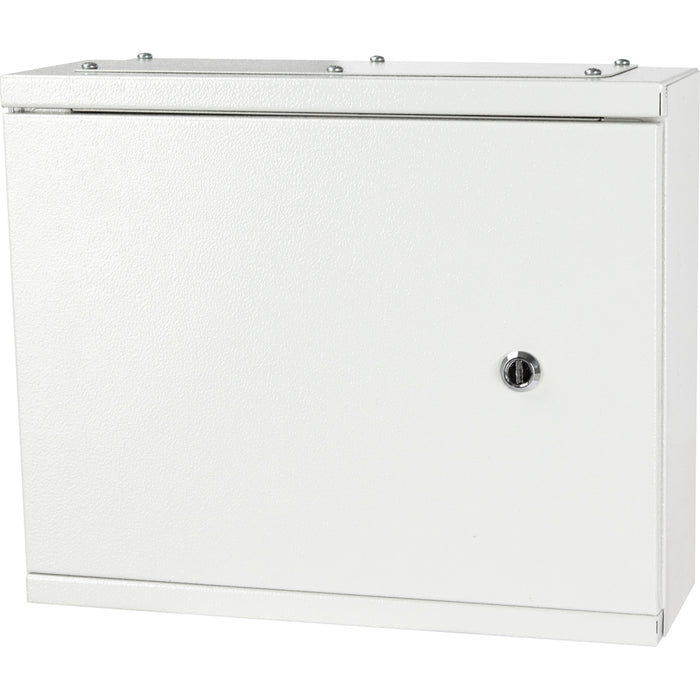

- Construction: Heavy-duty steel enclosure with removable door and gland plate for flexible cable entry.
- Mounting: Keyhole fixing points for quick and secure wall installation.
- Wiring convenience: Earth and neutral terminals positioned adjacent to MCBs/RCBOs to speed up wiring and reduce clutter.
- Safety features: Complete shrouding for main incomer and live links to ensure user protection.
- Finish: Epoxy powder-coated in light grey (RAL 7035) for a modern, corrosion-resistant appearance.
- Standards: Compliant with BS EN 61439-3 and BS EN 61439-1 for electrical safety and reliability.
Typical Applications
- Commercial and industrial electrical installations
- Workshops and manufacturing units
- Warehouse and plant power distribution
- Multi-circuit control and load management
