Crabtree 18MH250LP Loadstar Dual Lighting & Power Meter Kit for 250A 3P+N Distribution Boards

Product Description

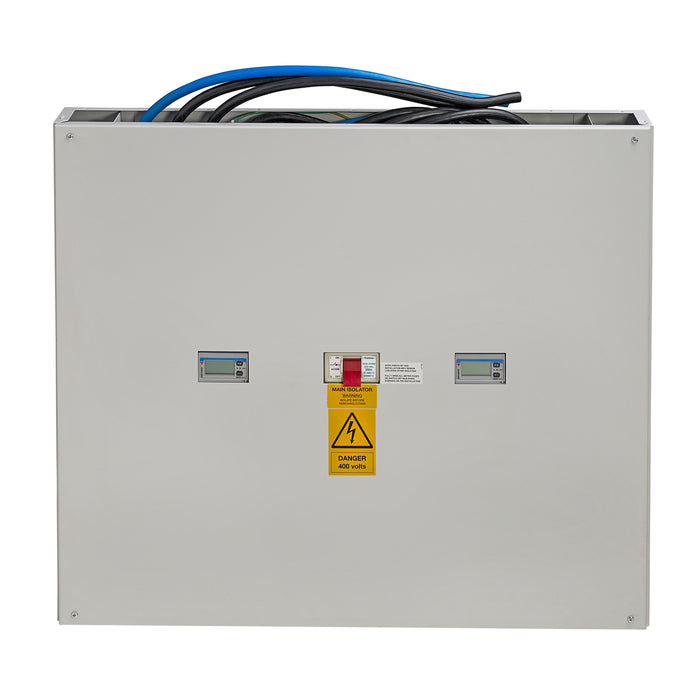

The Crabtree 18MH250LP Loadstar Dual Lighting & Power Meter Kit is a pre-assembled, high-capacity energy metering solution designed for use with 250A 3P+N Crabtree Loadstar distribution boards. It enables separate monitoring of lighting and power circuits, providing greater visibility and control over energy usage in commercial and industrial installations.

This comprehensive add-on assembly is supplied with two digital energy meters, two sets of three current transformers, fuses, and wiring looms, all factory assembled for fast, accurate installation. The kit is designed to mount directly beneath two surface-mounted 250A Type B Loadstar distribution boards.

Key Features & Benefits

• Accessory designed for Crabtree Loadstar distribution boards
• Compatible with 250A 3P+N distribution board configurations
• Pre-assembled dual metering solution for lighting and power circuits
• Supplied with two digital energy meters for independent load monitoring
• Includes two sets of three current transformers for accurate measurement
• Add-on assembly mounts directly beneath two surface 250A Type B distribution boards
• Pulsed output for external monitoring systems
• Modbus RTU communication for BMS and energy management integration
• Provides separate lighting and power load readings
• Total power consumption calculated by combining both section measurements

Applications

Ideal for commercial buildings, industrial sites, and multi-occupancy premises where separate energy monitoring of lighting and power circuits is required for cost allocation, efficiency analysis, and energy management.

Technical Documentation

Data Sheet:
Click here to download the data sheet
