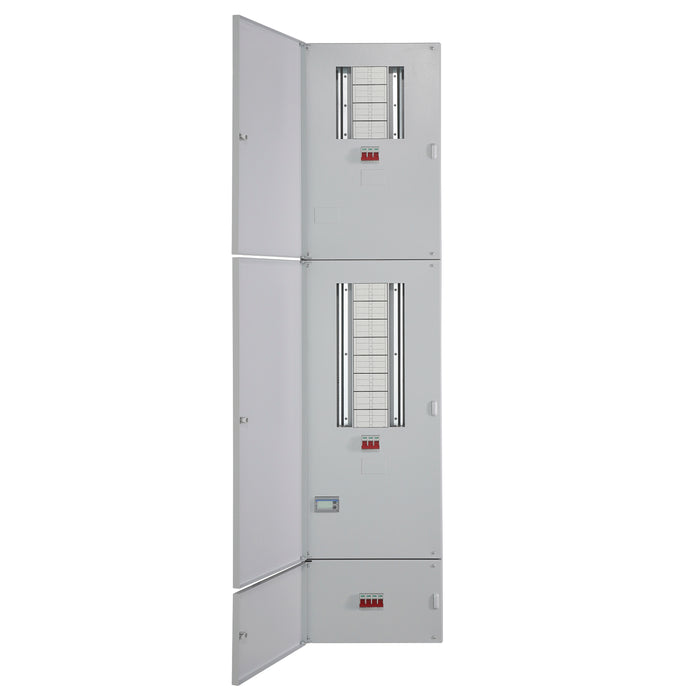

Crabtree 18LPV1608SL Loadstar Vertical 125A TP&N Lighting & Power Board 16+8 Way Pulsed Output / Modbus

Product Description

The Crabtree 18LPV1608SL Loadstar Vertical Lighting & Power Distribution Board is a 125A TP&N commercial distribution solution designed for installations requiring high power circuit capacity alongside a dedicated lighting section. Featuring a 16-way power section and an 8-way lighting section, this board provides flexibility and scalability for larger commercial and multi-occupancy environments.

Supplied complete with a switch disconnector and an integrated two-channel pulsed output / Modbus RTU energy meter, the board supports compliance with Building Regulations Part L2 while delivering clear and actionable energy usage data for property managers, consultants, and facilities teams.

Key Features & Benefits

• 125A TP&N vertical lighting and power distribution board
• 16-way power and 8-way lighting configuration
• Designed for commercial applications supporting Part L2 compliance
• Supplied with switch disconnector for safe isolation
• Integrated two-channel pulsed output and Modbus RTU energy meter
• Accepts Crabtree Loadstar 10kA final circuit protection devices
• Compatible with single pole and triple pole Type B, C and D MCBs (6A–63A)
• Compatible with single pole Type B and C RCBOs (6A–50A)
• Individual isolation for top and bottom sections, each fully rated at 125A
• Durable RAL 7035 grey powder-coated finish
• Designed and manufactured in the UK to BS EN 61439-3

Applications

Ideal for large commercial buildings, multi-occupancy developments, and managed properties where a higher number of power circuits is required alongside separate lighting distribution and integrated energy monitoring.

Technical Documentation

Data Sheet:
Click here to download the data sheet
