Crabtree 18LPV0808SL Loadstar Vertical 125A TP&N Lighting & Power Board 8+8 Way Pulsed Output / Modbus

Product Description

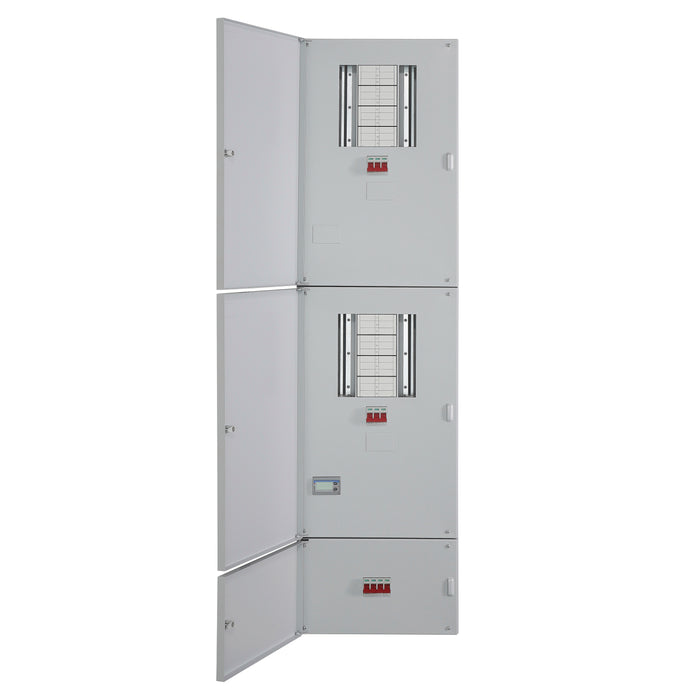

The Crabtree 18LPV0808SL Loadstar Vertical Lighting & Power Distribution Board is a 125A TP&N commercial distribution solution designed for installations requiring equal capacity for lighting and power circuits. Featuring an 8-way power section and an 8-way lighting section, this board is ideal for managed buildings where circuit balance and energy monitoring are essential.

Supplied complete with a switch disconnector and an integrated two-channel pulsed output / Modbus RTU energy meter, the board supports compliance with Building Regulations Part L2 while providing clear and accessible energy consumption data for property managers and facilities teams.

Key Features & Benefits

• 125A TP&N vertical lighting and power distribution board
• 8-way power and 8-way lighting configuration
• Designed for commercial applications supporting Part L2 compliance
• Supplied with switch disconnector for safe isolation
• Integrated two-channel pulsed output and Modbus RTU energy meter
• Accepts Crabtree Loadstar 10kA final circuit protection devices
• Compatible with single pole and triple pole Type B, C and D MCBs (6A–63A)
• Compatible with single pole Type B and C RCBOs (6A–50A)
• Individual isolation for top and bottom sections, each fully rated at 125A
• Durable RAL 7035 grey powder-coated finish
• Designed and manufactured in the UK to BS EN 61439-3

Applications

Suitable for commercial buildings, multi-occupancy developments, and managed properties where equal distribution of lighting and power circuits is required alongside integrated energy monitoring and compliance with current building regulations.

Technical Documentation

Data Sheet:
Click here to download the data sheet
