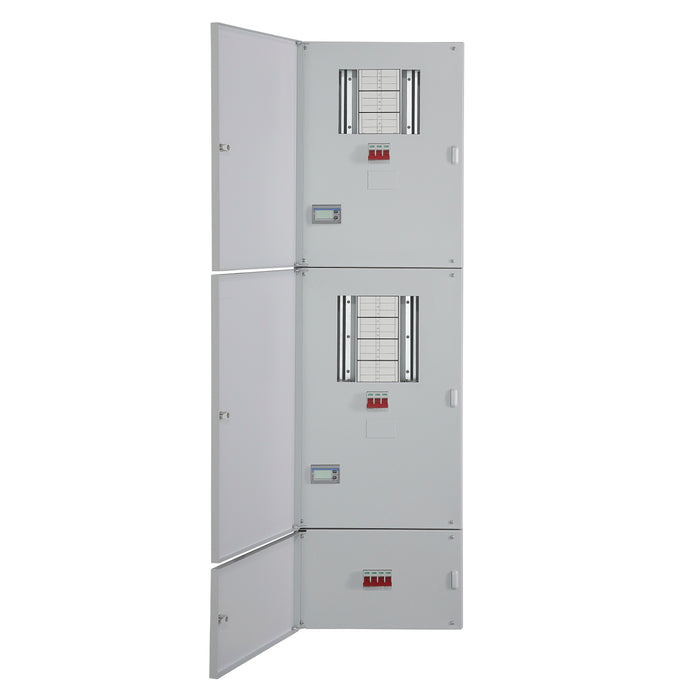

Crabtree 18LPV0806ML Loadstar Vertical 125A TP&N Lighting & Power Board 8+6 Way (MID)

Product Description

The Crabtree 18LPV0806ML Loadstar Vertical Lighting & Power Distribution Board is a 125A TP&N commercial distribution solution featuring MID certified metering for accurate and compliant energy monitoring. With an 8-way power section and a 6-way lighting section, this board is ideal for applications where energy usage must be measured for billing or tenant cost allocation.

Supplied complete with a switch disconnector and two MID certified energy meters, the board supports compliance with Building Regulations Part L2 and provides precise, legally compliant energy data for property managers, consultants, and facilities teams.

Key Features & Benefits

• 125A TP&N vertical lighting and power distribution board
• 8-way power and 6-way lighting configuration
• Dual MID certified meters for compliant energy measurement
• Designed for commercial applications supporting Part L2 compliance
• Supplied with switch disconnector for safe isolation
• Accepts Crabtree Loadstar 10kA final circuit protection devices
• Compatible with single pole and triple pole Type B, C and D MCBs (6A–63A)
• Compatible with single pole Type B and C RCBOs (6A–50A)
• Individual isolation for top and bottom sections, each fully rated at 125A
• Durable RAL 7035 grey powder-coated finish
• Designed and manufactured in the UK to BS EN 61439-3

Applications

Ideal for commercial buildings, multi-occupancy developments, and landlord-managed properties where MID approved metering is required for accurate billing, monitoring, and regulatory compliance.

Technical Documentation

Data Sheet:
Click here to download the data sheet
