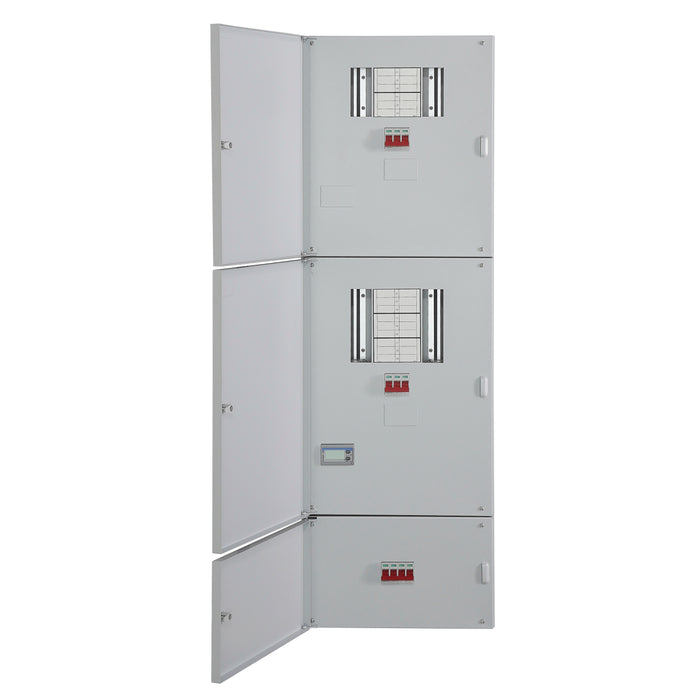

Crabtree 18LPV0604SL Loadstar Vertical 125A TP&N Lighting & Power Board 6+4 Way Pulsed Output / Modbus

Product Description

The Crabtree 18LPV0604SL Loadstar Vertical Lighting & Power Distribution Board is a 125A TP&N commercial-grade solution designed to support energy monitoring and regulatory compliance in modern electrical installations. Featuring a 6-way power and 4-way lighting configuration, this vertical board is ideal for applications requiring separate circuit control and energy measurement.

Supplied complete with a switch disconnector and an integrated two-channel pulsed output / Modbus RTU energy meter, the board allows straightforward installation and convenient access to energy usage data, supporting compliance with Building Regulations Part L2.

Key Features & Benefits

• 125A TP&N vertical lighting and power distribution board
• 6-way power and 4-way lighting configuration
• Designed for commercial installations and Part L2 compliance
• Supplied with switch disconnector for safe isolation
• Integrated two-channel pulsed output and Modbus RTU energy meter
• Accepts Crabtree Loadstar 10kA final circuit protection devices
• Compatible with single pole and triple pole Type B, C and D MCBs (6A–63A)
• Compatible with single pole Type B and C RCBOs (6A–50A)
• Individual isolation for top and bottom sections, each fully rated at 125A
• Durable RAL 7035 grey powder-coated finish
• Designed and manufactured in the UK to BS EN 61439-3

Applications

Suitable for commercial buildings, multi-occupancy developments, and managed properties where separate lighting and power distribution is required alongside integrated energy monitoring and compliance with current building regulations.

Technical Documentation

Data Sheet:
Click here to download the data sheet
