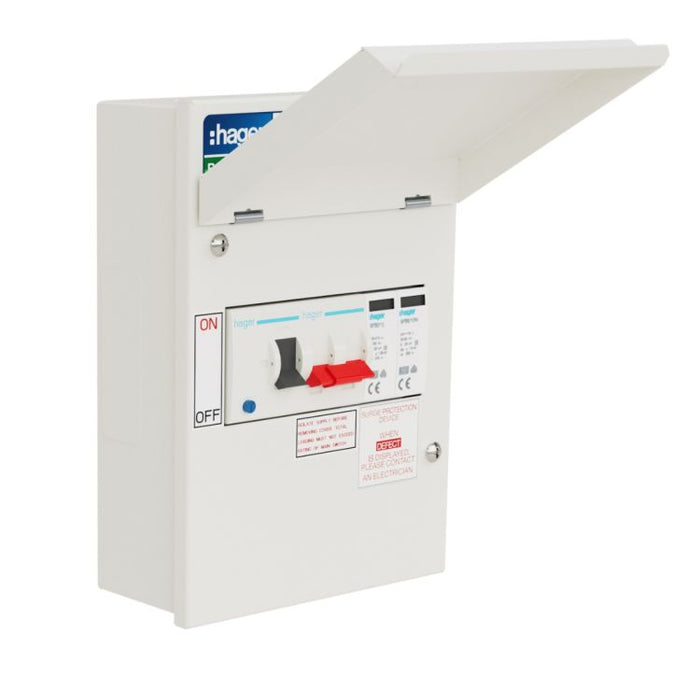

Hager VR640EVSPD 6 Way EV Consumer Unit 100A Main Switch with 40A DP Switch Neutral RCBO+Type 2 SPD
SKU VR640EVSPD
Availability:
Dispatch in 2-3 Days
Original price
£94.80
-
Original price
£94.80
Original price
£94.80
Inc VAT
£79.00
Exc VAT
£94.80
-
£94.80
Current price
£79.00
£79.00
-
£79.00
Current price
£79.00
Hager VR640EVSPD 6 Way EV Consumer Unit 100A Main Switch with 40A DP Switch Neutral RCBO+Type 2 SPD
The unit is designed to be installed before the consumer unit or distribution board on an installation fed from the mains supply into the top of the 100A switch with the supply to the car charger/ load being fed from the top of the RCBO. The main earthing conductor is also connected into and out of the earth terminal on the earth bar within the enclosure.
Fitted with a 100A Swith disconnector with 40A RCBO. the RCBO has an InA of 36A for continuous 7.5kW EV charging.
SPD version protects the installation against transient overvoltages.
- RCBO rated at 36A for continuous loading for a 3.6kW or 7.5kW power rating
- Ideal when requiring Supply to Electric Vehicle charger
- Protects the installation against transient overvoltages.(SPD version)
- End of life indicator on Line cartridge gives indication when replacement is required.(SPD version)
- No space required inside existing consumer unit or distribution board.
Data Sheet:
Click Here for Data SheetInstruction Manual:
Click Here for Instruction Manual
